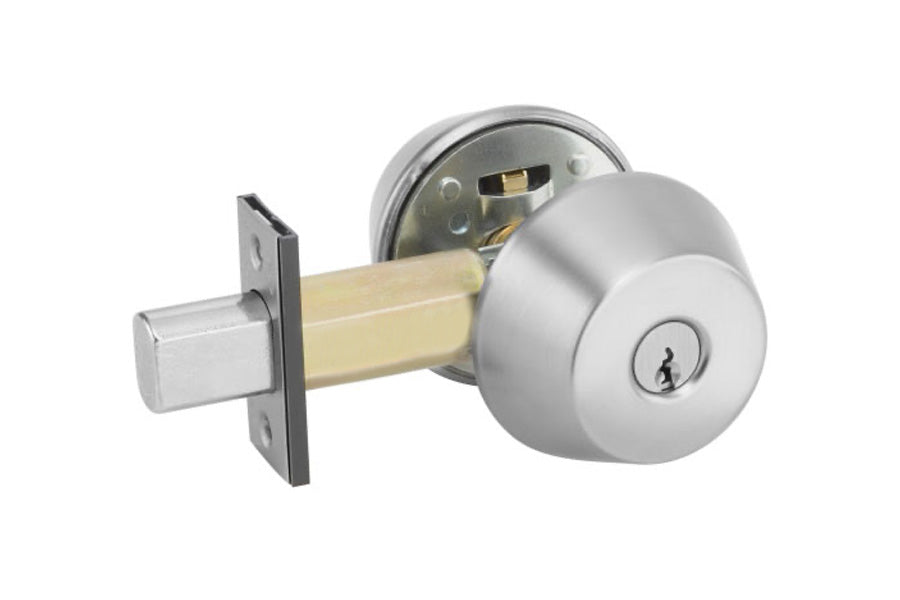

Accentra (Formerly Yale) D222 Medium Duty Double Cylinder Deadbolt

ASSA ABLOY ACCENTRA® D200 series are Certified Grade 2 deadbolts that are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required.

Features

• Engineered for strength and durability in commercial applications
• Variety of cylinder types available, including fixed core or interchangeable
• Deadbolt operated by key outside, key inside
• ANSI/BHMA Certified Grade 2

Benefits

• Strength and security
• 1-year mechanical warranty
• UL-cUL Listed

Specifications

• Backset:  2-3/4"
• Door Thickness:  1-3/8" to 1-3/4"
• Cylinder:  6-pin
• Keyway:  Schlage "C"
• Strike:  1-1/8” x 2-3/4“ square corner
• Bolt:  1" throw bolt, 1-1/8" x 2-1/4" square corner face plate
• Usage:  Medium Duty

References

1. Technical Specification
2. Installation Instructions
