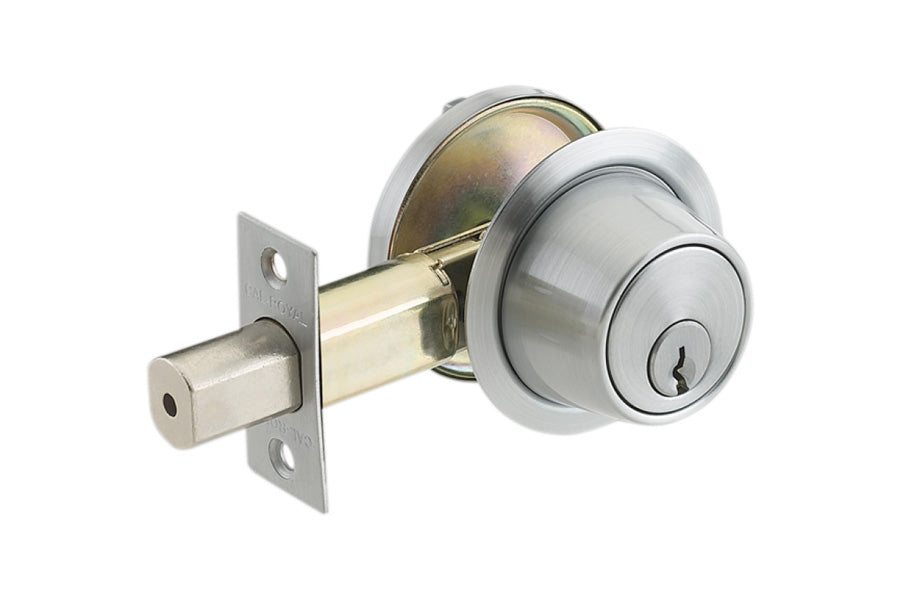

Cal-Royal CB160 Series Commercial Deadbolt

Grade 2 Standard Duty Gate Latches for Commercial & Residential Applications

• Conforms with ANSI A156.36 Series 4000, Standard Duty GRADE 2
• Lifetime Warranty
• Solid brass 6-Pin “C” keyway cylinder, optional other keyways
• ADA (American Disability Act) Ergonomic Thumbturn
• Tapered cylinder guard and metal insert, turns free with any removal attempt
• Adjustable latch bolt

Features

• TRIM: Wrought Brass or Stainless Steel.
• DOOR RANGES: Adjustable 1 ⅜” (35mm) to 1 ¾” (45mm) door thickness.
• BACKSET: Adjustable 2 ⅜” or 2 ¾”.
• DEADBOLT FACEPLATE: Latchbolt- Standard 2 ¼” X 1” packed with ⅛” plastic filler to convert 1” face plate to 1 ⅛” wide door preparations.
• BORE DIAMETER: 1” for latch, 1 ½” or 2 ⅛” for lock housing.
• STRIKE: 1 ⅛” X 2 ¾” square corner.
• KEYWAYS: Standard 6-pin solid brass “C” keyway. Optional Schlage C-K composite with “E” keys, Schlage “E”, Russwin D1-2-3-4, Corbin 59/60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon/Weiser E, Kwikset, Arrow A, Yale GA and Yale 8.
