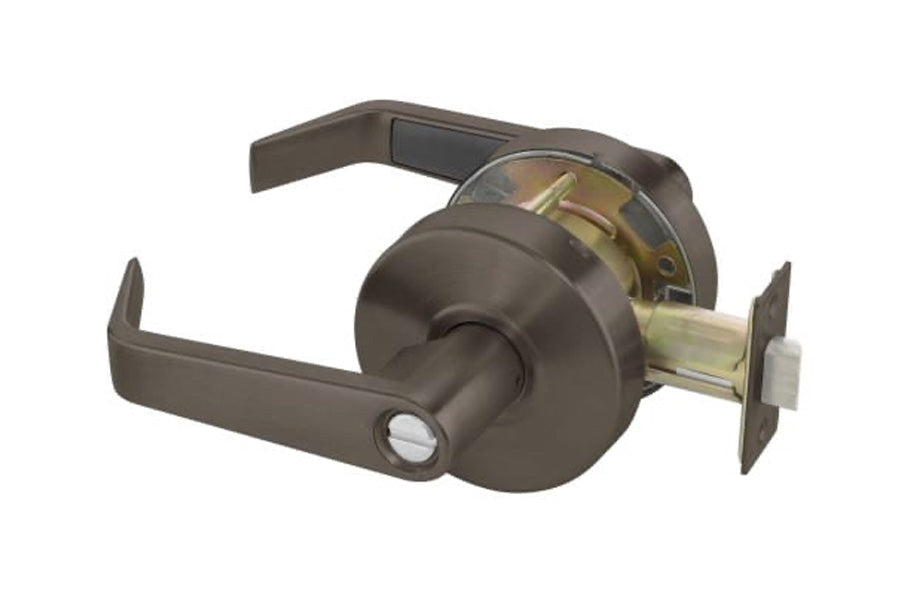

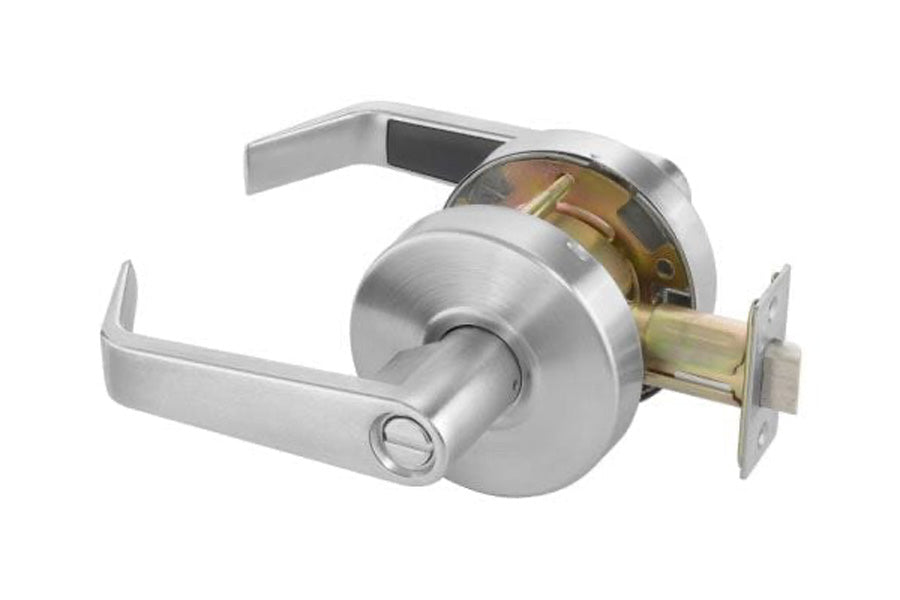

Accentra (Formerly Yale) 4602LN Trim Design Grade 1 Medium-Duty Privacy Cylindrical Lockset

ASSA ABLOY ACCENTRA® 4600LN cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price. The 4600LN Series is certified to ANSI/BHMA Grade 2 standards and is UL fire-listed for all functions, ensuring reliability and peace of mind.

Features

• Field reversible handing for easy installation
• Range of functions and other options for a wide variety of commercial applications
• ADA compliant for ease of accessibility
• UL/cUL fire rated up to 3-hours
• For lavatory or other privacy doors
• Either lever operates latchbolt unless outside lever is locked by pushbutton inside
• Button automatically releases when inside lever is turned or door is closed
• Emergency release in outside lever
• Inside lever always active

Benefits

• Field reversible handing and other product options offer flexibility in many commercial applications
• Certified Grade 2, ANSI/BHMA A156.2, Series 4000
• Windstorm Certified (refer to local codes)


• 3-year mechanical warranty

Specifications

• ANSI Function F76:  Privacy Bath/Bedroom
• Backset:  2-3/4"
• Door Thickness:  1-3/8" to 1-3/4"
• Latch:  1/2” throw, deadlocking – 1-1/8" x 2-1/4" face
• Keyway:  Schlage C
• Cylinder Pin:  6-Pin

• Strike:  4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
