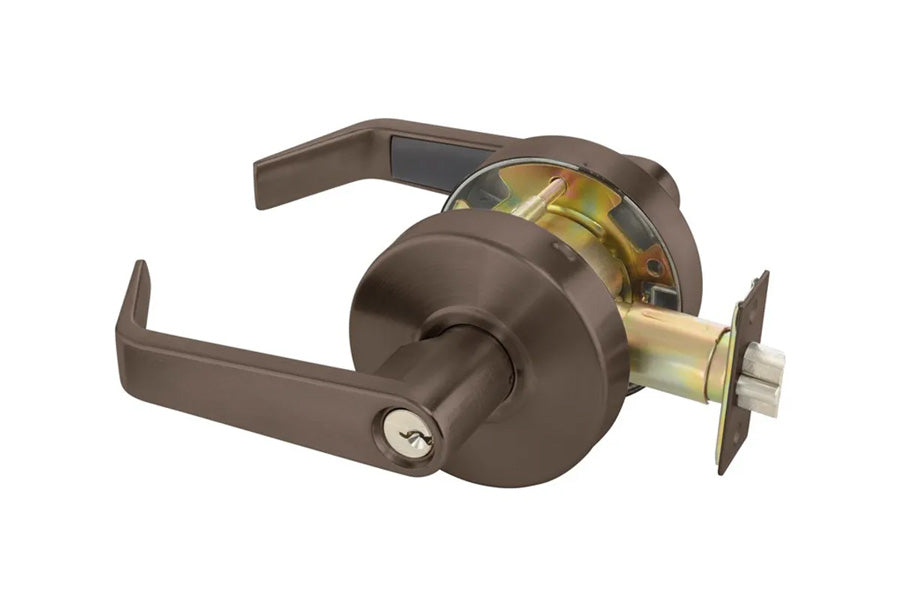

Accentra (Formerly Yale) 4607LN Grade 1 Medium-Duty Entrance Cylindrical Lockset

ASSA ABLOY ACCENTRA® 4600LN cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price. The 4600LN Series is certified to ANSI/BHMA Grade 2 standards and is UL fire-listed for all functions, ensuring reliability and peace of mind.

Features

• Field reversible handing for easy installation
• Range of functions and other options for a wide variety of commercial applications
• ADA compliant for ease of accessibility
• UL/cUL fire rated up to 3-hours
• For entrance, general home or office doors
• Deadlocking latchbolt
• Either lever operates latchbolt (except when outside lever is locked from inside)
• Pushing turn button in inside lever locks outside lever. (Automatically releases when inside lever is turned or key is rotated in locked outside lever.)
• Outside lever may be retained in locked position by pushing and rotating turn button 90° clockwise to a horizontal position; not released until turn button is manually returned to the vertical position
• Latchbolt is operated by key in outside lever or by rotating inside lever
• Inside lever always active

Benefits

• Field reversible handing and other product options offer flexibility in many commercial applications
• Certified Grade 2, ANSI/BHMA A156.2, Series 4000
• Windstorm Certified (refer to local codes)


• 3-year mechanical warranty

Specifications

• ANSI Function F109:  Entrance/Office
• Backset:  2-3/4"
• Door Thickness:  1-3/8" to 1-3/4"
• Latch:  1/2” throw, deadlocking – 1-1/8" x 2-1/4" face
• Keyway:  Schlage C
• Cylinder Pin:  6-Pin

• Strike:  4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

References

• Technical Specification
• Installation Instructions
