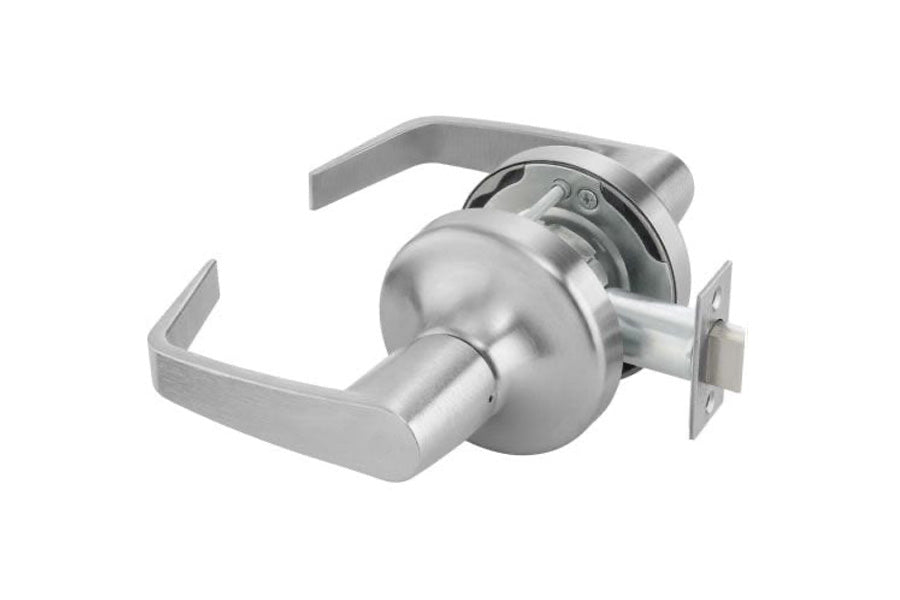

Accentra (Formerly Yale) 4703LN Augusta Trim Design Grade 1 Heavy-Duty Patio Cylindrical Lockset

ASSA ABLOY ACCENTRA® 4700LN cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price. The 4700LN series is certified to ANSI/BHMA Grade 1 standards and is UL fire-listed for all functions ensuring reliability and peace of mind.

Features

• Free wheeling lever mechanism prevent vandalism
• certified for strength and durability
• Available with MicroShield antimicrobial coating
• ADA compliant for ease of accessibility
• UL/cUL fire rated up to 3-hours
• For lavatory or other privacy doors
• Either lever operates latchbolt unless outside lever is locked by pushbutton inside.*
• Button automatically releases when inside lever is turned or door is closed
• Emergency key inserted and turned in hole in outside lever will unlock door from outside. (Emergency key furnished with lockset. P/N 14-5302-1053- 048)
• Inside lever always active

* Lever handles are Free-Wheeling in locked position.

Benefits

• Designed to withstand everyday use and resist damage and vandalism
• Variety of functions, trims, finishes and keying options for ultimate installation flexibility
• Certified ANSI/BHMA A156.2, Series 4000 Grade 1
• Windstorm Certified (refer to local codes)


• 5-year mechanical warranty

Specifications

• ANSI Function F77A:  Patio or Privacy Lock
• Backset:  2-3/4"
• Door Thickness:  1-3/8" to 1-3/4"
• Latch:  1/2” throw, deadlocking – 1-1/8" x 2-1/4" face
• Keyway:  Schlage C
• Cylinder Pin:  6-Pin

• Strike:  4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

References

1. Technical Specification
2. Installation Instructions
