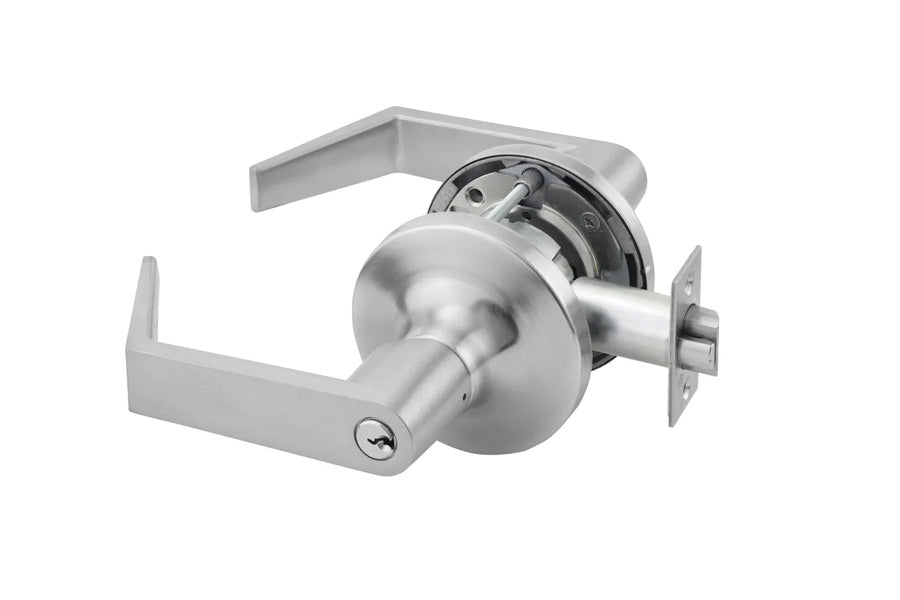

Accentra (Formerly Yale) 5407LN Augusta Trim Design Grade 1 Heavy-Duty Entry Cylindrical Lockset

The ASSA ABLOY ACCENTRA® 5400LN Series heavy-duty cylindrical lockset Series is designed for industrial and commercial use and offers no compromise when it comes to rugged reliability and performance.

Features

• Heavy-duty construction provides strength and durability
• Free wheeling lever for vandal resistance
• Adjustable rose support plates
• ADA compliant for ease of accessibility
• UL/cUL fire rated up to 3-hours
• For entrance, general home or office doors.
• Deadlocking latchbolt
• Either lever operates latchbolt (except when outside lever is locked from inside)*
• Pushing turn button in inside lever locks outside lever, and automatically releases when inside lever is turned or key is rotated in locked outside lever
• Outside lever may be retained in locked position by pushing and rotating turn button 90° clockwise to a horizontal position; not released until turn button is manually returned to the vertical position
• Latchbolt is operated by key in outside lever or by rotating inside lever
• Inside lever always active

*Lever handles are Free Wheeling in locked position.

Benefits

• Rugged construction offers greater reliability and resists wear-and-tear
• Easy installation with adjustable rose allows for easy adjustment on different door thicknesses
• Certified Grade 1, ANSI/BHMA A156.2
• Windstorm Certified (refer to local codes)


• 7-year mechanical warranty

Specifications

• ANSI Function F109:  Entry
• Backset:  2-3/4"
• Door Thickness:  1-3/8" to 1-3/4"
• Latch:  1/2” throw, deadlocking – 1-1/8" x 2-1/4" face
• Keyway:  Schlage C
• Cylinder Pin:  6-Pin, 7-Pin

• Strike:  4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
