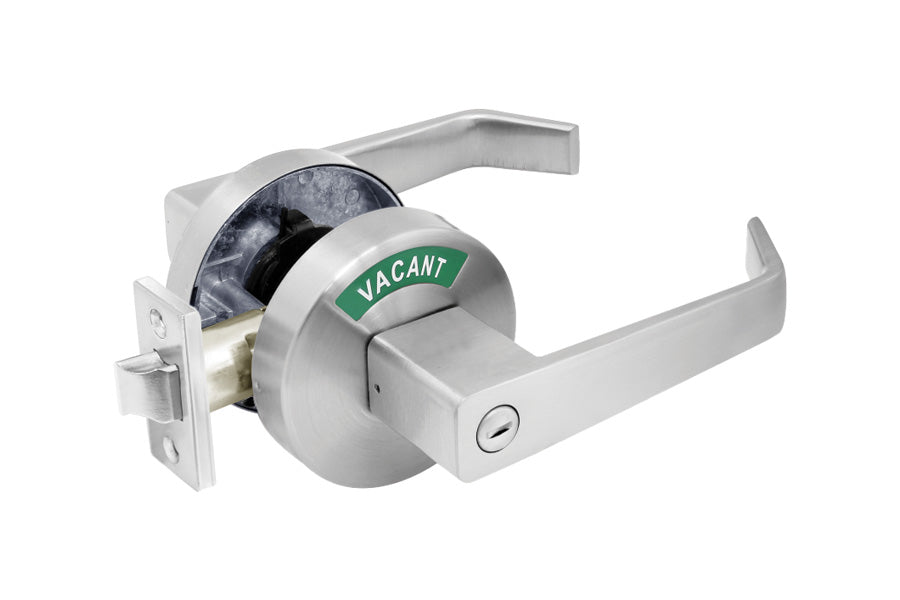

Cal-Royal INDLEV-20 Privacy Indicator Commercial Leverset

INDLEV-20 Series, Light Commerical Grade Privacy Indicator Leverset

Features

• For offices, schools, hospitals, commercial/public buildings, and single stall public restrooms
• Stainless Steel Rose Cover and Aluminum Lever
• Door Ranges: Adjustable 1-3/8" (35mm) to 1-3/4" (45mm) door thickness.

• Packed standard with both 2-3/8" and 2-3/4" backset
• Standard 2-1/4" x 1" packed with 1-1/8" plastic filler to convert 1" faceplate to 1-1/8" wide door preparations
• Bore Diameter: 1" for latch, 2-1/8" for lock housing
• Strike:  ASA478 ANSI Strike Standard
• Has an emergency slot on the outside trim to unlock the door in case of emergency
• Reversible for left and right door application
• Easy installation

References

1. Installation Instruction and Template
