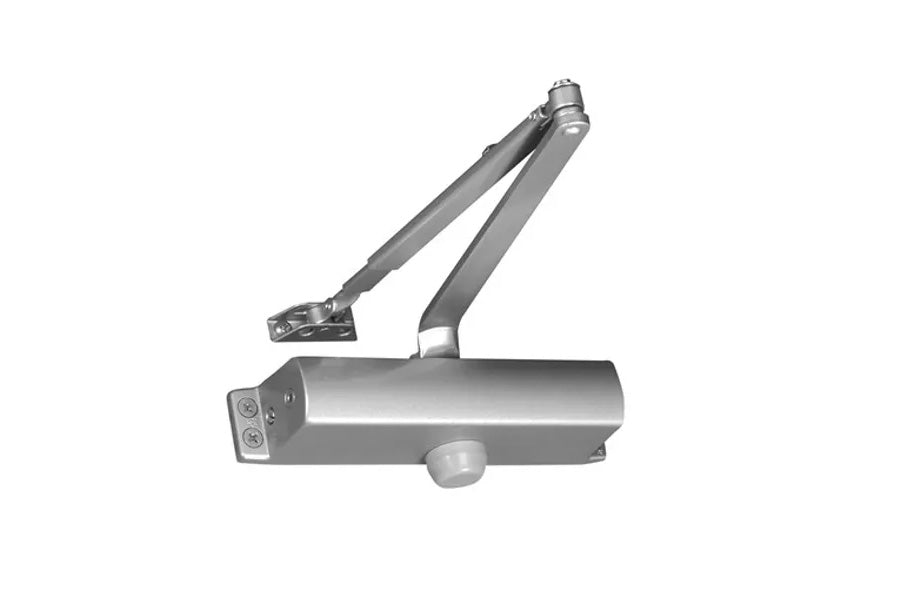

Accentra (formerly Yale) 1104BC Standard Duty Door Closer with Backcheck, Non-Hold Open

The 1100 Series is ideal for a wide variety of commercial applications where ease of use and installation are required while remaining cost-effective. This door closer features rugged construction, adjustments for closing and latch speed, and rack and pinion operation.

Features

• 1104BC (non-hold open) door closers are spring size 4
• Aluminum body
• Full rack and pinion
• Tri-packed (regular arm, top jamb, and parallel arm mounting)
• Adjustable backcheck valve
• Adjustable closing speed valve
• Adjustable latching speed valve
• Auxiliary door stop required
• Non-handed
• Plastic Cover

Benefits

• Accessible:  Tri-packed closer allows installation of multiple applications
• Economical:   5-year limited warranty; Longer life results in fewer replacements and less material used
• Customizable:  Non-handed for right or left hand installation; Adjustable 1-4 or size 4 models available

Specifications

• ANSI/BHMA Standard:  Certified ANSI/BHMA A156.4, Grade 1
• Door Thickness:  1-3/4"
• Templating (Hole Pattern):  3/4" x 9-1/16"
• Mounting Options:  Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)
• Spring Size:  Adjustable Spring Size 1-4
• ADA Compliance:  Meets ADA requirements – A117.1 Accessibility Code
• Cover:  Full Cover
• Door Application:  Hollow Metal, Wood or Aluminum
• Body Construction:  Cast Aluminum Body
• Fire Rating:  UL Listed – UL10c compliant for positive pressure
• Usage:  Standard Duty
• Warranty:  5 Years

References

1. Technical Specification
2. Installation Instructions
