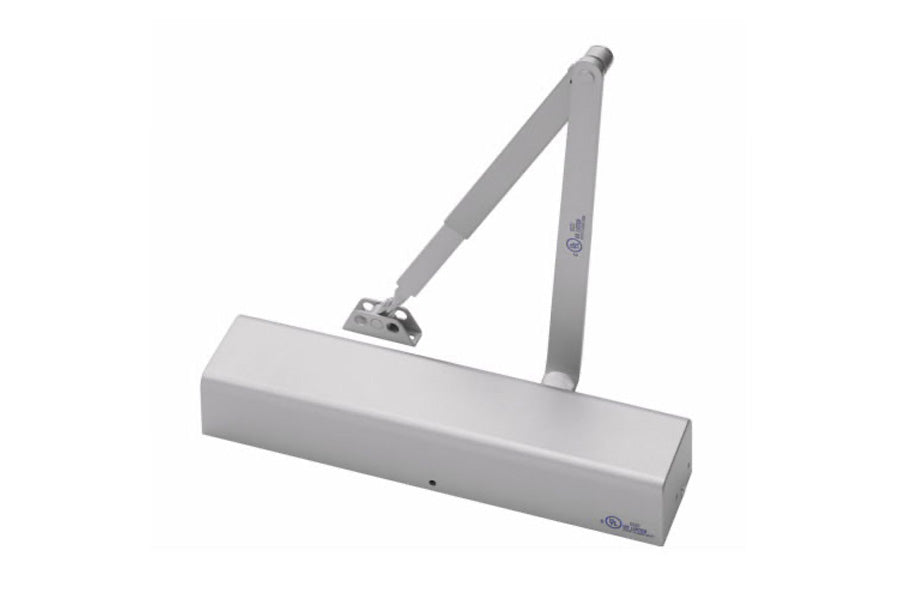

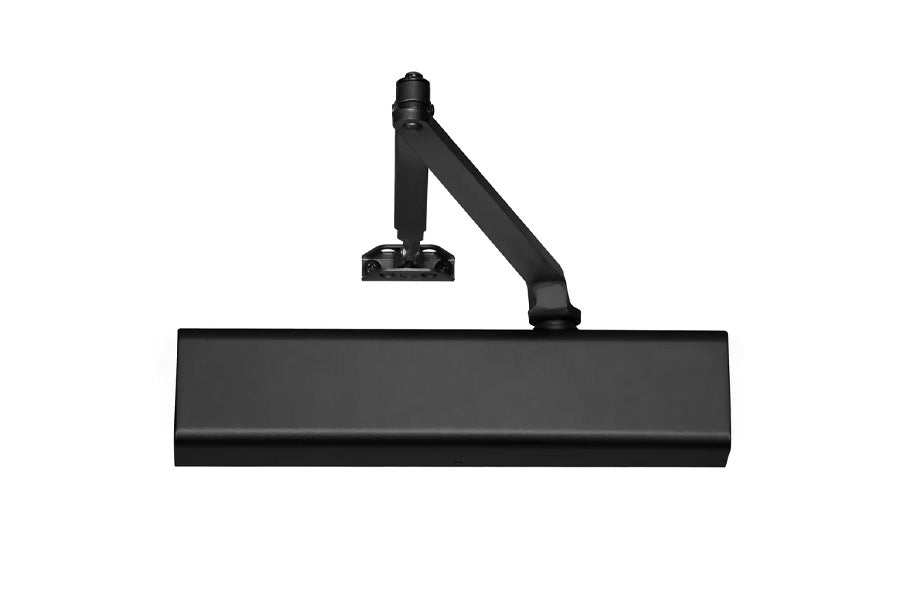

Accentra (Formerly Yale) 2701 Medium Duty Door Closer

The 2700 Series is ideal for commercial applications where ease of use, installation, and aesthetics are required while remaining cost-effective. This door closer features rugged construction, adjustments for backcheck, closing and latch speed, rack and pinion operation, and a variety of arm options.

Features

• Cast aluminum body
• Adjustable heavy-duty spring sizes 1-6
• Standard and heavy-duty arms available as hold open or non-hold open
• Tri-packed (regular arm, top jamb, and parallel arm mounting)
• Sleeves nuts and bolts provided with each other
• Optional fasteners:  through-bolts and grommet nuts
• Non-handed
• Plastic Cover

Benefits

• Accessible:  Rugged construction allows for ease of use and installation; Tri-packed closer allows installation of multiple applications
• Economical:   10-year limited warranty; Longer life results in fewer replacements and less material used
• Customizable:  Non-handed for right or left hand installation; Adjustable 1-6 spring simplifies installation; Adjustments for backcheck, closing and latch speed, rack and pinion operation; Variety of arm options

Specifications

• ANSI/BHMA Standard:  Certified ANSI/BHMA A156.4, Grade 1
• Door Thickness:  1-3/4"
• Templating (Hole Pattern):  3/4" x 12"
• Mounting Options:  Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)
• Spring Size:  Adjustable Spring Size 1-6
• ADA Compliance:  Meets ADA requirements – A117.1 Accessibility Code
• Cover:  Full Cover
• Door Application:  Hollow Metal, Wood or Aluminum
• Body Construction:  Cast Aluminum Body
• Fire Rating:  UL Listed – UL10c compliant for positive pressure
• Usage:  Medium Duty
• Warranty:  10 Years Limited

References

1. Technical Specification
2. Installation Instructions
