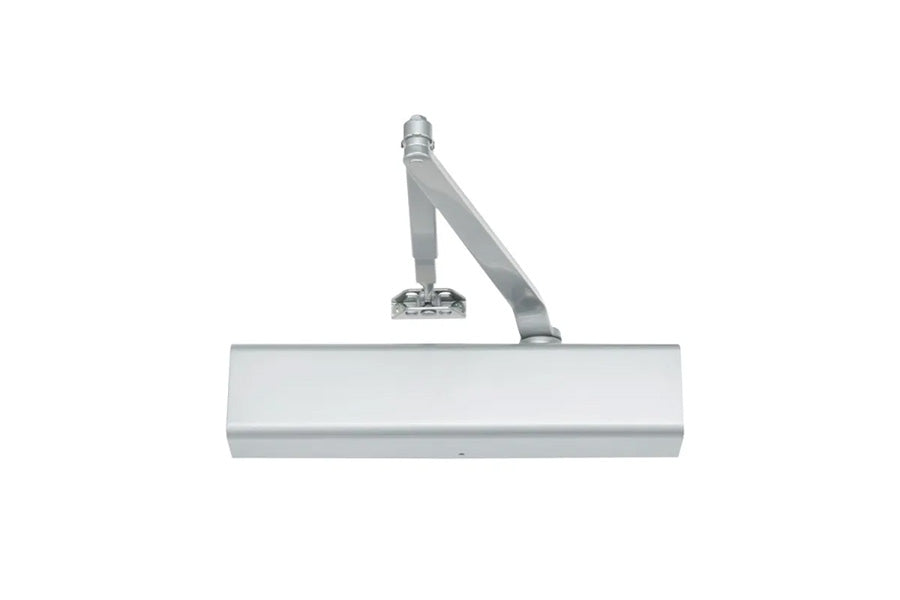

Accentra (formerly Yale) 3501 Medium Duty Door Closer

The 3000 Series offers the perfect combination of reliability, aesthetics, and durability in today's market. With features such as staked valves, self-drilling/self-tapping screws, rack and pinion design and precise valve adjustment, and a complete range of arm and cover options, this door closer can meet virtually any application challenge.

Features

• Adjustable Spring Size 1-6
• Cast Aluminum body and threaded adjustable arm
• Full rack and pinion
• Non-Handed
• Tri-packed (regular arm, top jamb, and parallel arm mounting)
• Separate and independent latch, sweep, and backcheck intensity valves

Benefits

• Slim Profile:  Seamless design blends into any building's aesthetics
• Strong and Durable:  ANSI/BHMA Grade 1 certified for long life and reliability

Specifications

• ANSI/BHMA Standard:  Certified ANSI/BHMA A156.4, Grade 1
• Door Thickness:  1-3/4"
• Templating (Hole Pattern):  3/4" x 12"
• Mounting Options:  Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)
• Spring Size:  Adjustable Spring Size 1-6
• ADA Compliance:  Meets ADA requirements – A117.1 Accessibility Code
• Cover:  Full Cover
• Door Application:  Hollow Metal, Wood or Aluminum
• Body Construction:  Cast Aluminum Body
• Fire Rating:  UL Listed – UL10c compliant for positive pressure
• Usage:  Medium Duty
• Warranty:  30-year limited warranty
