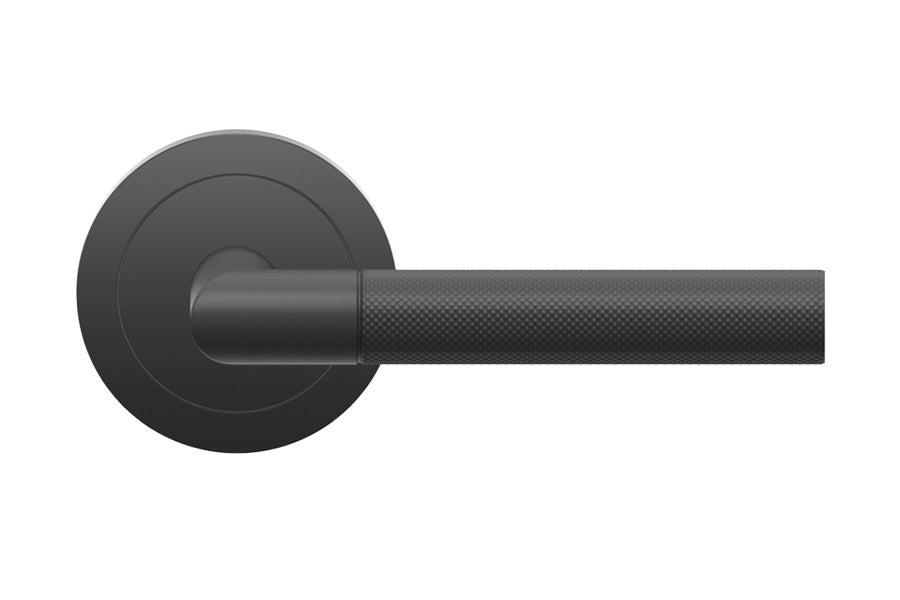

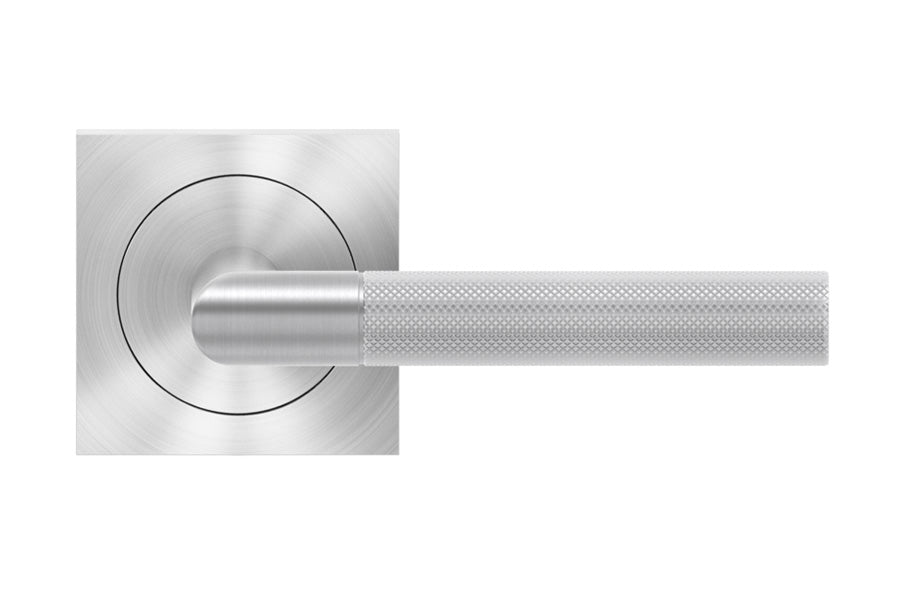

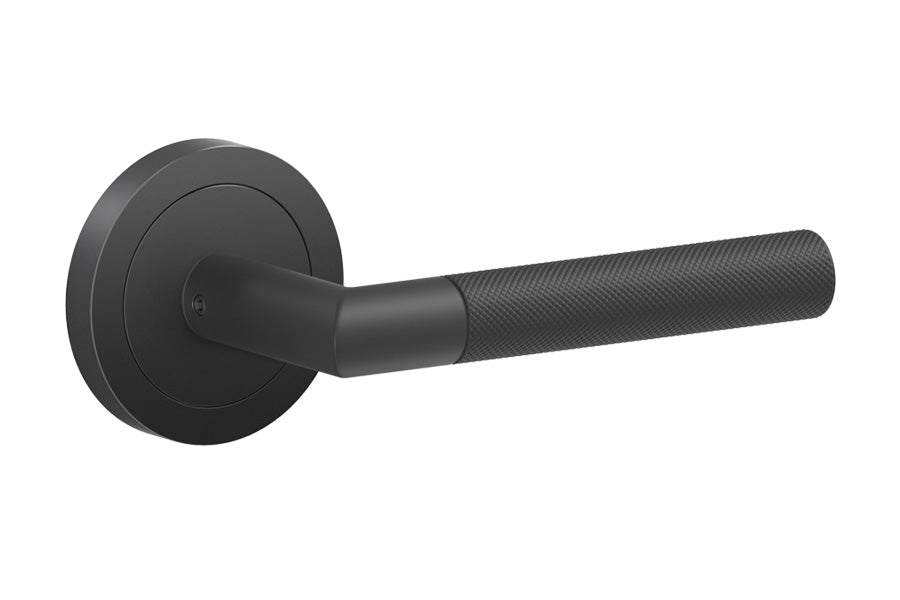

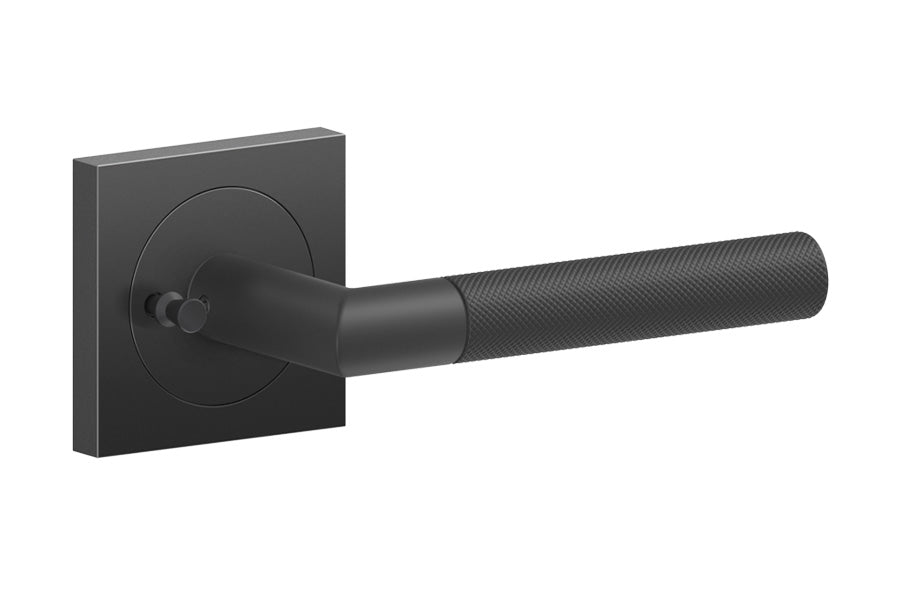

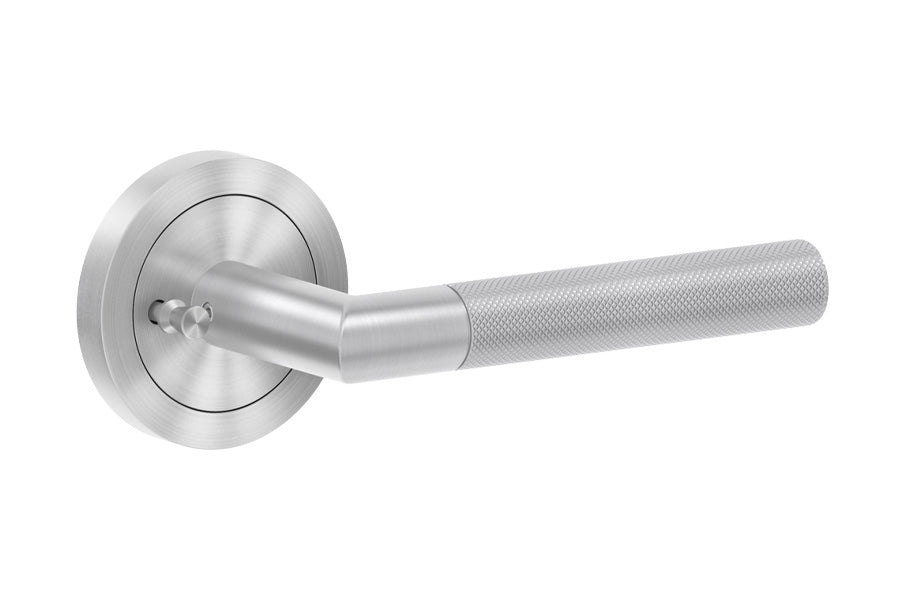

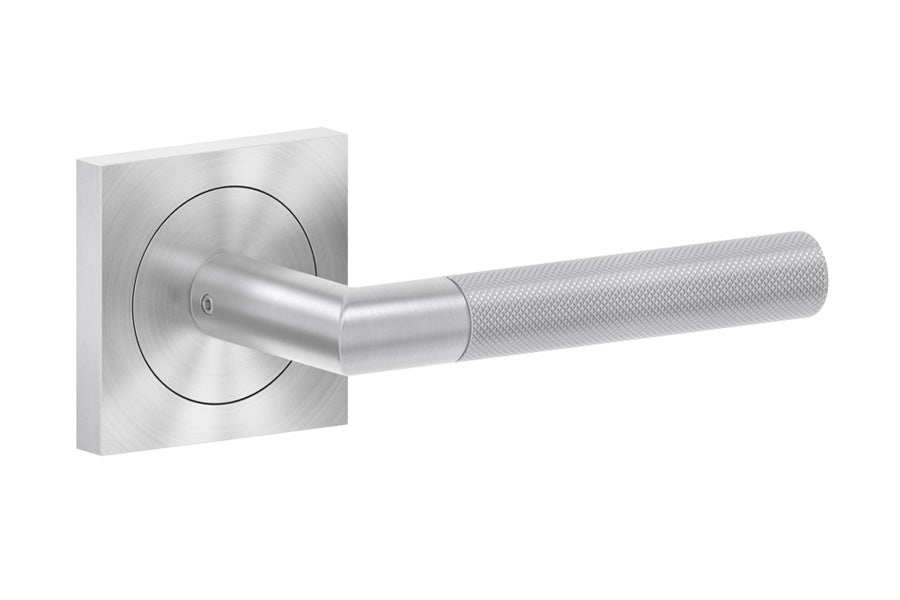

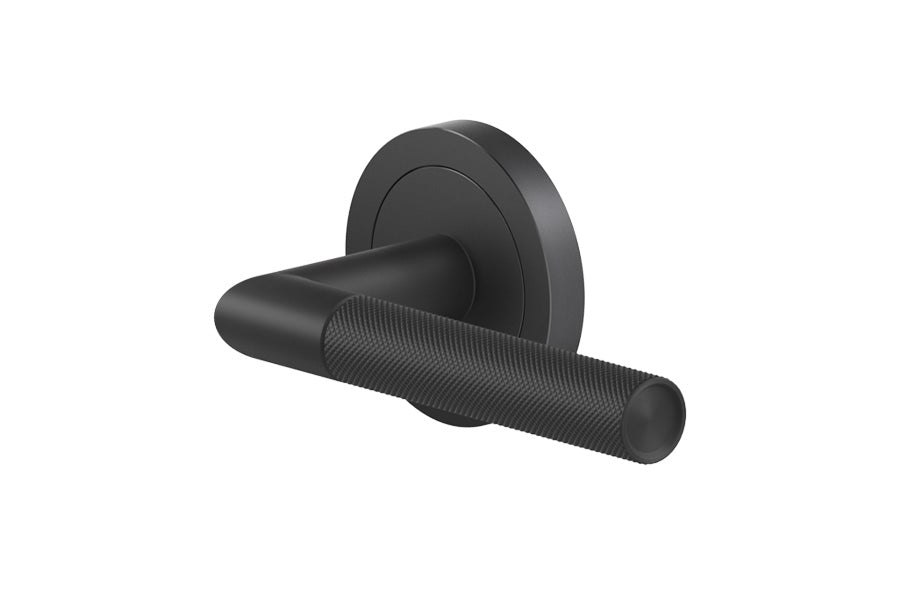

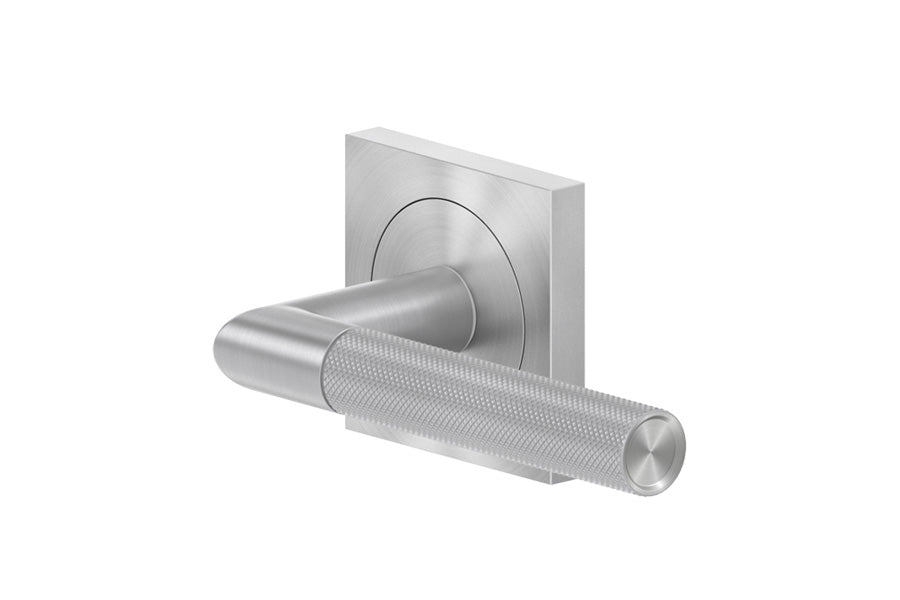

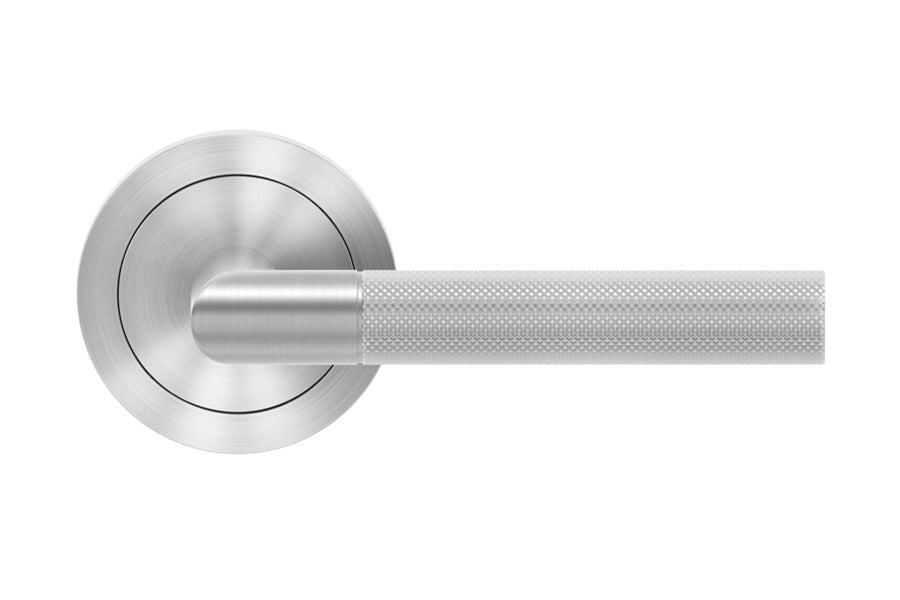

Karcher Design Studio One 3-Piece Rose Leverset for Pre-bored Door

Specifications

• Material:  Stainless Steel
• Backset:  2-3/8" or 2-3/4"
• Angle:  28 degrees
• Strike Plate:  T-Strike, Lip-Strike
• Minimum Standard Door Thickness:  1-3/16" (30mm)
• Maximum Standard Door Thickness:  1-3/4" (45mm)
• Screw Type:  Concealed Fixings
• Round Shape Rose Diameter:  2-5/8" (67mm)
• Round Shape Thickness:  7/16" (11mm)

Privacy

• Square Shape Height:  2-5/8" (67mm)
• Square Shape Width:  2-5/8" (67mm)
• Square Shape Thickness:  7/16" (11mm)

Privacy

References

• Installation Guide - Dummy
• Installation Guide - Passage and Privacy

• Drilling Template
