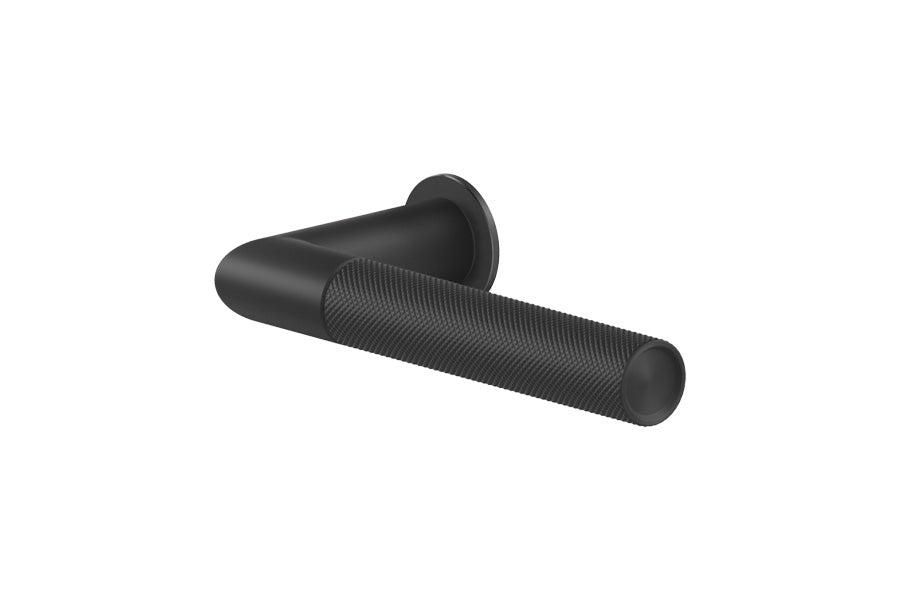

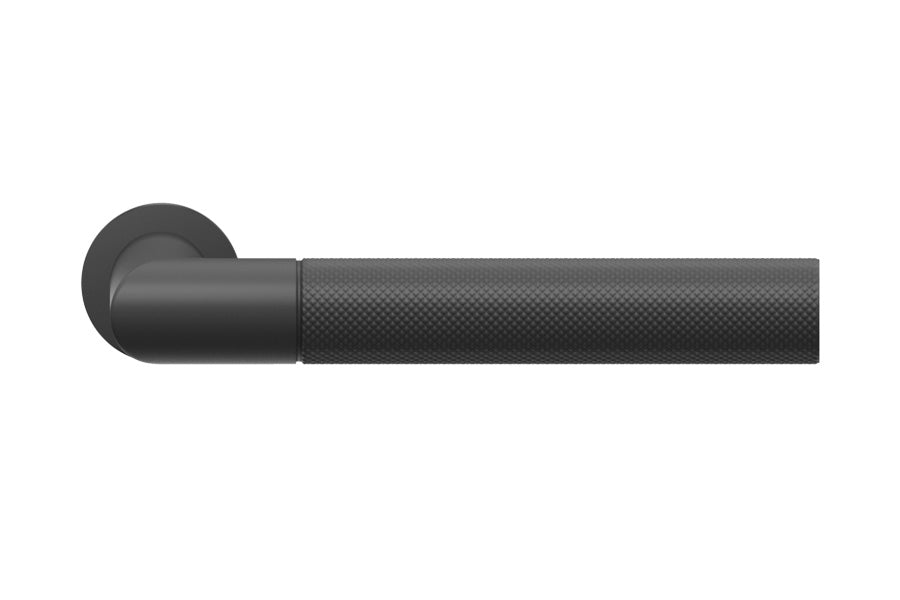

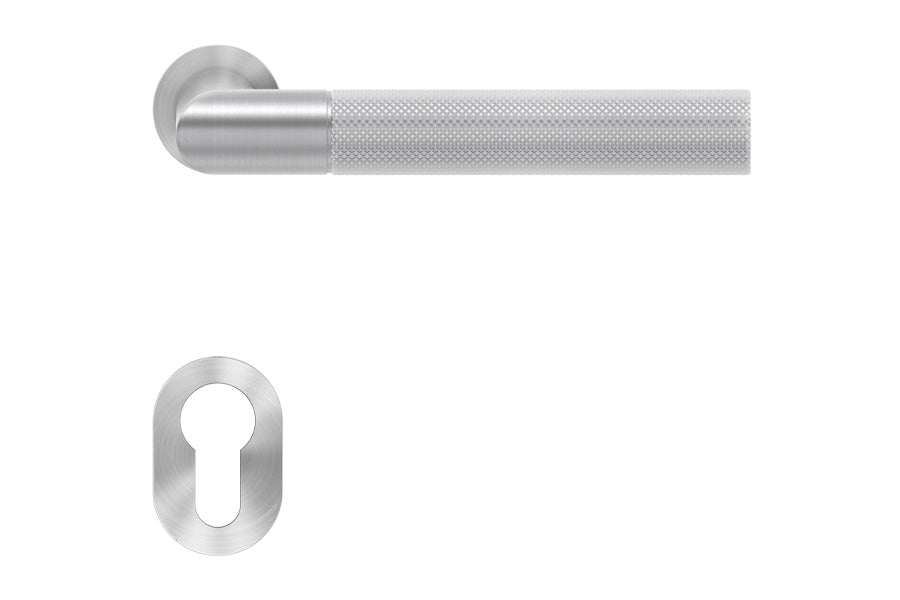

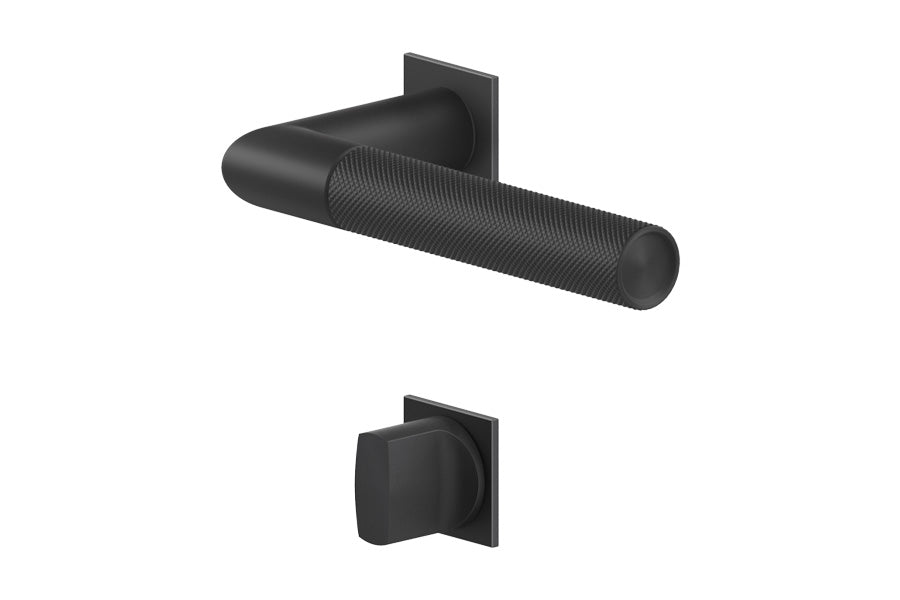

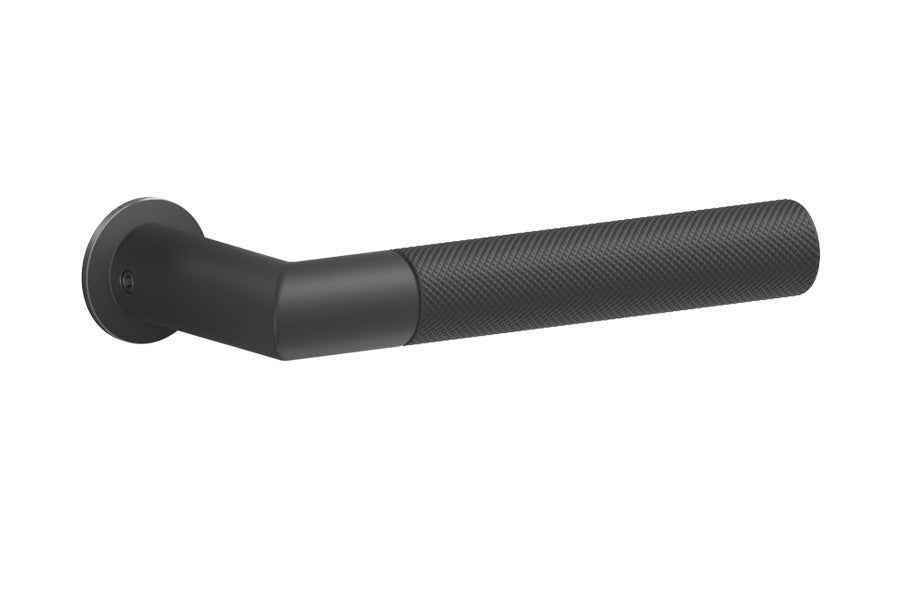

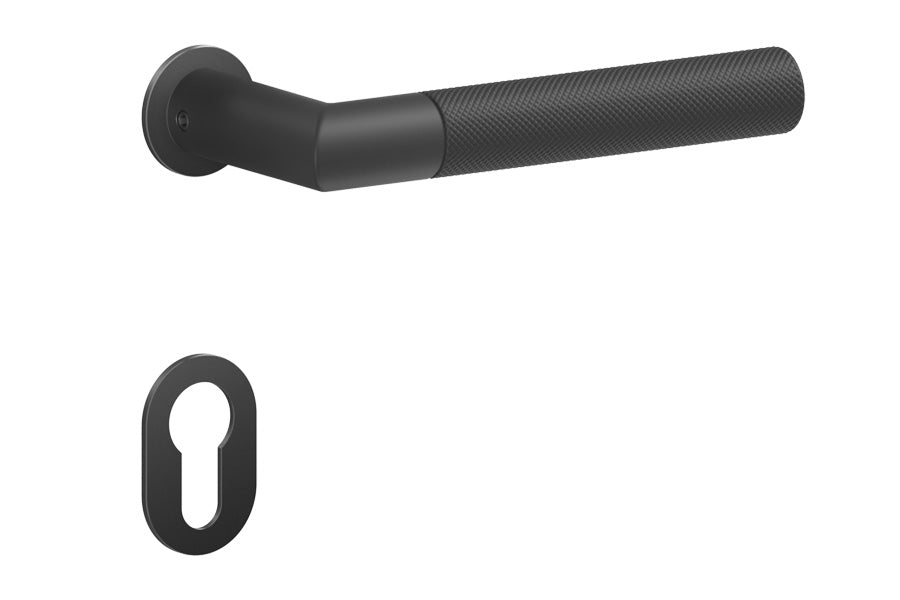

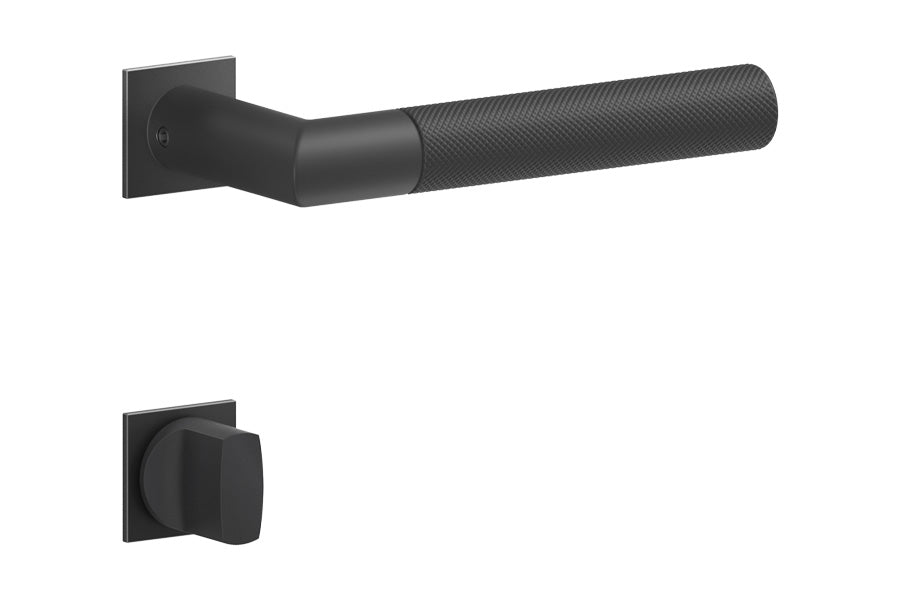

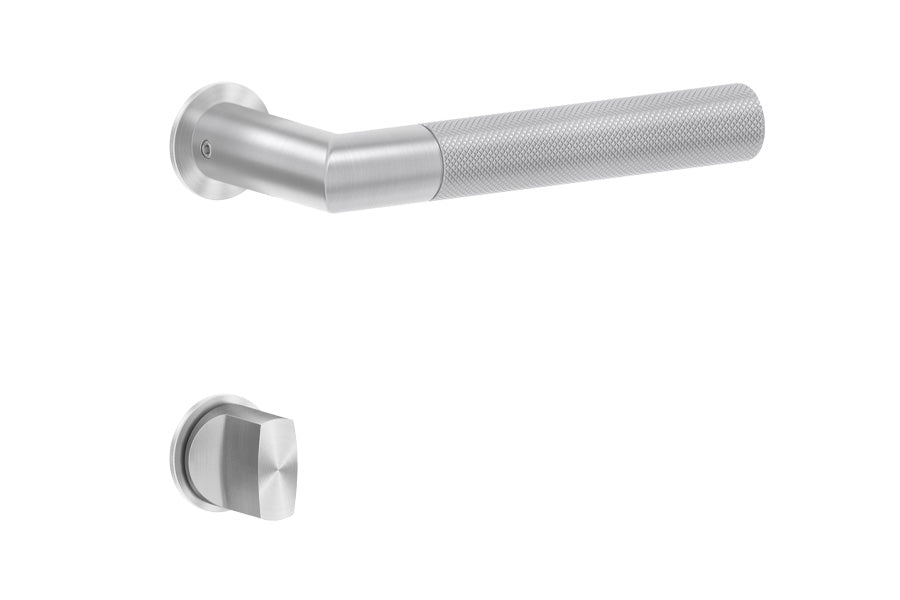

Karcher Design Studio One Mini Rose Leverset for Custom-bored Door

Specifications

• Material:  Stainless Steel
• Minimum Standard Door Thickness:  1-3/8" (35mm)
• Maximum Standard Door Thickness:  2-9/16" (65mm)
• Screw Type:  Concealed Fixings

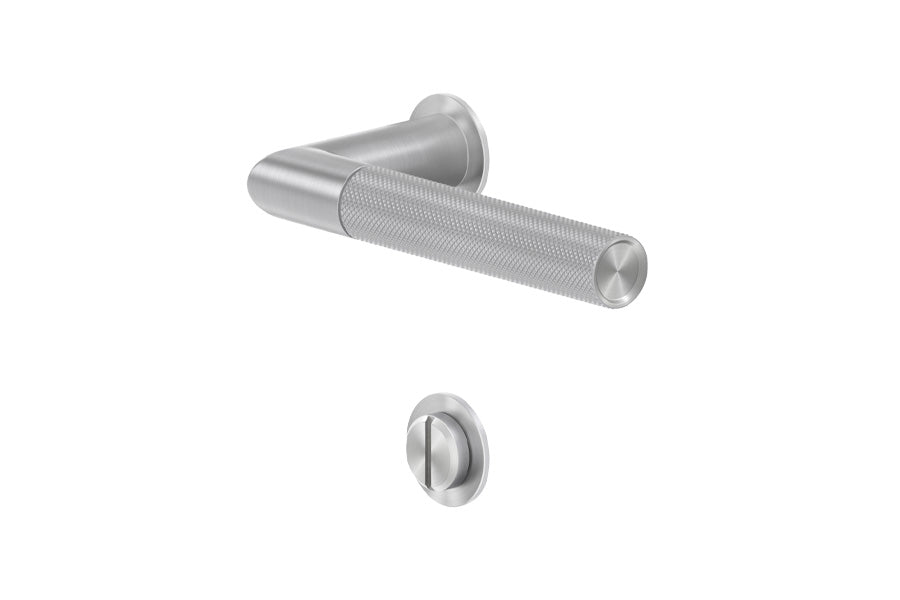

• Round Shape Rose Diameter:  1-3/16" (30mm)
• Round Shape Thickness:  5/64" (2mm)

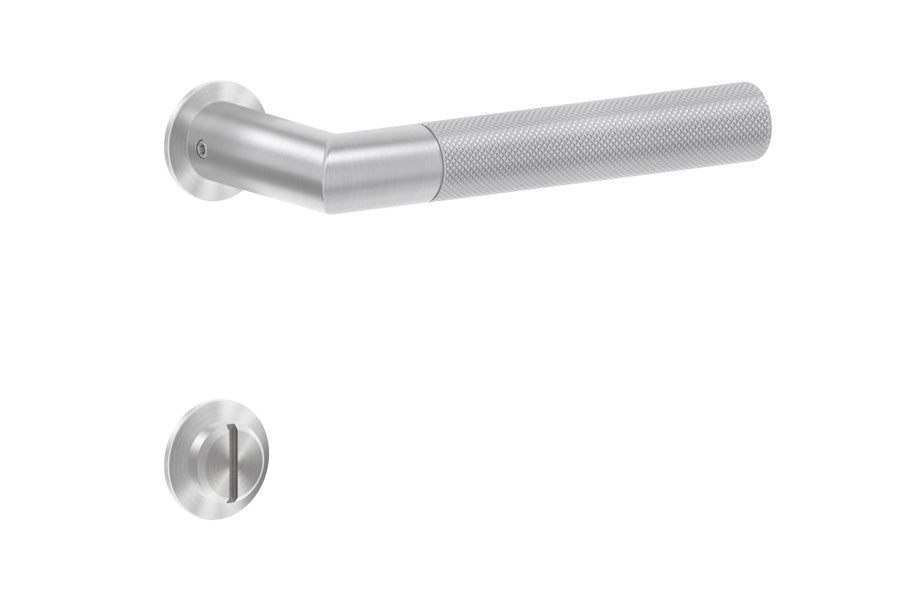

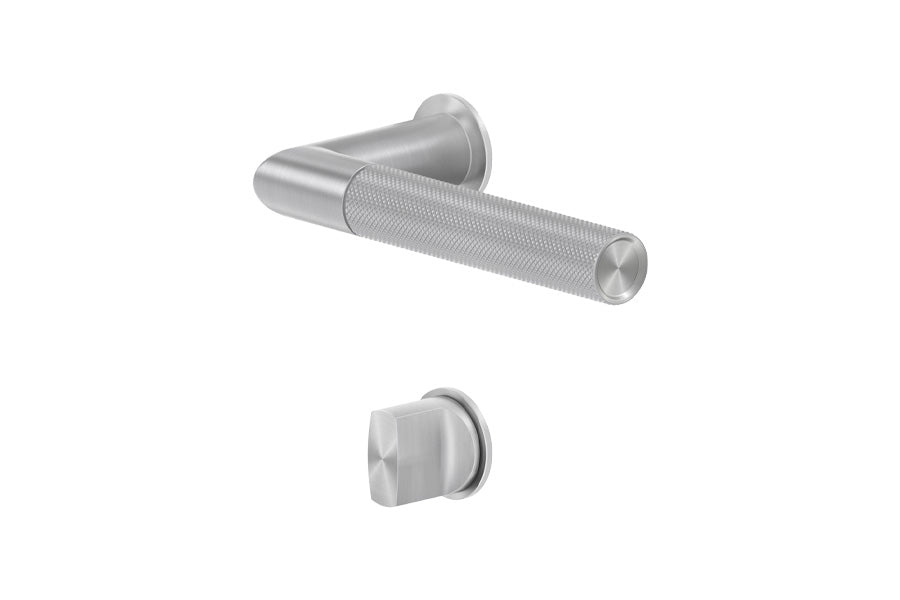

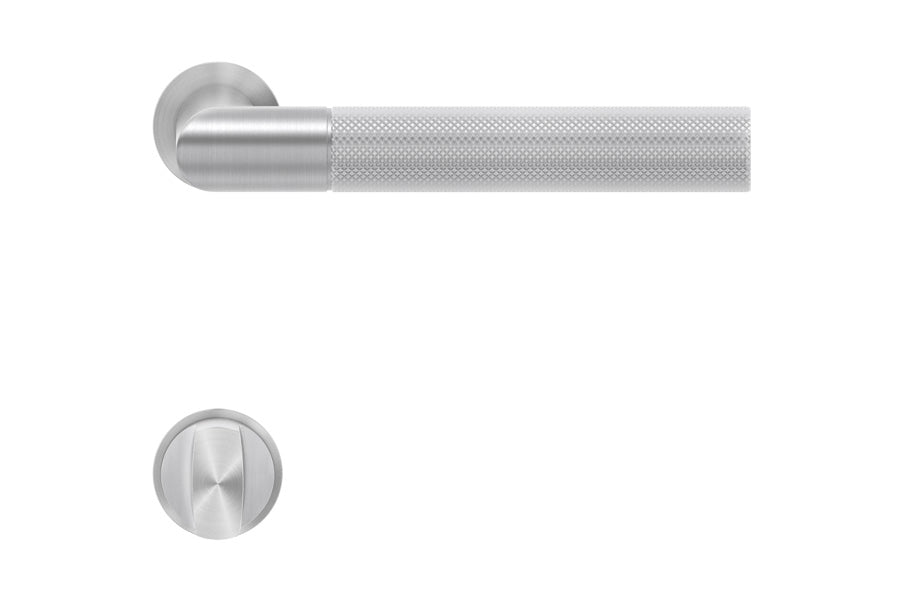

Privacy Bolt

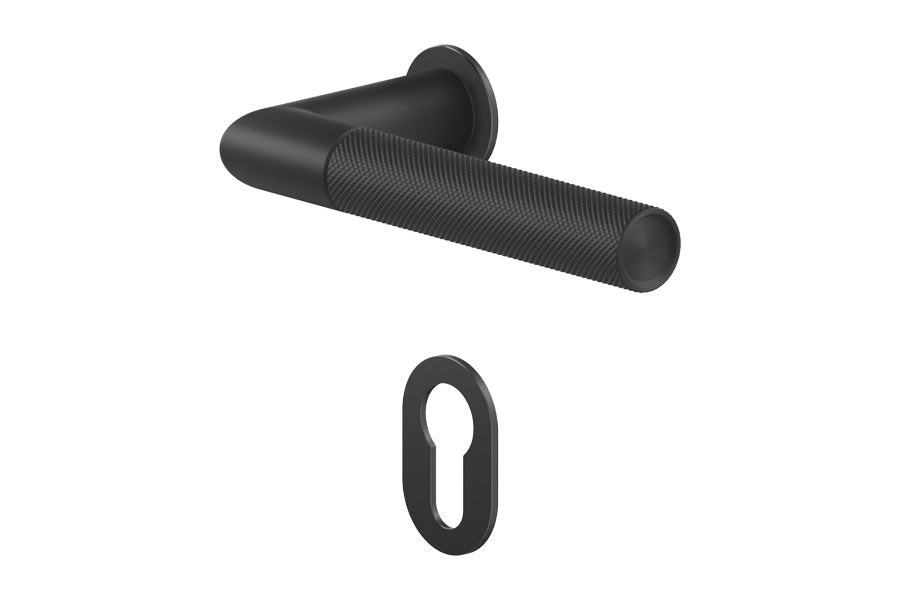

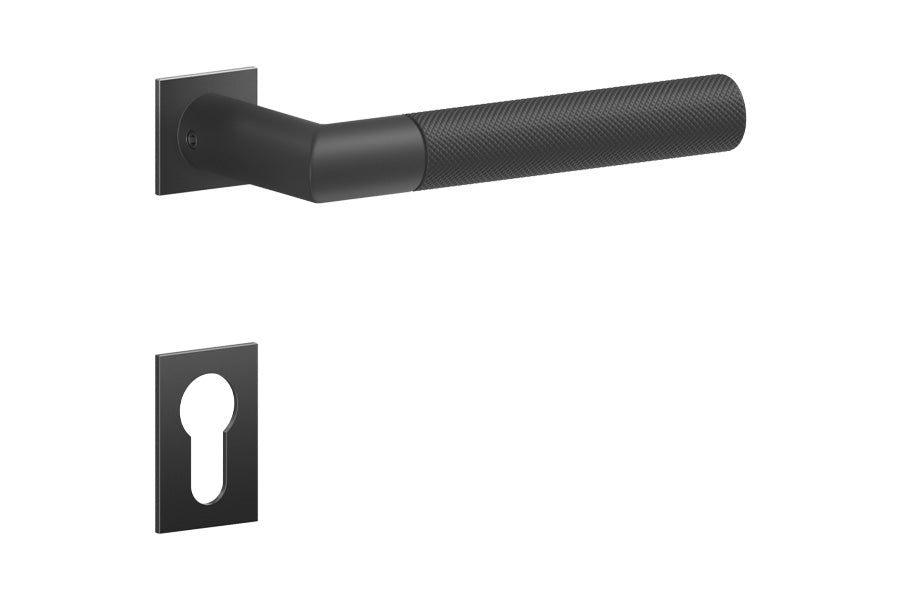

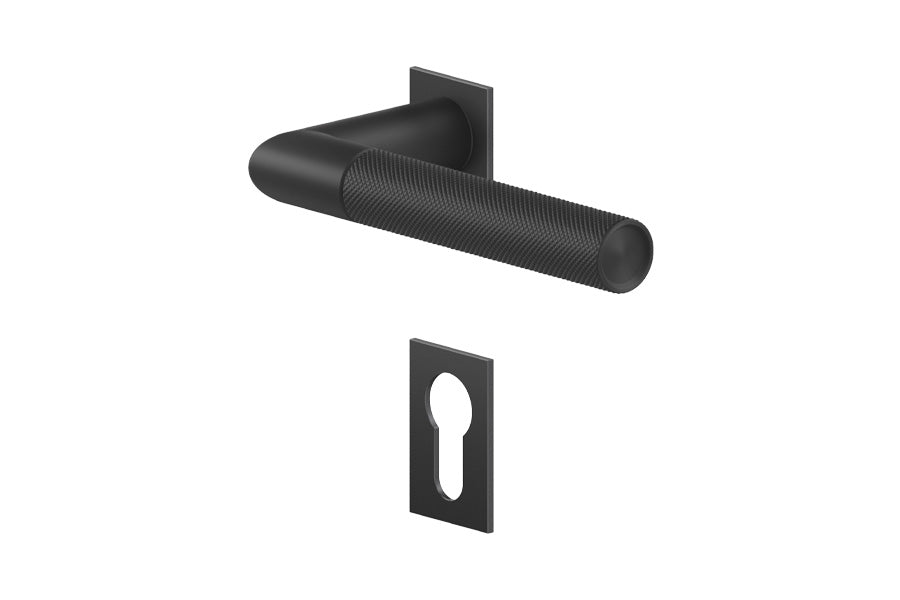

Euro Cylinder

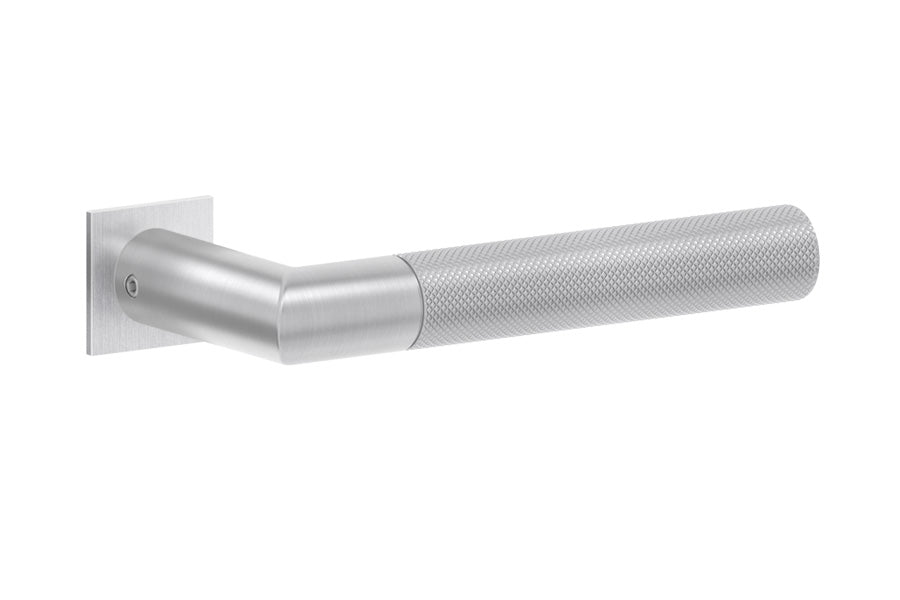

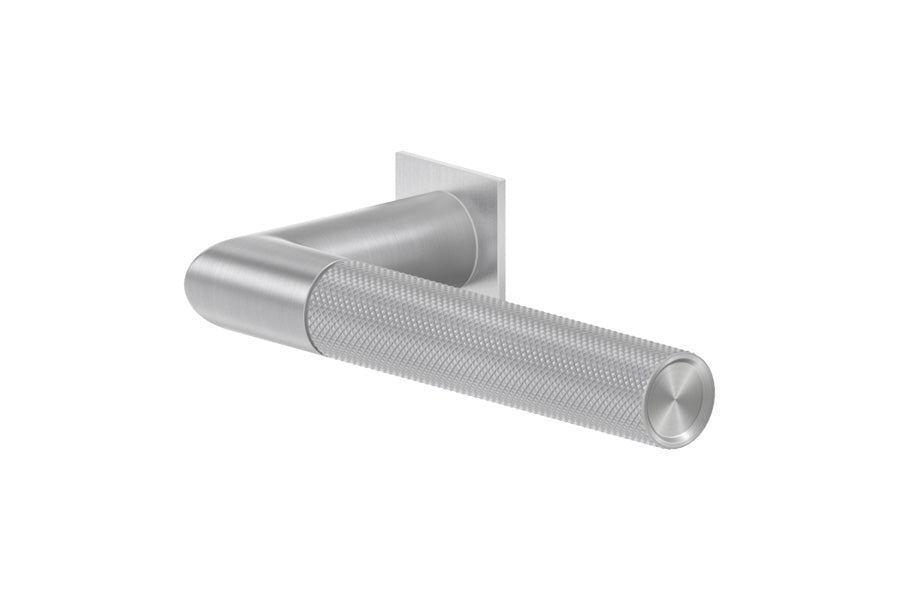

• Square Shape Height:  1-3/16" (30mm)
• Square Shape Width:  1-3/16" (30mm)
• Square Shape Thickness:  5/64" (2mm)

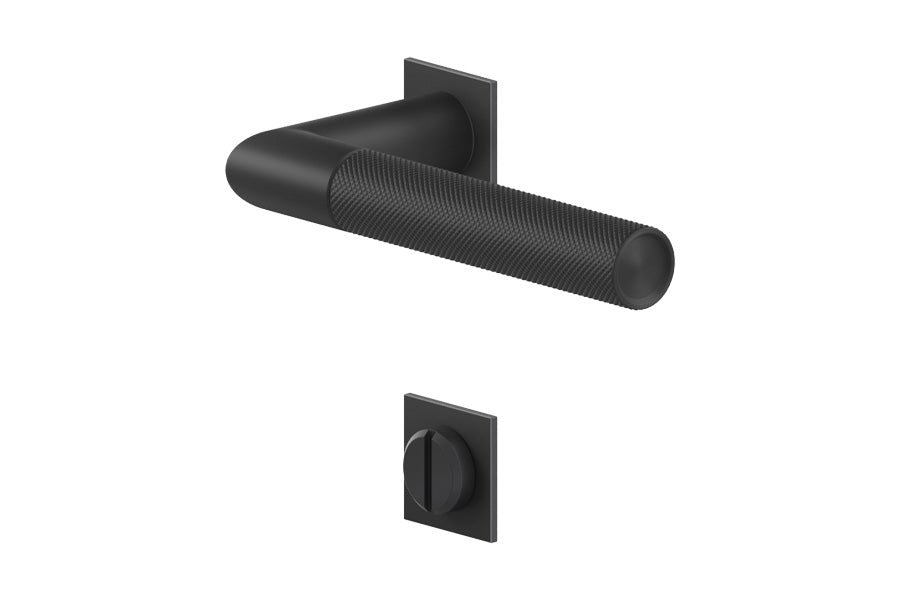

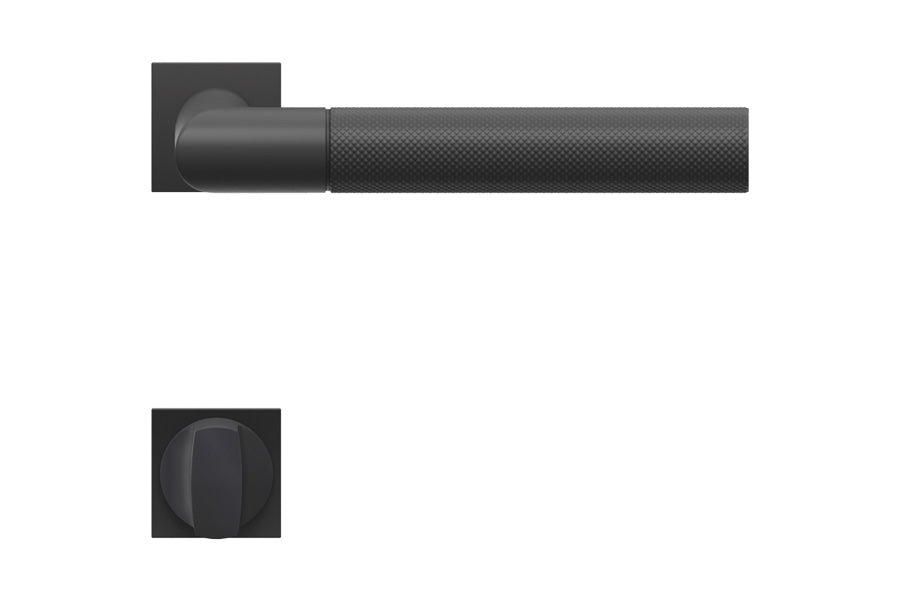

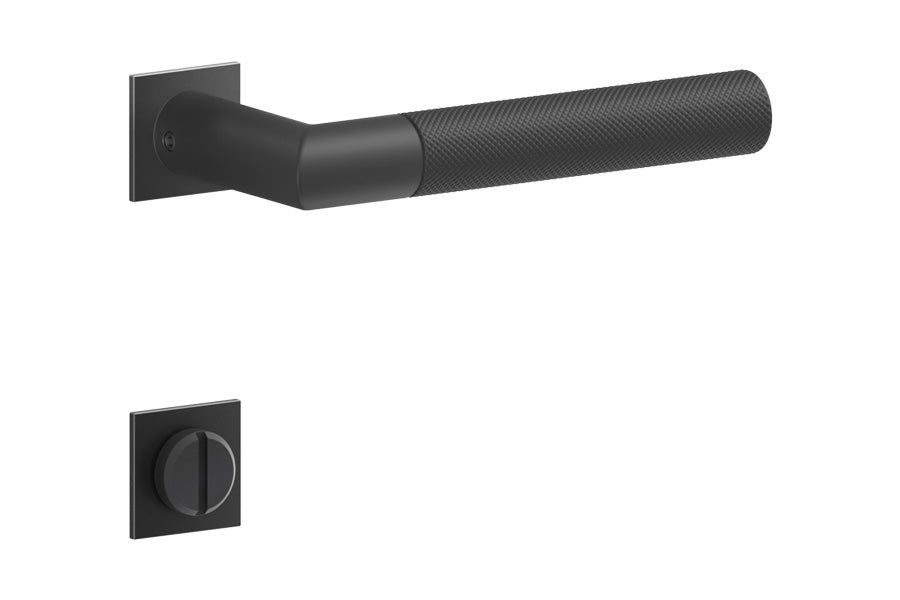

Privacy Bolt

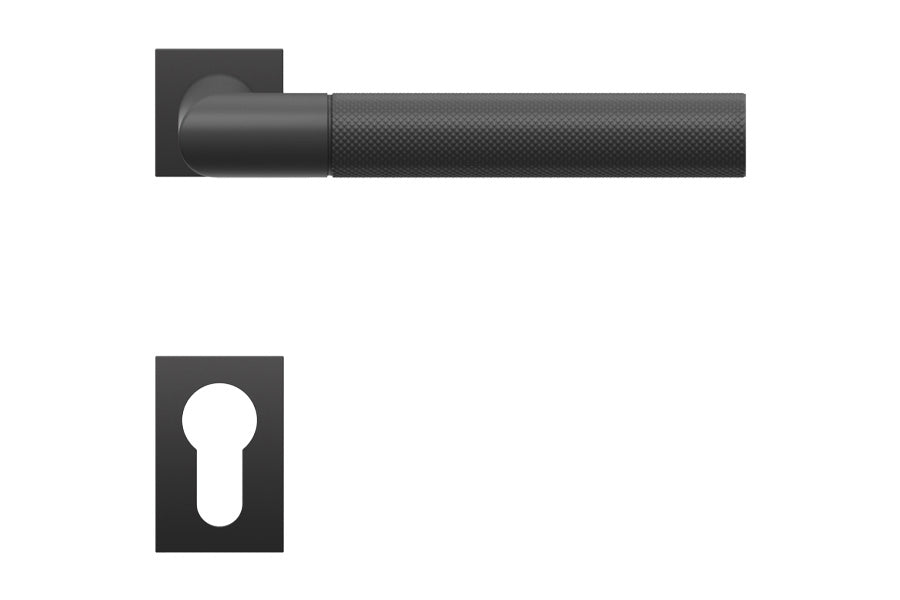

Euro Cylinder

References

• Installation Guide - Dummy
• Installation Guide - Passage
• Installation Guide - Privacy

• Installation Guide. - Euro Profile Cylinder
