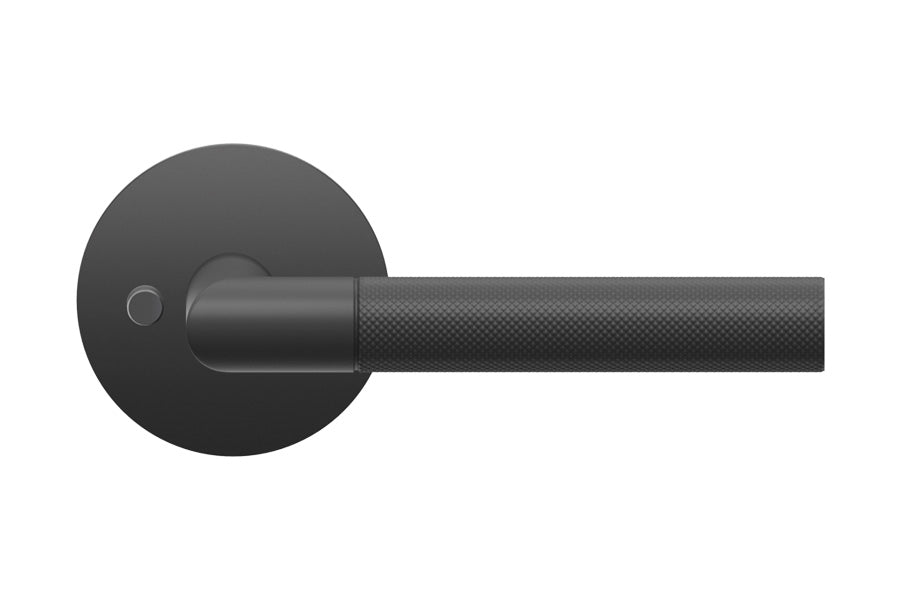

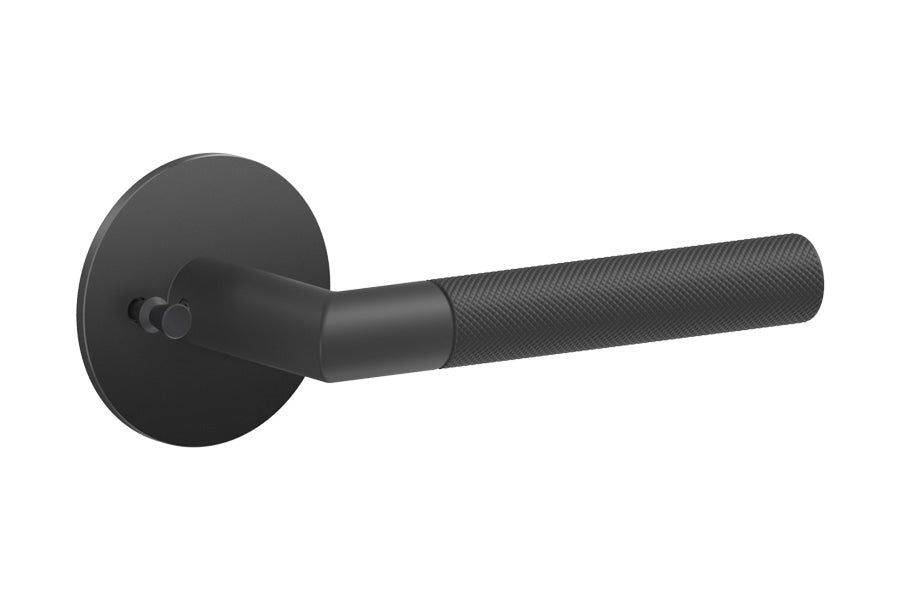

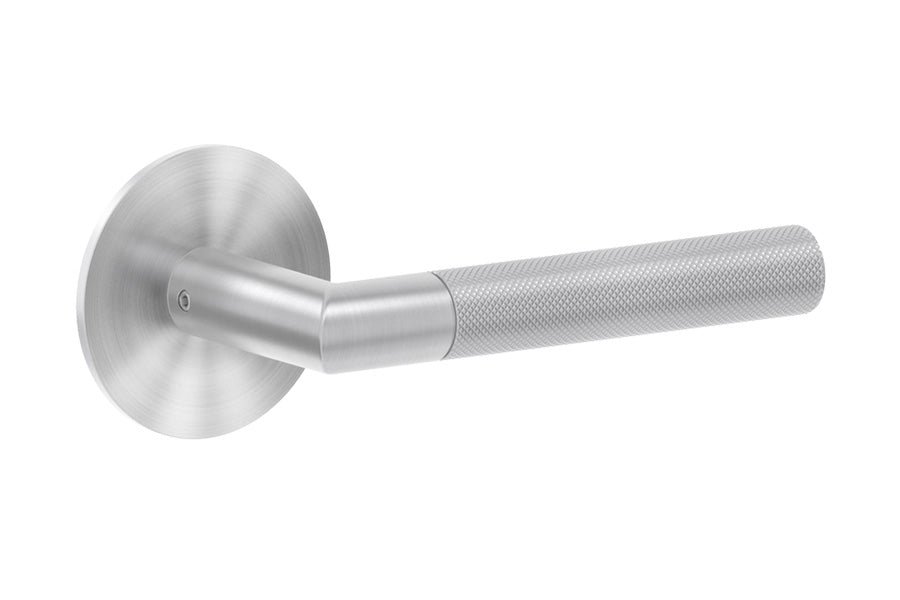

Karcher Design Studio One Plan Design Rose Leverset for Pre-bored Door

Specifications

• Material:  Stainless Steel
• Backset:  2-3/8" or 2-3/4"
• Angle:  28 degrees
• Strike Plate:  T-Strike, Lip-Strike
• Minimum Standard Door Thickness:  1-3/8" (35mm)
• Maximum Standard Door Thickness:  2" (50mm)
• Screw Type:  Concealed Fixings

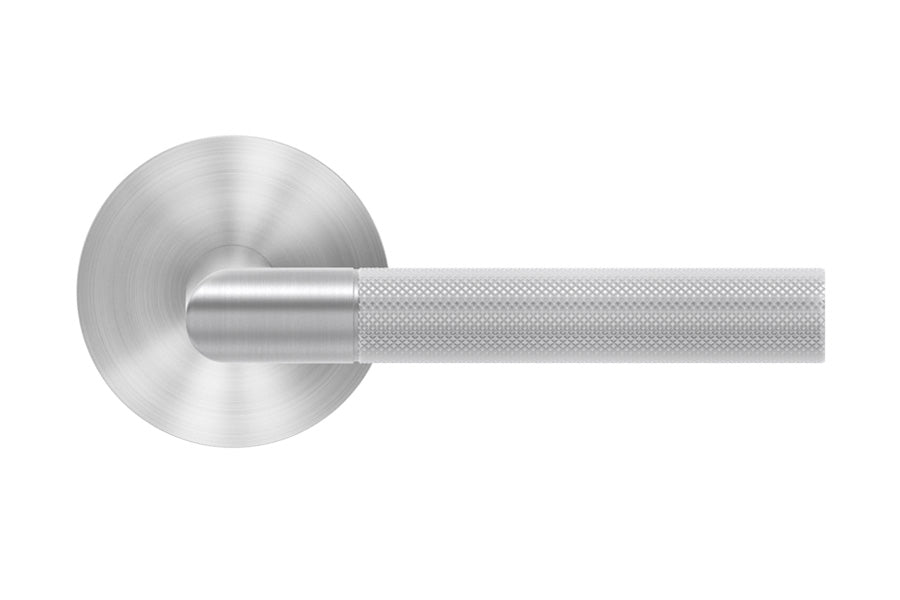

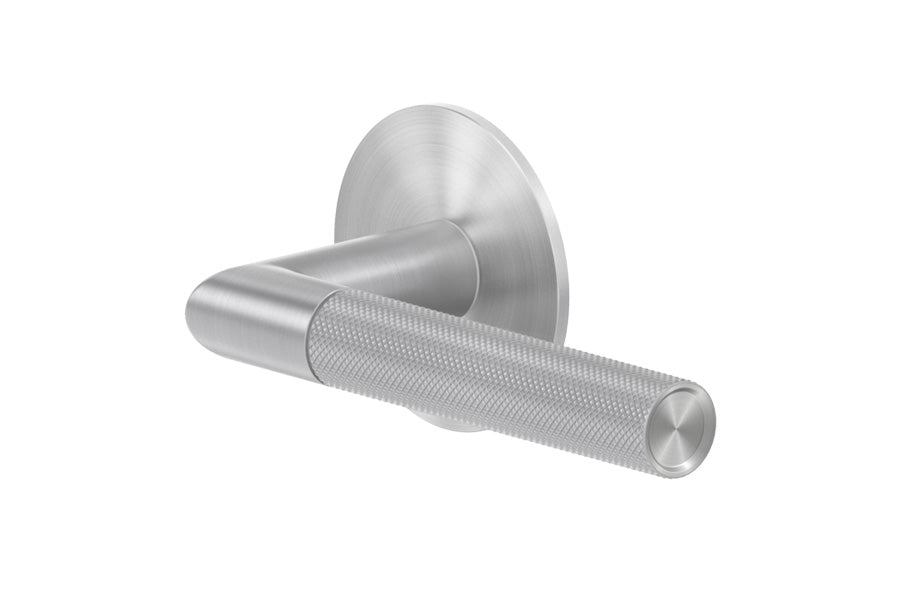

• Round Shape Rose Diameter:  2-9/16" (65mm)
• Round Shape Thickness:  1/8" (3mm)

Privacy

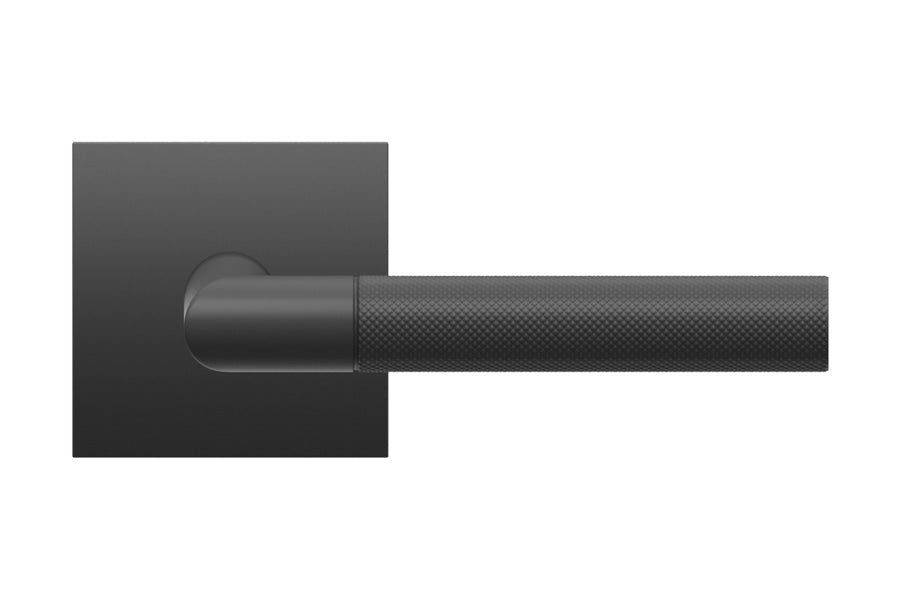

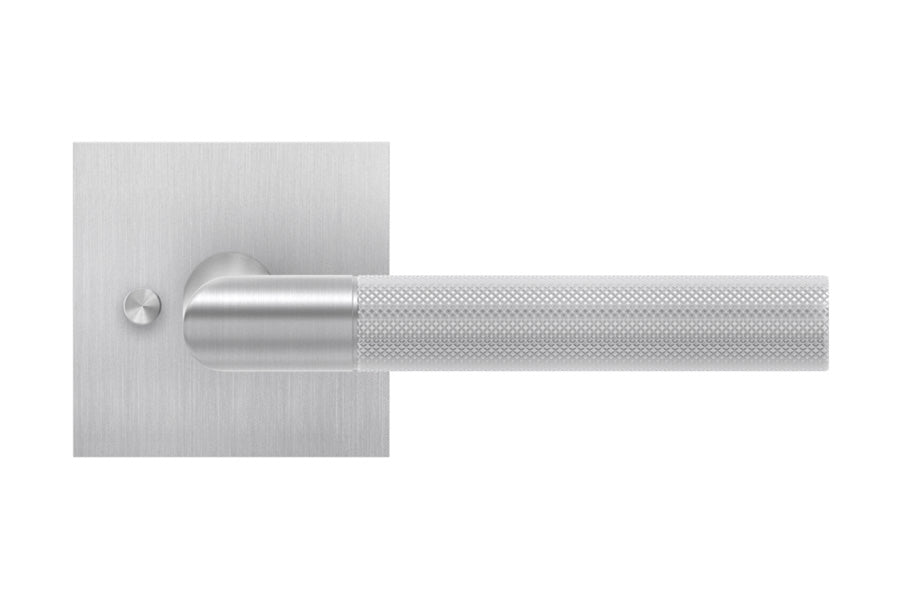

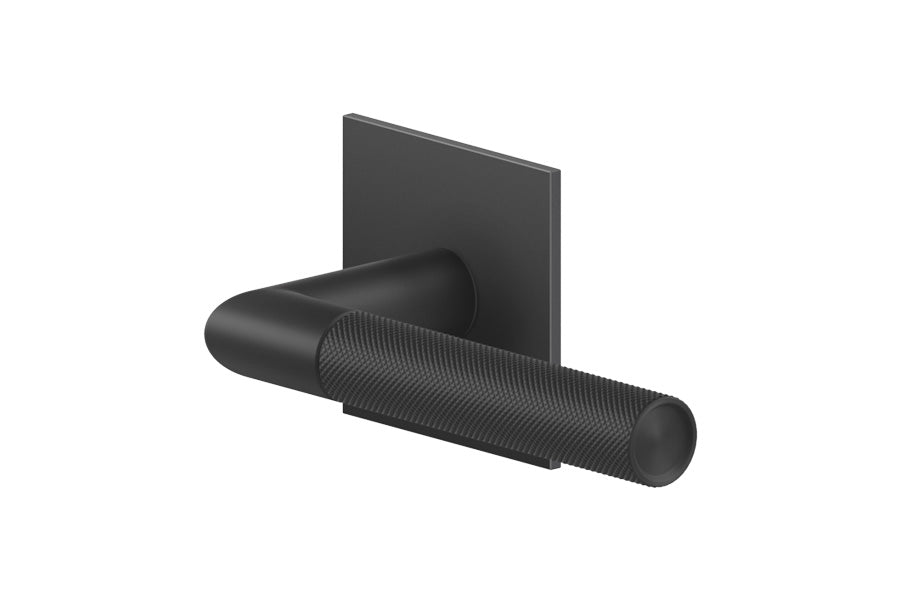

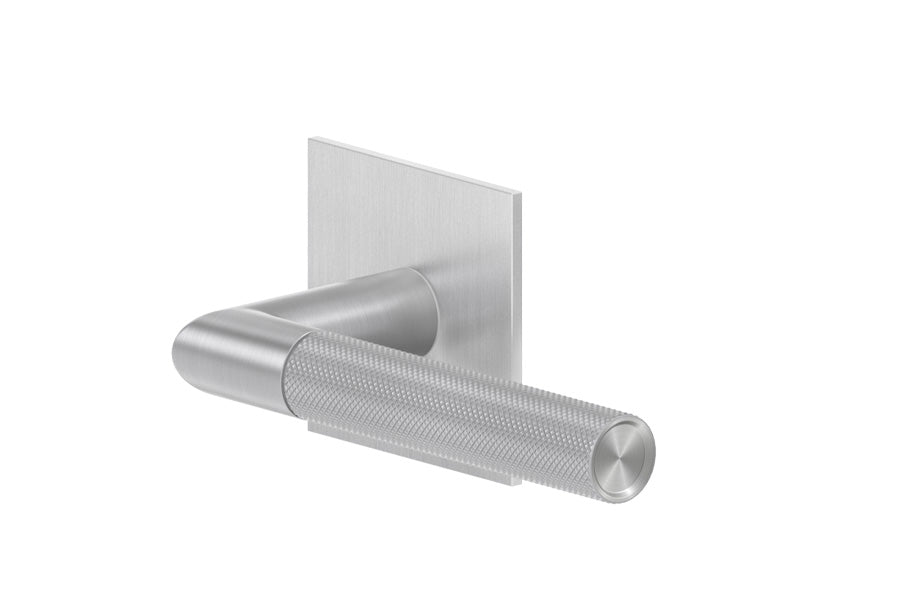

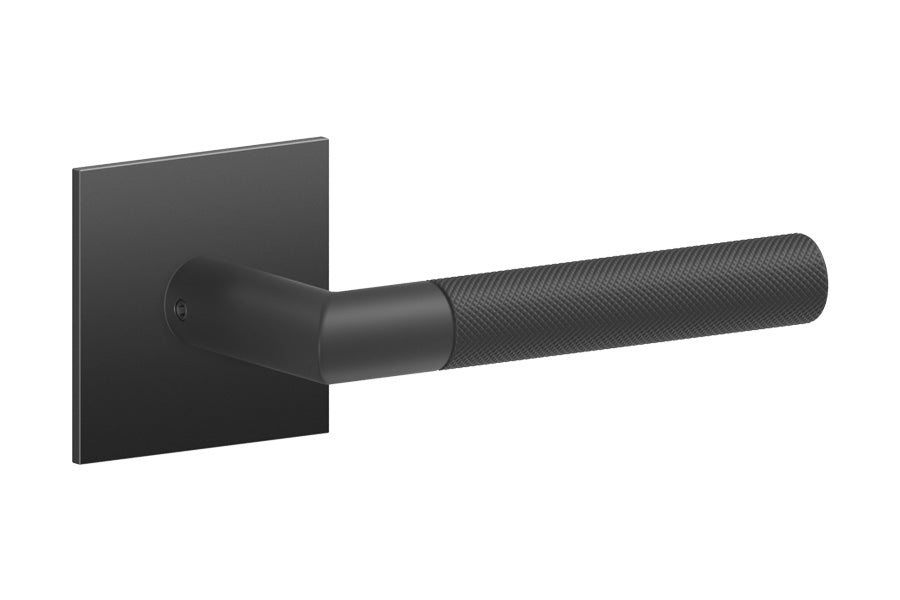

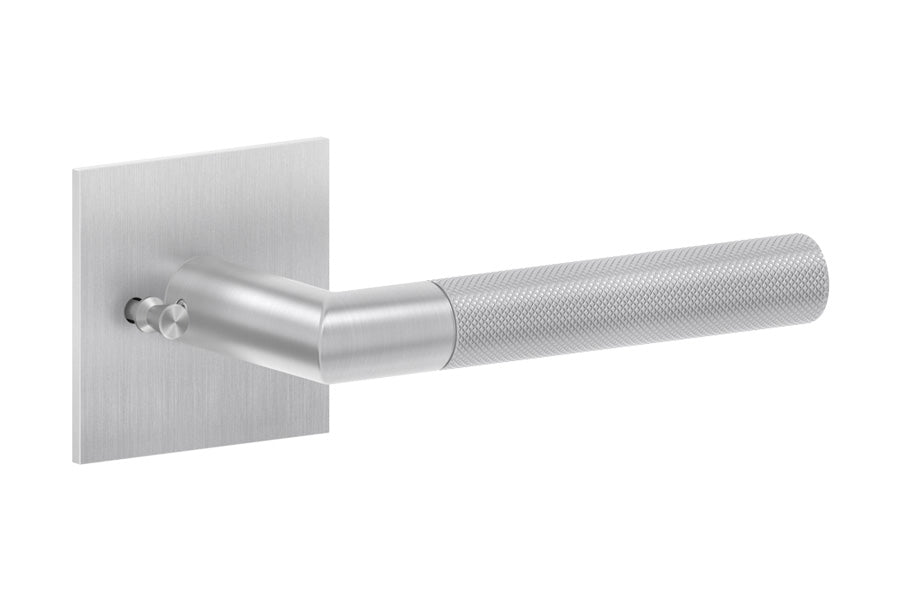

• Square Shape Height:  2-9/16" (65mm)
• Square Shape Width:  2-9/16" (65mm)
• Square Shape Thickness:  1/8" (3mm)

Privacy

References

• Installation Guide - Dummy
• Installation Guide - Passage and Privacy

• Drilling Template
