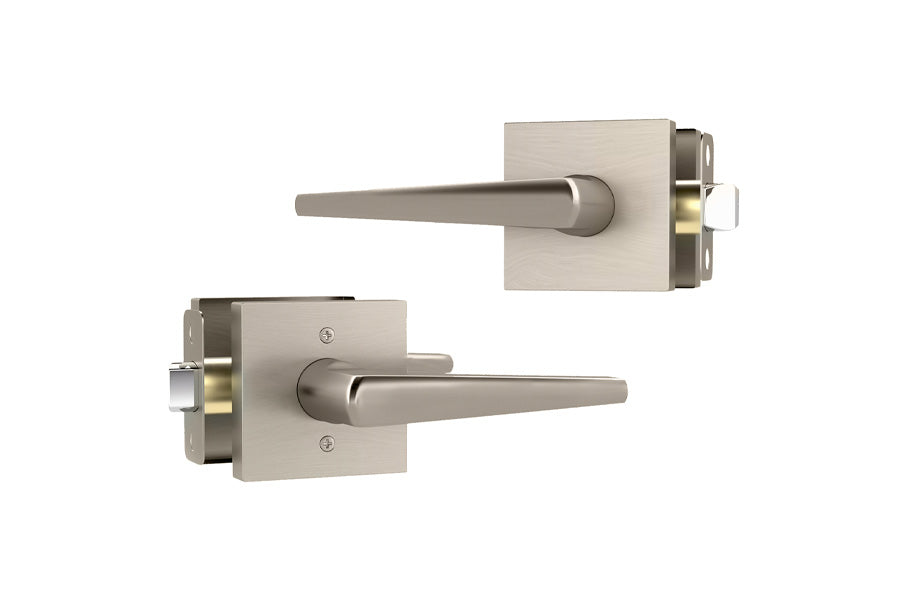

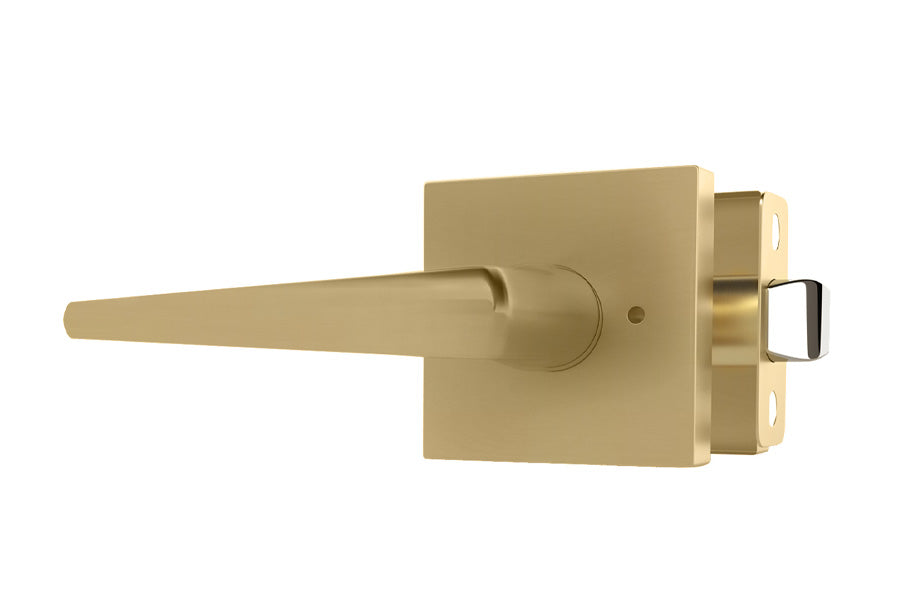

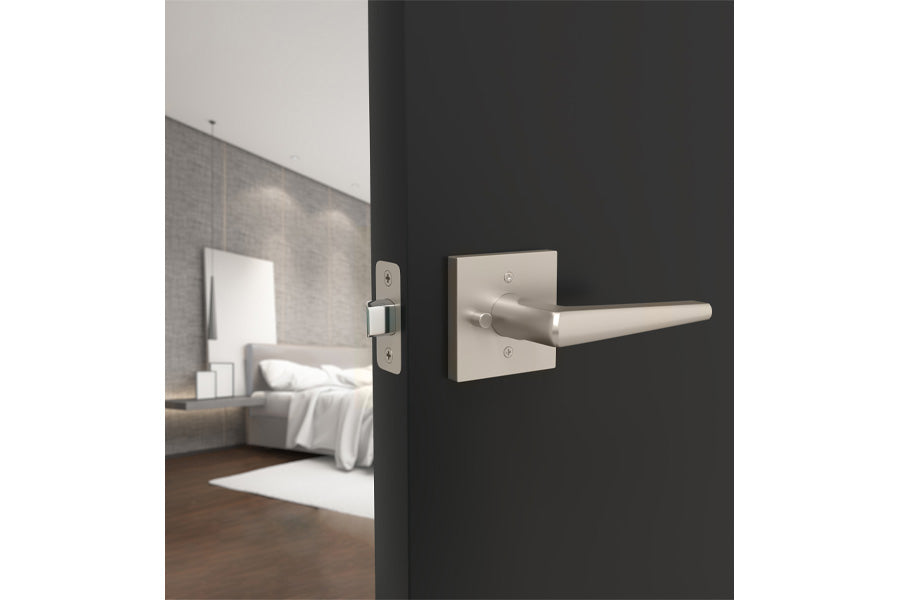

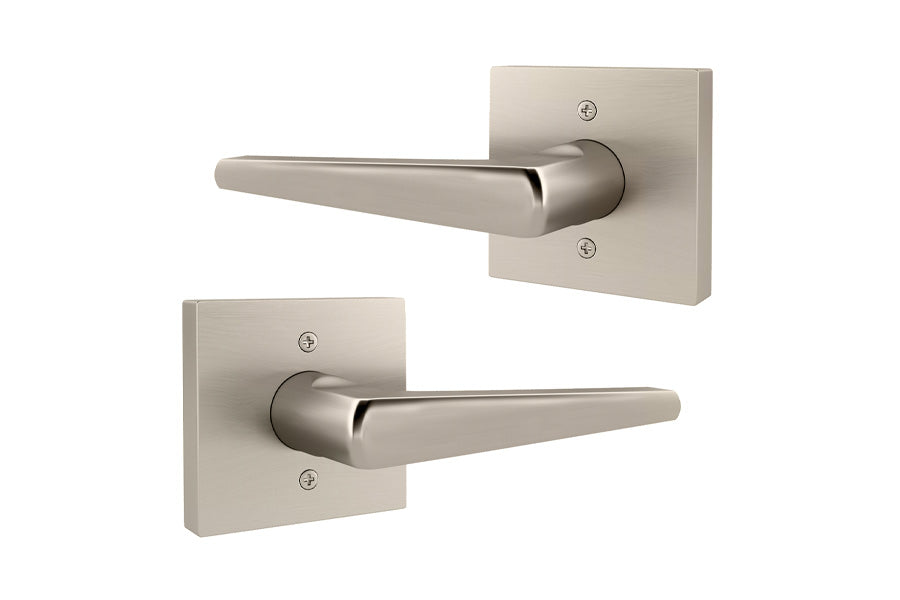

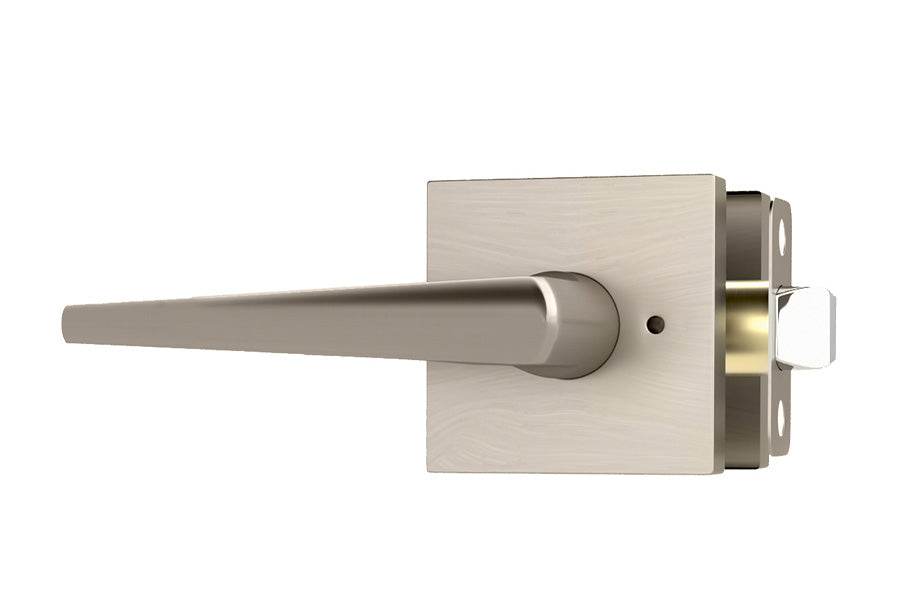

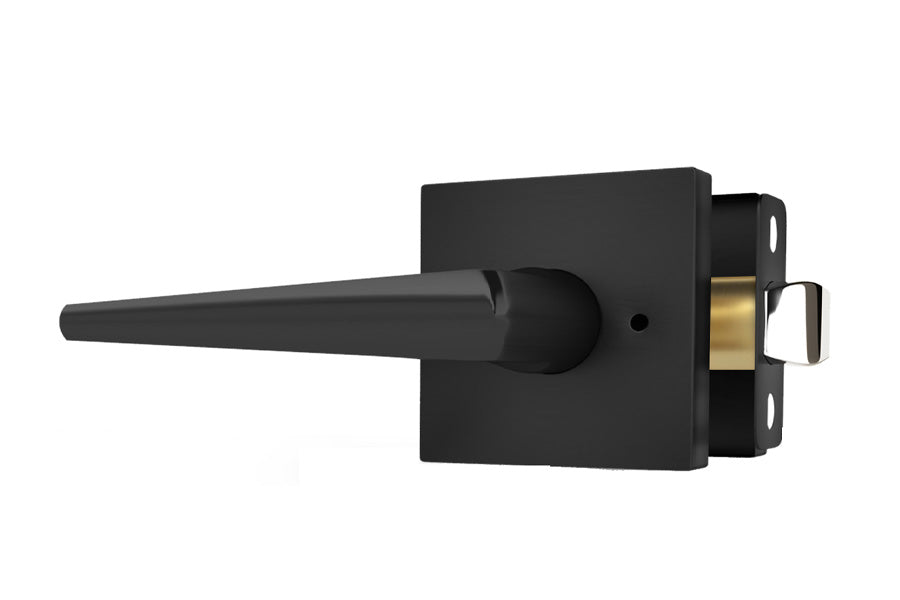

Mega Handles Schein Collection Door Lever

The SCHEIN collection was inspired by the idea of creating a bold and lively design. The lever is shaped like an isosceles triangle, with the narrow end pointing inward to create a welcoming and friendly feel. Its unique shape combines a modern, simple style with a distinctive look that stands out. The shaft features a carefully crafted crescent-shaped cut, adding a touch of elegance and perfectly balancing the design’s striking and refined elements.

Specifications

• Cross Bore:  2-1/8”
• Edge Bore:   1”
• Backset:   Fits 2-3/8” and 2-3/4”
• Latch:   2-3/8” and 2-3/4”
• Faceplate:   2” x 2-1/4”
• Screws:   304 Stainless Steel, Exposed
• Door Thickness:   1-3/8” - 1-3/4” standard doors
• Handing: Non-Handed
• ANSI/BHMA:  Exceeds ANSI/BHMA Grade 3 requirements
• Lever:  Zinc Alloy angled shape with 5.47” length
• Cylinder:  Solid Brass, 5- Pin, Re-key Function
• Reversible:  Fits Right and Left doors
• Rosette:  2.5” x 2.5” Square shape, Zinc material

References

1. Technical Specification - Privacy/Passage
2. Technical Specification - Dummy
3. Installation Instructions - Privacy/Passage
4. Installation Instructions - Dummy
