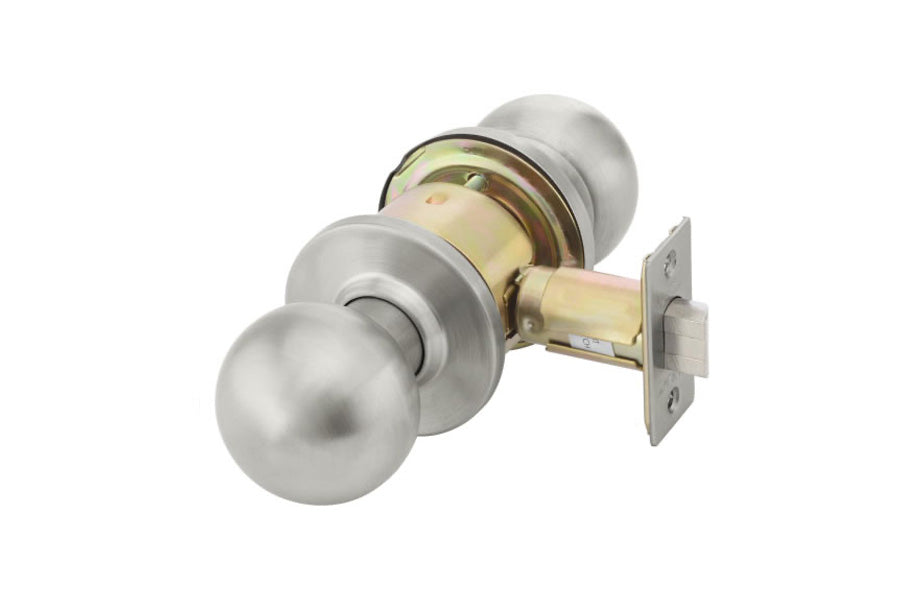

Accentra (Formerly Yale) 4602YC Medium Duty Passage Cylindrical Knob Lock

ASSA ABLOY ACCENTRA® 4600YC cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality and ease of use & installation are required at an economical price.

Features

• Made of stainless steel or wrought brass
• UL/cUL Fire-Rated up tp 3-hours
• For doors that do not require locking
• Either knob operates latchbolt at all times


Benefits

• ANSI/BHMA A156.2, Series 4000 Grade 2
• 3-year mechanical warranty

Specifications

• ANSI F75:  Passage
• Backset:  2-3/4"
• Door Thickness:  1-3/8" to 1-3/4"
• Strike:  4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
• Latch:  1/2" throw – 1-1/8" x 2-1/4" face
• Usage:  Medium Duty
