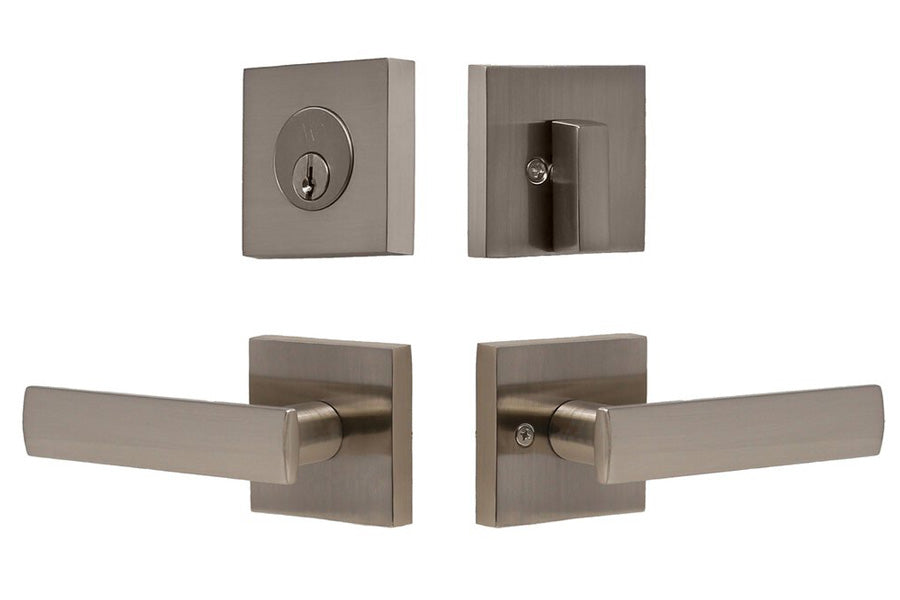

Weslock Utica Lever and Deadbolt Combo Pack

Sold as a combo pack, includes both interior and exterior components. The front door handle lock features a single cylinder deadbolt accessible by an exterior key, ensuring reliable safety for your home with a secure lock inside. The single cylinder deadbolt hardware enables locking and unlocking from the outside using a key in the deadbolt along with a passage combination set.

Technical Specifications

• Square Diameter:  2-7/16"
• Projection: 2-1/2"
• Lever Length:  4-7/8"
• Backset:  Adjustable 2-3/8" or 2-3/4"
• Cross Bore:  2-1/8"
• Locking Mechanism:  Thumbturn
• Material:  Zinc
• Mount Type: Tubular
• ANSI Grade 2 Standard
• 5-Pin Cylinder, Weslock Keyway

References

1. Installation Manual
