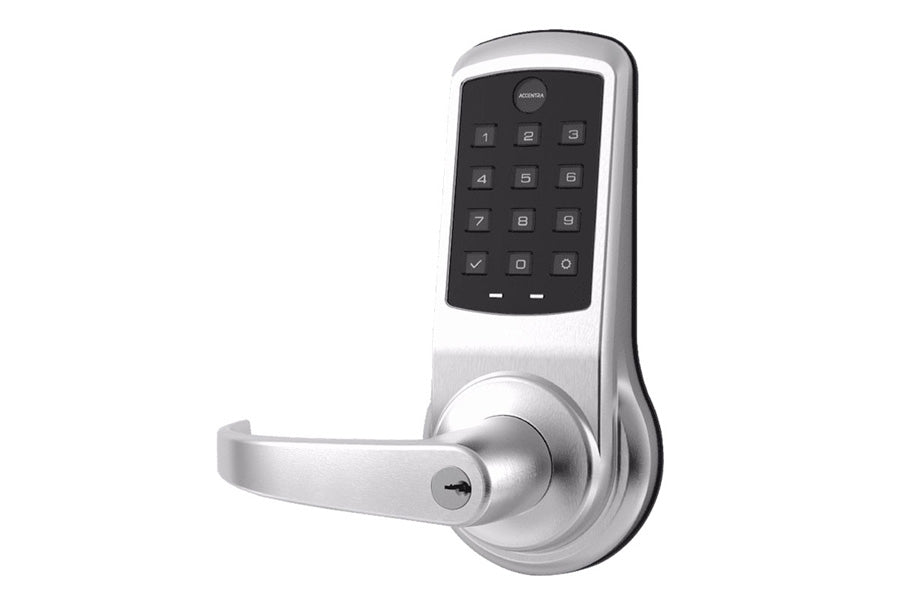

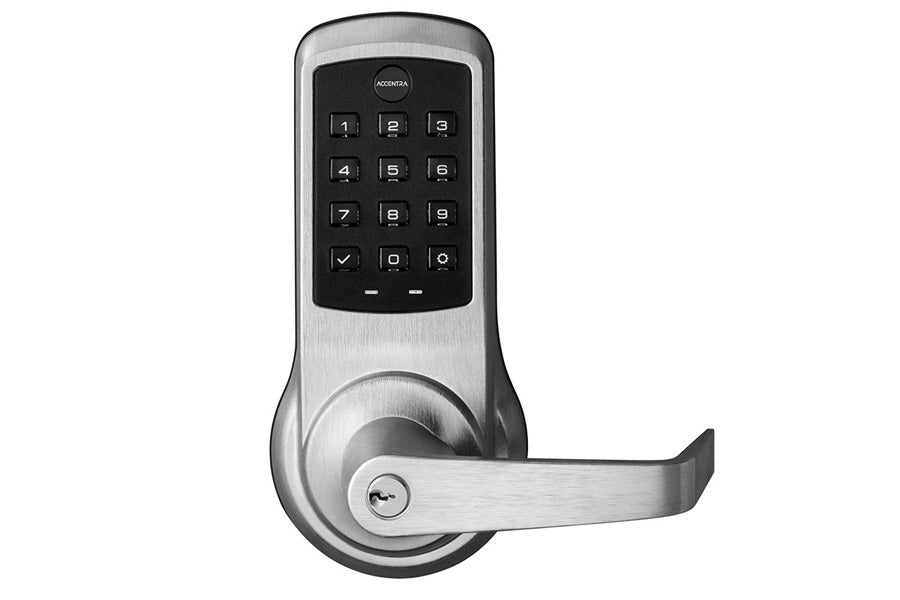

Accentra (Formerly Yale) NTB613 nexTouch Push Button Keypad Cylindrical Lock

ASSA ABLOY ACCENTRA® nexTouch® combines a modern look and innovative access control technology with an array of bold new features, offering an attractive access control solution to a range of facilities. With a heavy-duty design and ANSI/BHMA Grade 1 certification, nexTouch® provides durable and reliable security.

Features

• Modular technology allows users to upgrade to Data-on-Card
• Capacitive touchscreen or pushbutton keypad available, for tactile environments and ADA-compliance
• Privacy mode enabled by a button push
• Up to 500 user codes in keypad only operation
• 9V battery power backup prevents lockout even if the batteries fall
• For doors that require mechanical key override
• Latchbolt retracted by lever outside with valid PIN code; by use of mechanical key, or by operating lever inside
• Inside lever always active
• Deadlocking latchbolt

Benefits

• Engineered to provide a comprehensive, easy-to-use access control solution to protect your facility and personnel
• Unique and versatile design enables upgrade of the lock’s technology when needed
• Reduces investment and maintenance costs
• Certified Windstorm
• 3-year limited warranty on mechanical and electrical components, 1-year warranty on the finish

Specifications

• Certified ANSI/BHMA Grade 1
• Backset: 2-3/4
• Latch:  1/2” throw, deadlocking – 1-1/8" x 2-1/4" face
• Strike:  4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
• Door Thickness:  1-3/4"
• Cylinder:  6-Pin
• Keyway:  Schlage "C"
• Handing:  Non-Handed, Field Reversible
• Power:  Battery-operated, with low power indicator, or hard-wired (9 Volt external power supply) option. Blinking designation signals internal 4 AA alkaline batteries are low.
• Reader Technology:  NR: Keypad only, no radio
• Fire Rating:  UL Listed up to 3 Hours
• Usage:  Heavy Duty

References

1. Technical Specification
2. Installation Instructions
