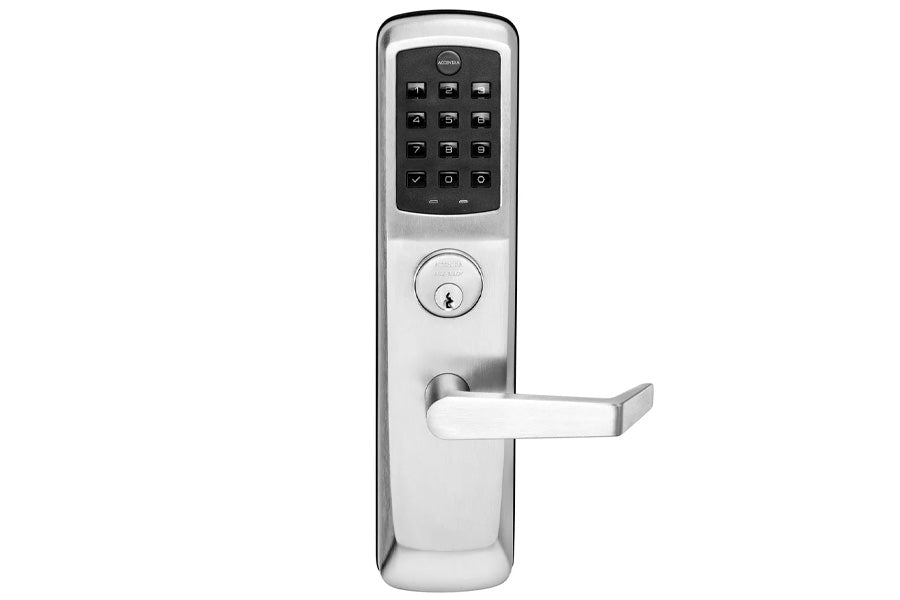

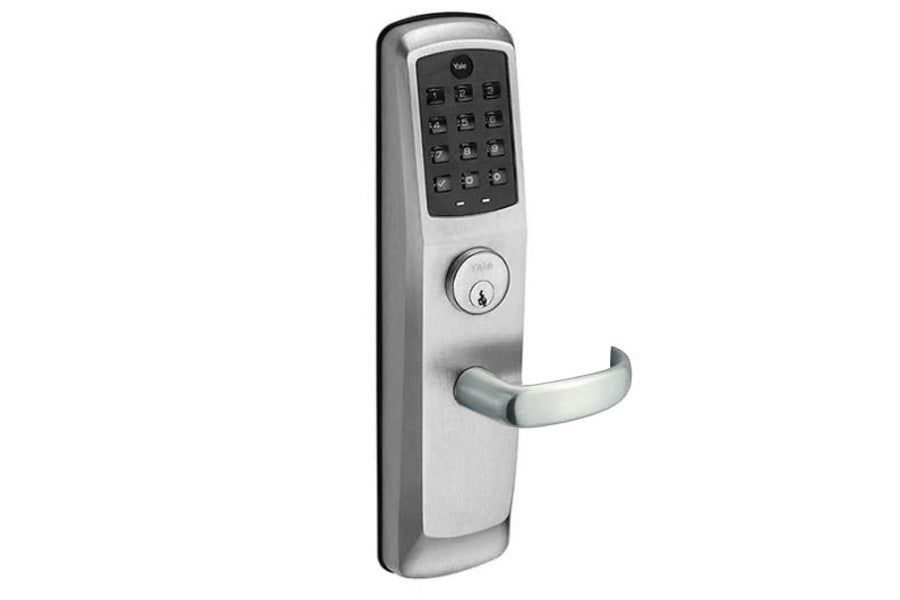

Accentra (Formerly Yale) NTT613 nexTouch Push Button Keypad Rim Exit Device Trim

Whether for a new opening or an existing door, the ASSA ABLOY ACCENTRA® nexTouch® Keypad Exit Trim is the perfect way to upgrade almost any exit device for easy, key-free access. Perfect for a variety of applications, including delivery doors, stairwells, or on an existing exit device, ASSA ABLOY ACCENTRA® nexTouch® Keypad Exit Trim offers a new level of convenience to your commercial facility.

Features

• Capacitive touchscreen or pushbutton keypad available, for tactile environments and ADA-compliance
• Patented adjustable mounting posts enable retrofit onto many exit device models without any additional hardware
• Up to 500 user codes in keypad only operation
• 9V battery power backup prevents lockout even if the batteries fall
• Modular technology allows users to upgrade to Data-on-Card
• For doors that require mechanical key override
• Bolt retracted by pushbar on interior and lever on outside except when outside lever is locked
• Key override unlocks the outside lever only, only when key is inserted and rotated left. When key is removed, lever is automatically re-locked
• Deadlocking rim bolt

Benefits

• Engineered to provide an easy-to use access control solution to protect your facility and personnel
• Able to be installed in place of mechanical exit trim on many pushpad exit devices, including competitor models

• Reduces investment and maintenance costs associated with managing keys
• 3-year limited warranty on mechanical and electrical components, 1-year warranty on the finish

Specifications

• Certified ANSI/BHMA Grade 1
• Door Thickness:  1-3/4"
• Cylinder:  6-Pin
• Keyway:  Schlage "C"
• Handing:  Non-Handed, Field Reversible
• Power:  Battery-operated, with low power indicator, or hard-wired (9 Volt external power supply) option. Blinking designation signals internal 4 AA alkaline batteries are low
• Fire Rating:  UL and cUL Listed – up to 3 Hours
• Usage:  Heavy Duty

References

1. Technical Specification
2. Installation Instructions
