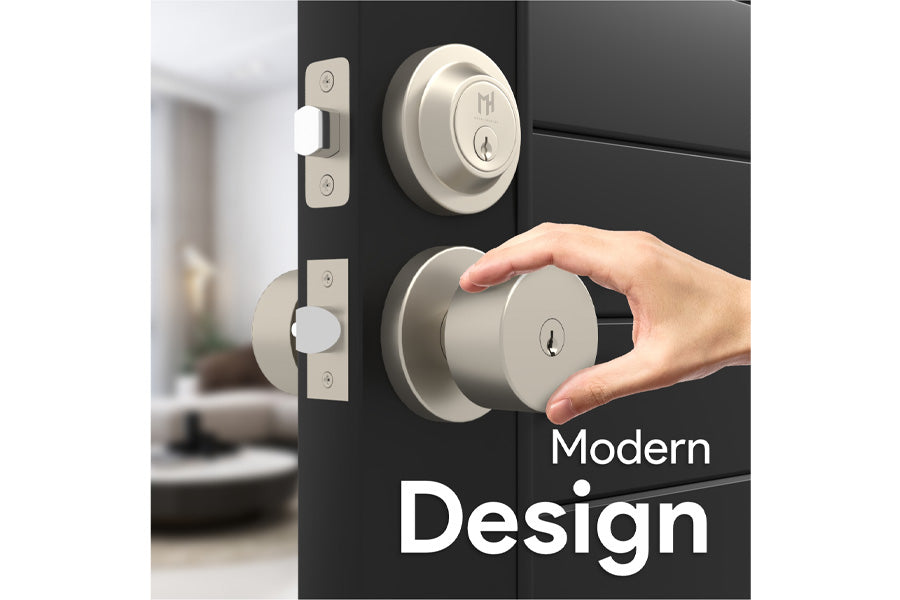

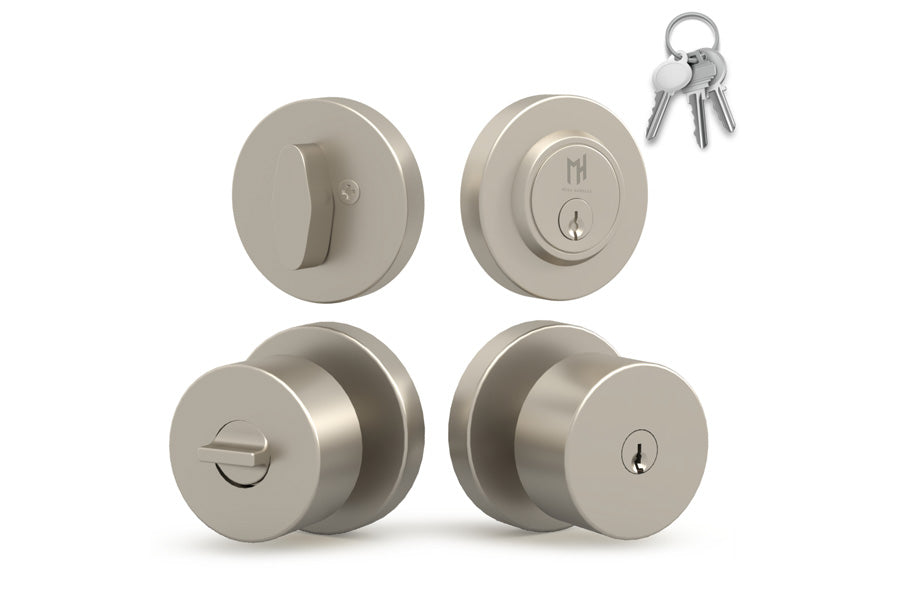

Mega Handles Buena Collection Entry Door Knob and Deadbolt Combo

The BUENA collection embodies peace and calm, offering a soothing presence. It features a round rosette paired with a circular knob, designed to evoke confidence and reliability. The collection’s spherical shapes are subtle, light, and warm, adding a pleasant and inviting charm to any room. By incorporating these rounded forms into both the rosette and knob, the tranquil qualities are enhanced, creating a serene and harmonious atmosphere.

Specifications

• Cross Bore:  2-1/8”
• Edge Bore:   1”
• Backset:   Fits 2-3/8” and 2-3/4”
• Latch:   2-3/8” and 2-3/4”
• Faceplate:   2” x 2-1/4”
• Screws:   304 Stainless Steel, Exposed
• Door Thickness:   1-3/8” - 1-3/4” standard doors
• Handing: Non-Handed
• ANSI/BHMA:  Exceeds ANSI/BHMA Grade 3 requirements
• Knob:  Zinc Alloy straight shape with 5” length
• Cylinder:  Solid Brass, 5- Pin, Re-key Function
• Reversible:  Fits Right and Left doors
• Rosette:  Zinc Alloy Round Shape with 2.2” Diameter
