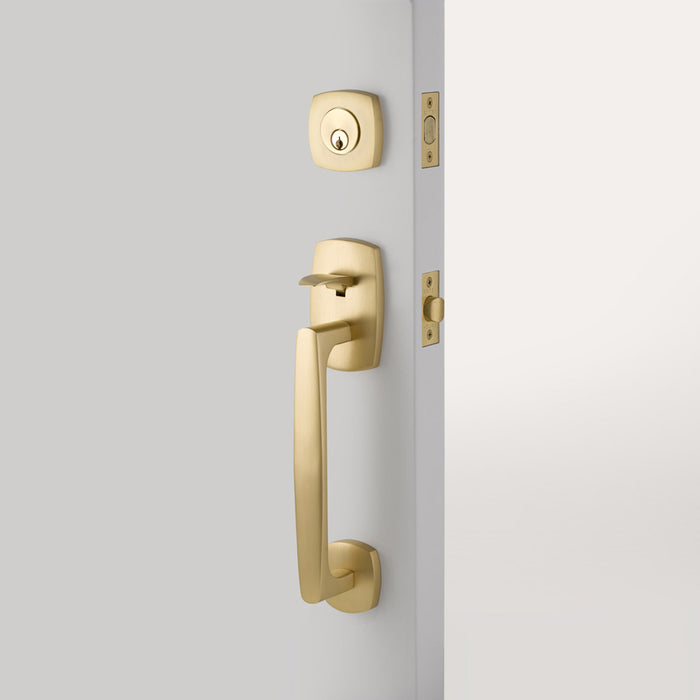

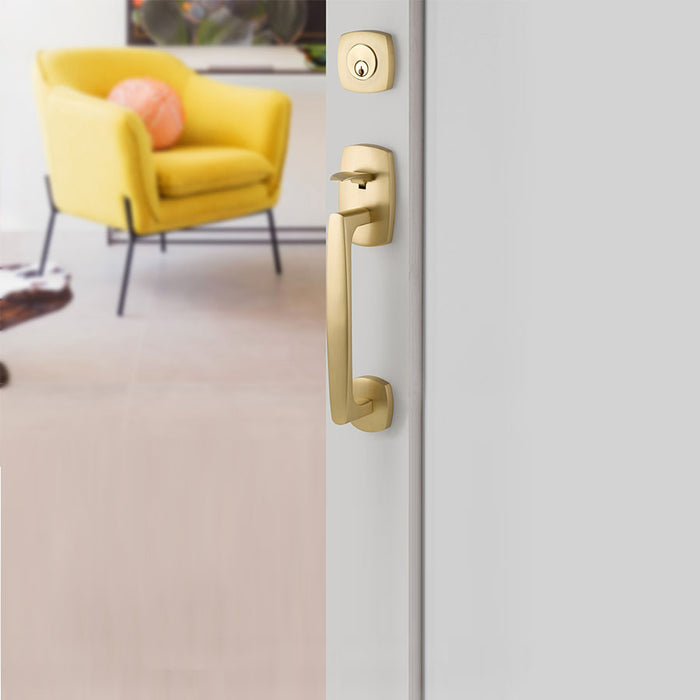

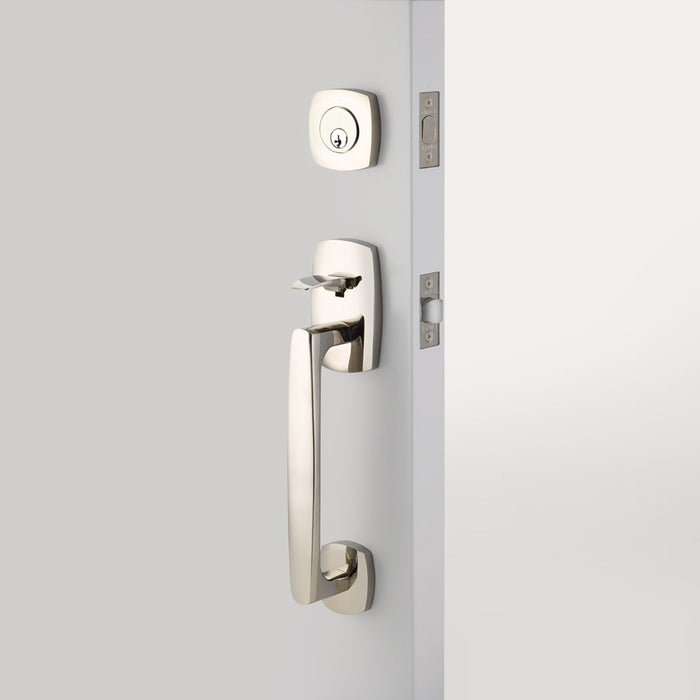

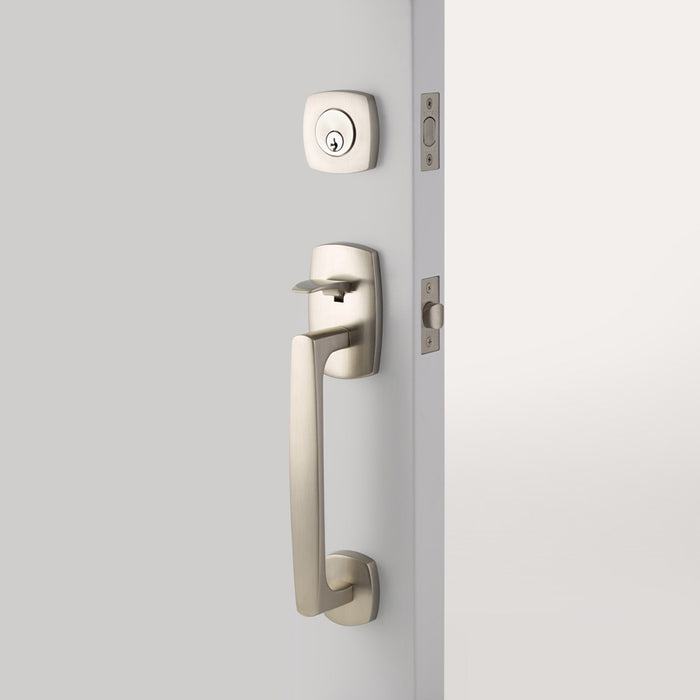

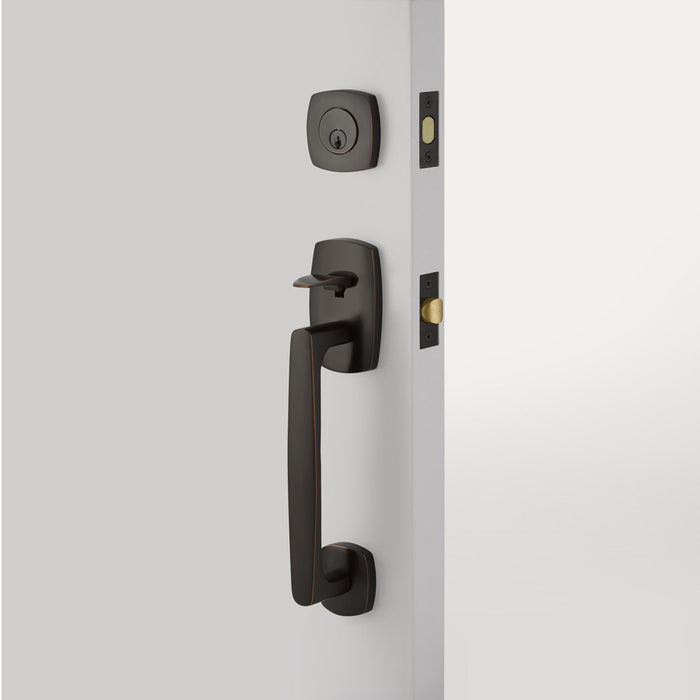

Emtek Handleset - Urban Modern Sectional Entry Set
by Emtek
Original price
$334.40
-
Original price
$334.40
Original price
$334.40
$334.40
-
$334.40
Current price
$334.40

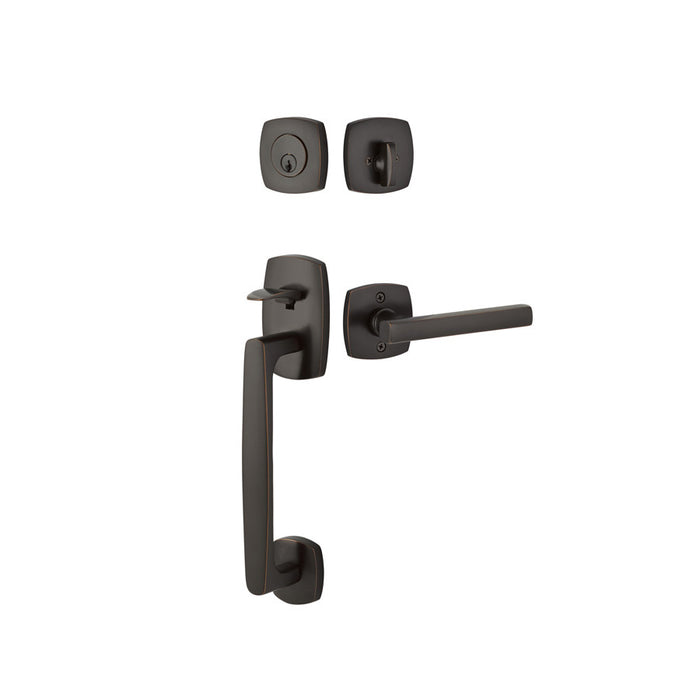

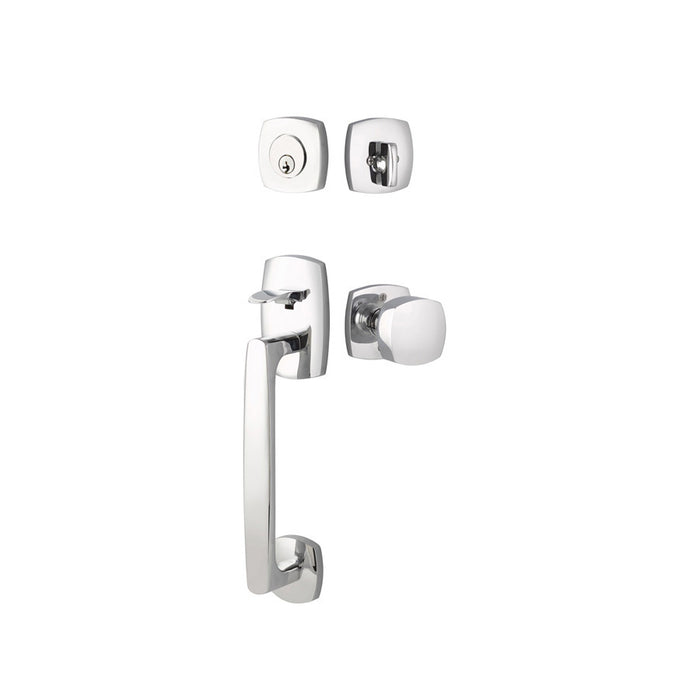

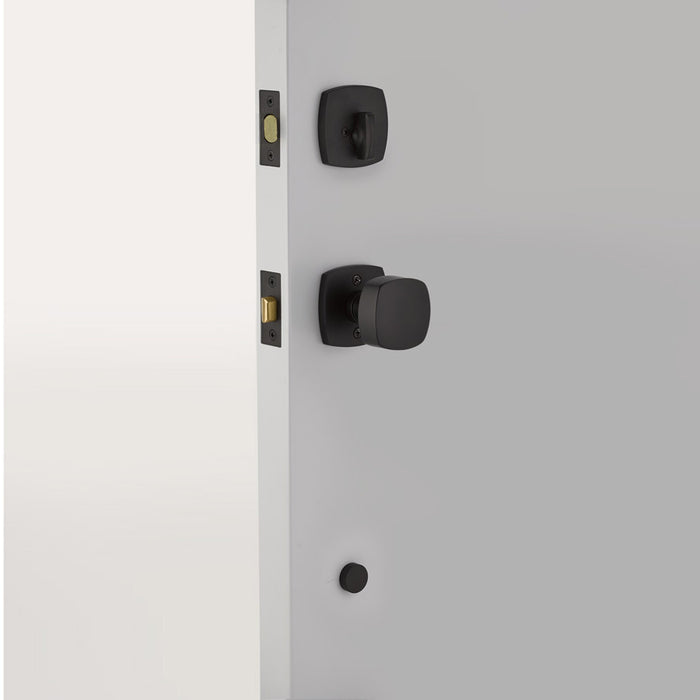

Urban Modern Sectional can be ordered with any Brass Knob or Lever for the inside trim. Sold as a complete set and includes Latch and Strike Plate.

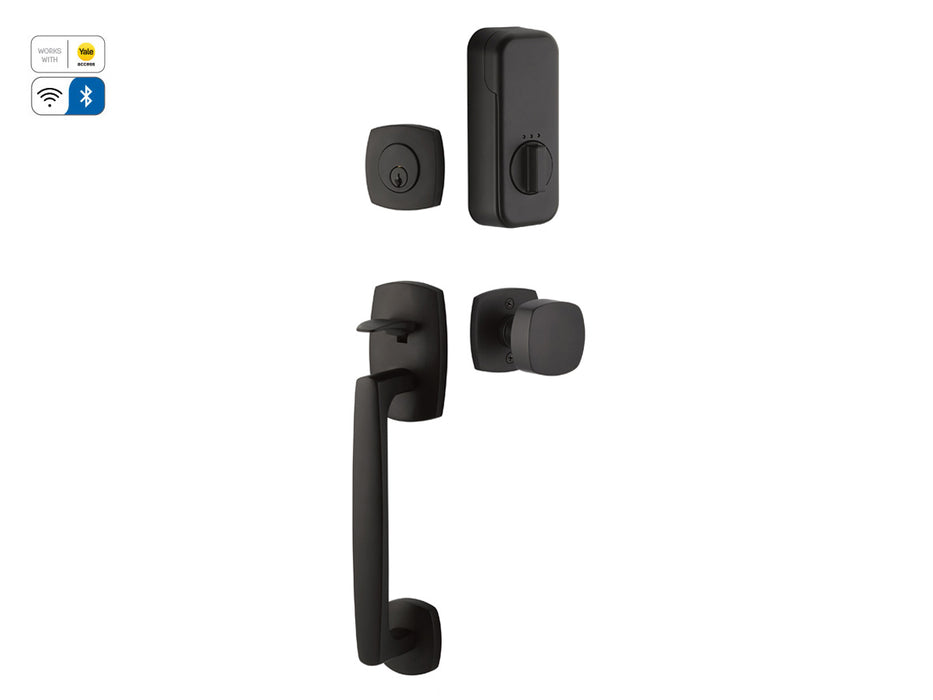

The EMPowered™ Motorized Smart Lock Upgrade - Works with Yale Access app is a non-obtrusive smart lock unit replacing the interior trim of our many decorative keyed entry sets, deadbolts, and sideplates, simply converting and upgrading a standard lock into a smart-enabled lock.
Dimensions and Measurements
| Backset: | 2-3/4", 2-3/8" |
| Center to Center: | 5.5 in |
| Cross Bore: | 2-1/8" |
| Door Thickness: | 1-3/4", 2-1/4" |
| Edge Bore: | 1" |
| Handle Projection: | 2.75 in. |
| Interior Trim Height: | 2.5 in |
| Interior Trim Width: | 2.5 in. |
| Overall Height: | 14.25 in. |
| Product Weight: | 4.5 lbs. |
| Trim Height: | 11.75 in. |
| Trim Width: | 1.75 in. |
Characteristics and Features
| Cylinder: | 5-Pin Schlage "C" |
| Function: | Keyed Entry |
| Handle Material: | Metal |
| Handle Style: | Grip, Knob, Lever |
| Interior Handle Style: | Knob, Lever |
| Keyway: | "C" |
| Lock Style: | Two Point |
| Mount: | Sectional |
| Cylinder Included: | Yes |
| Style/Theme: | Contemporary, Modern |
