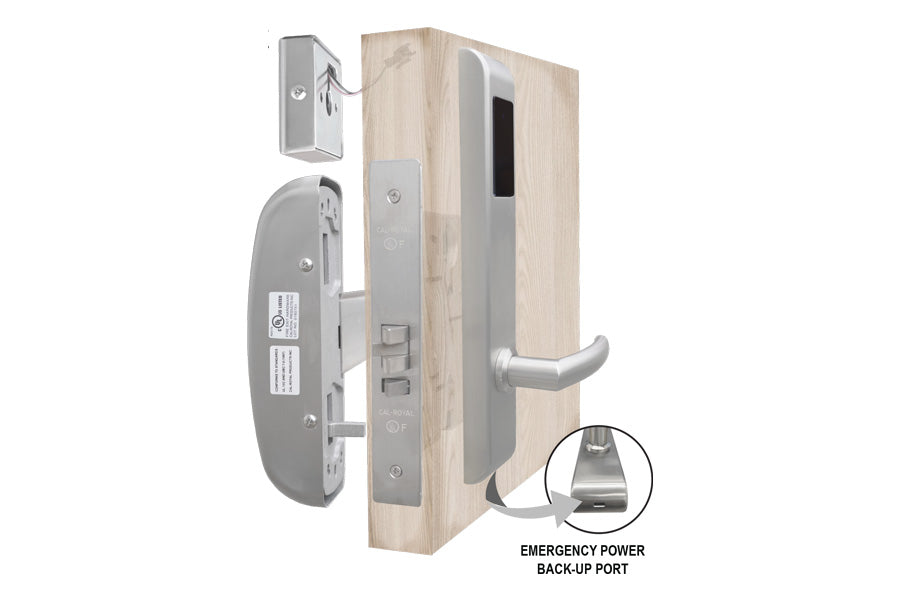

Cal-Royal MRCR98D Smart Digital Mortise Lock for Mortise Panic Bar

Features

• Apple and Android Compatible

• Can be managed or sync using the TUYO/TTLOCK app.

• Smart Phone connectivity; WIFI lock and unlock

• Keypad Anti-Tamper Lockout
• Key/Thumbturn Turning Detector
• Passage Mode
• Anti-peeping function
• Optional Auto Re-locking
• Restricted Access Right
• One-Time User PIN Code
• Low Battery Indicator
• Factory Default Passcode
• 3-Years Warranty

Specifications

• For offices, apartments, hotel/motels, residential, and commercial
• ANSI/BHMA A156.2, Grade 2
• Door Thickness:  1-1/2 to 2-3/8
• Backset:  2-3/4"
• Latch Faceplate:  8" x 1-1/8" Square Corner
• Clutch:  Clutch technology allows turning of lever without retracting
  latch. Thus prolonging the life of the lock by reducing stress on
  the spindle and other parts.  NO CYLINDER OVERRIDE.
• Function: MRCR98D The latch bolt is operated by a lever on the outside and a push bar on the inside. To retract the latch when turning the lever, the outside requires the RFID card to be tapped. The Smart Phone App can override the RFID card or key fob for access.
• Cylinder:  6-Pin "C"

• AAA x 4 Alkaline Batteries (Included in the box)
• Type C USB emergency cable
• Weather Resistant
• Compatibility: Compatible with N-MR7700 & N-MR9800 (Sold Separately).

Reference

• Technical Specification
