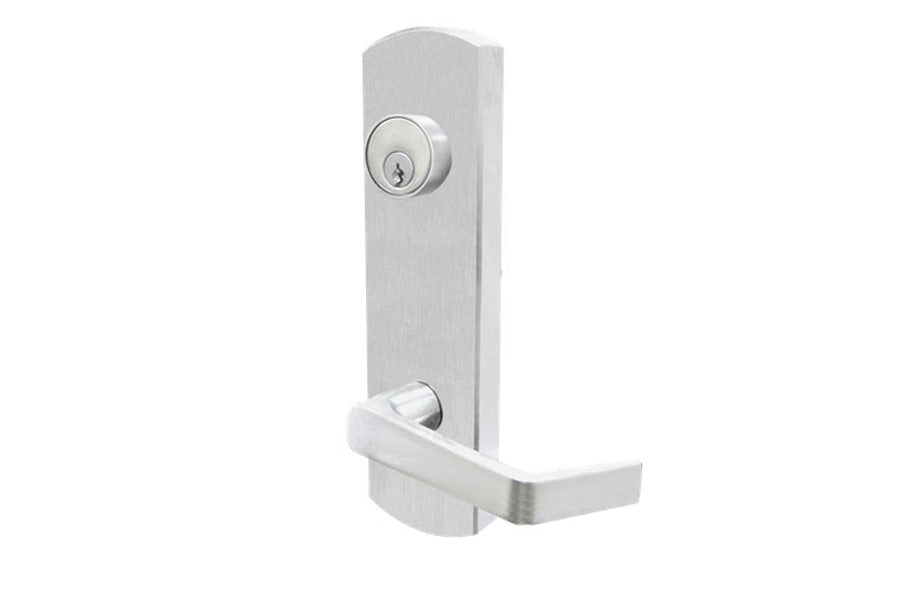

Cal-Royal Exit Device Rigid Commercial Lever Escutcheon Trim
by Cal-Royal
Original price
$151.50
-
Original price
$151.50
Original price
$151.50
$151.50
-
$151.50
Current price
$151.50
Specifications
- For Cal-Royal Cal-Royal A7700 and A9800 Series Exit Device
- Rigid, Non-Clutch Mechanism
- Double Heavy-Duty spring support to prevent sagging and enhance operation
- Grade1, thru-bolted design. Non-handed design
- Hardened steel heavy-duty tailpiece. Available for Fire and Non-Fire Rated rim and vertical rod exit device.
- Standard 6-Pin Schlage "C" Mortise Cylinder included
- Door Thickness - Standard 1 ¾”. For 2 ¼” thick door use additional Part # TAIL3

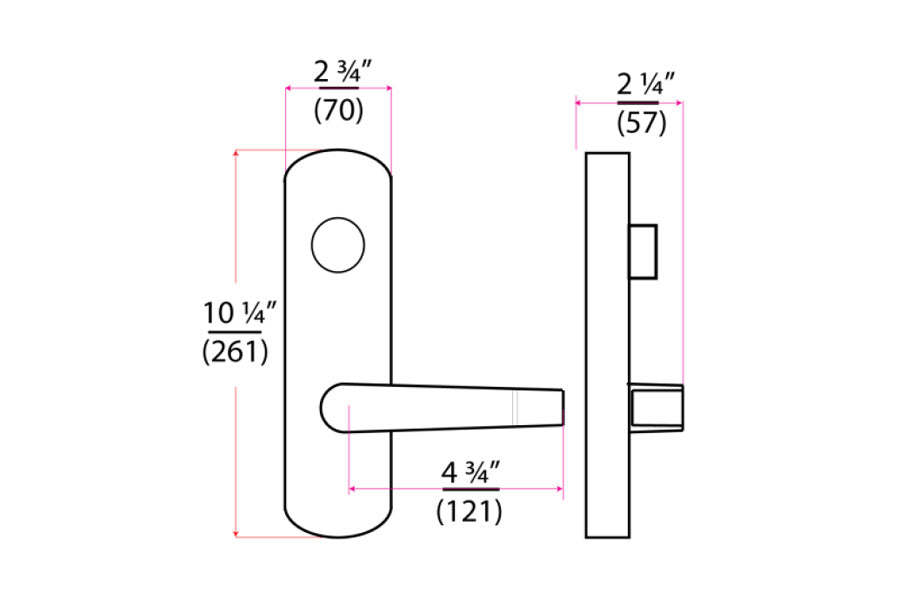

- Escutcheon Dimensions - 2 ¾” width x 10 ¼” length. Lever length: 4 ¾”. Fits and covers 2 ⅛” 161 cutout

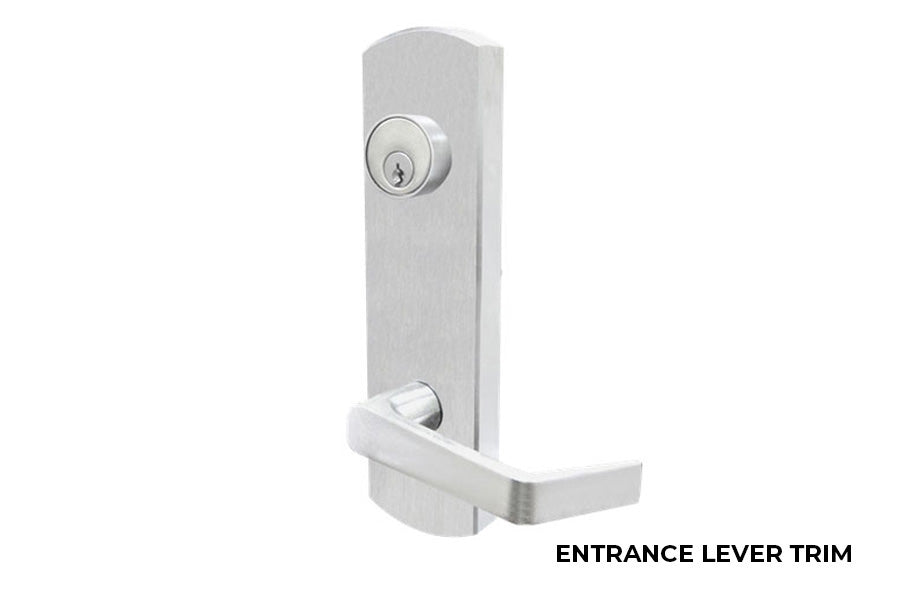

- ANSI Function 08 - Rigid Entrance, key locks or unlocks escutcheon trim - operates as classroom function
- ANSI Function 09 - Rigid Storeroom, Rigid Storeroom, key unlocks lever, lever retracts latch bolt, otherwise always locked

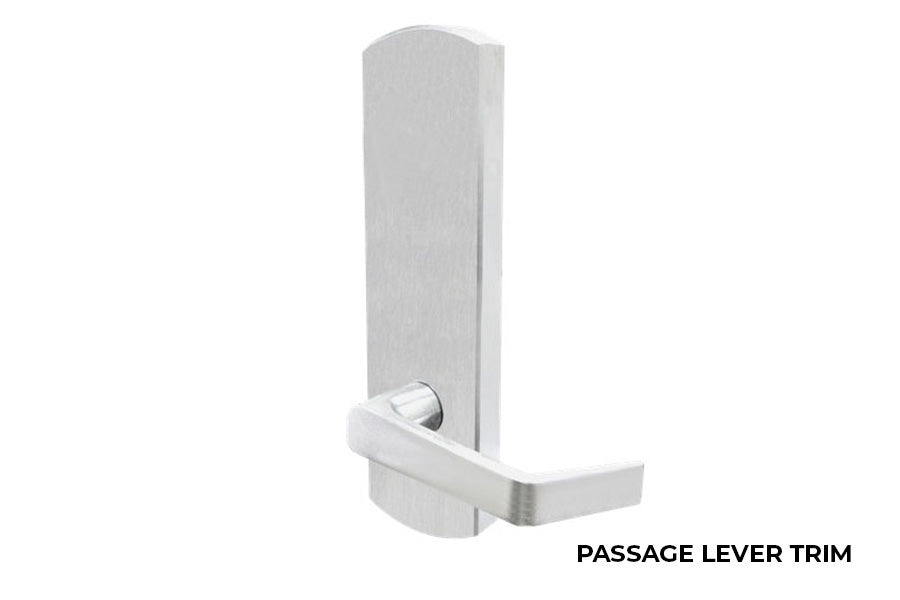

- ANSI Function 14 - Passage, trim always operable and free
- ANSI Function 02 - Dummy escutcheon trim
- KEYWAY - 6-Pin solid brass “C” keyway Mortise Cylinder standard. Optional: Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Sargent LA-LB-LC, Falcon/Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal HSK High Security Cylinders.
- (IC) INTERCHANGEABLE CORE - Interchangeable Core locks will accept compatible 6 or 7-Pin cores with BEST, FALCON and ARROW
- (ICSC) INTERCHANGEABLE CORE - Indicates function available with Schlage Full Size Format Interchangeable Core. Corbin, Sargent and Yale format also available.
