Cal-Royal Exit Device Trim Clutch Cylindrical Commercial Lever

Original price $111.95 - Original price $111.95
Original price
$111.95
$111.95 - $111.95
Current price $111.95



Features

  • For use with 7700, 9800, and 2200 Series Exit Devices
  • Non-Handed Clutch Style Lever - Schlage "C" Keyway
  • ANSI Grade 1
  • Meets ADA requirements - A117.1 Accessibility Code
  • Available for Fire and Non-Fire Rated Rim and Vertical Rod Exit Devices
  • Fits and covers 161 cutout

Specifications

  • ANSI Function 08 - Entrance, key locks or unlocks lever - operates as classroom function
  • ANSI Function 09 - Storeroom, key operates lever, otherwise always locked. Storeroom Lever Exit Device Trim in Aluminum is an accessory for an Exit Device. Entry by turning key, key does not unlock exit device. Key unlatches the exit device when turned so you can open the door from the outside.

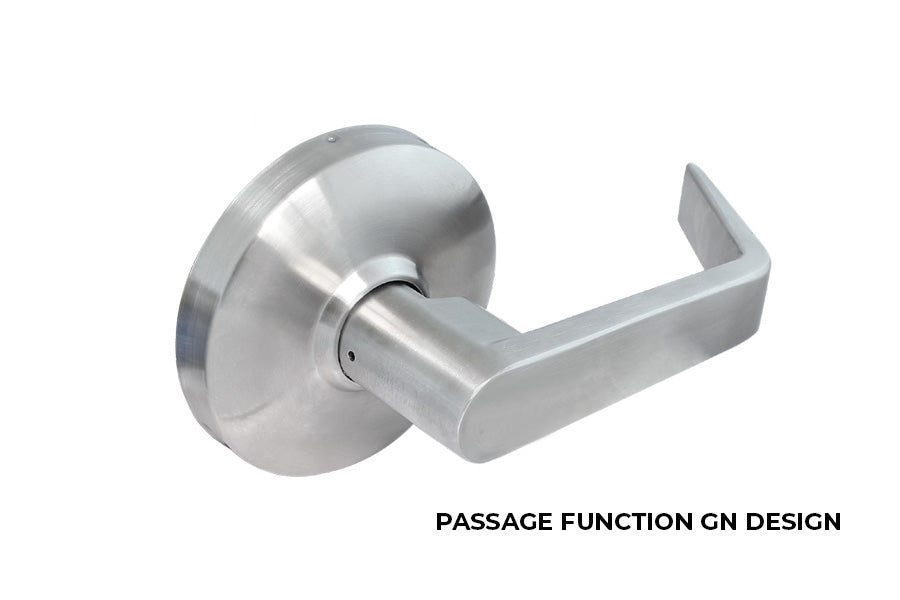

  • ANSI Function 14 - Passage, trim always operable and free
  • ANSI Function 02 - Dummy trim, one sided
  • For Doors - 1 ¾" thick standard optional 2 ¼” thick.

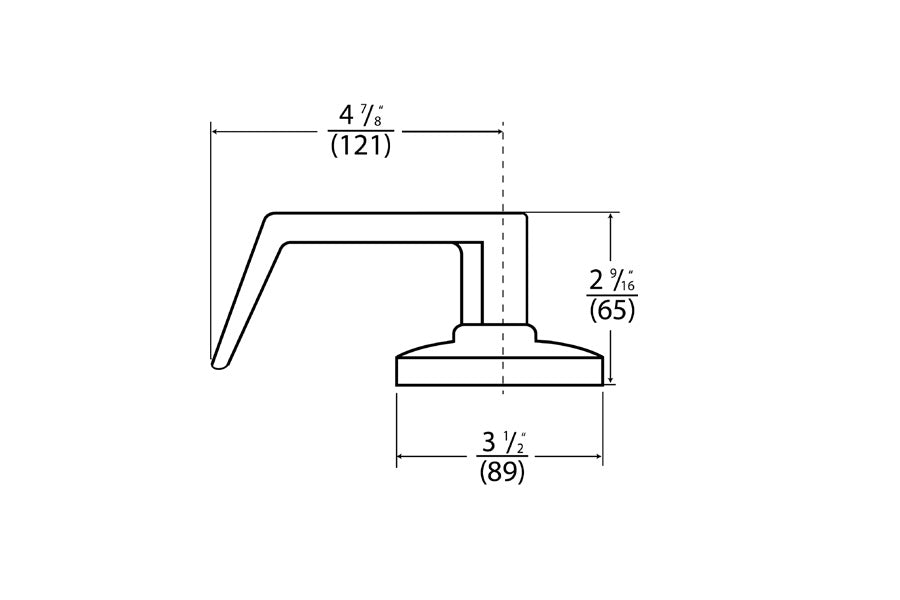

  • Rose Diameter - 3 ½”, lever length 4 ¾”.
  • Keyway - 6-Pin solid brass “C” keyway standard. Optional: Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Sargent LA-LB-LC, Falcon/Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal HSK High Security Cylinders.

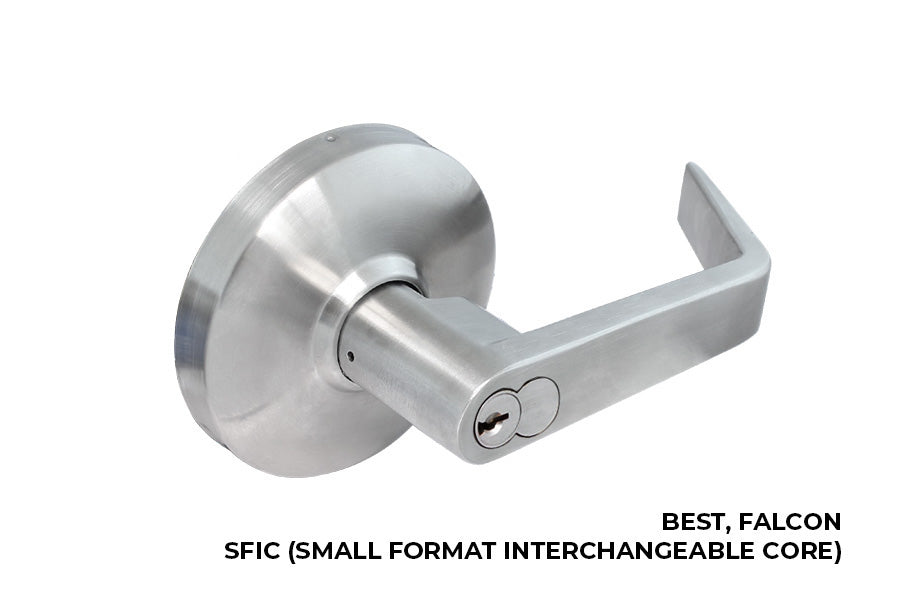

  • (IC) Small Format Interchangeable Core - Interchangeable Core locks will accept compatible 6 or 7-Pin cores with BEST, FALCON and ARROW.
  • (ICSC) Large Format Interchangeable Core - Indicates function available with SCHLAGE, CORBIN/RUSSWIN, SARGENT and YALE Full Size Format Interchangeable Core.
