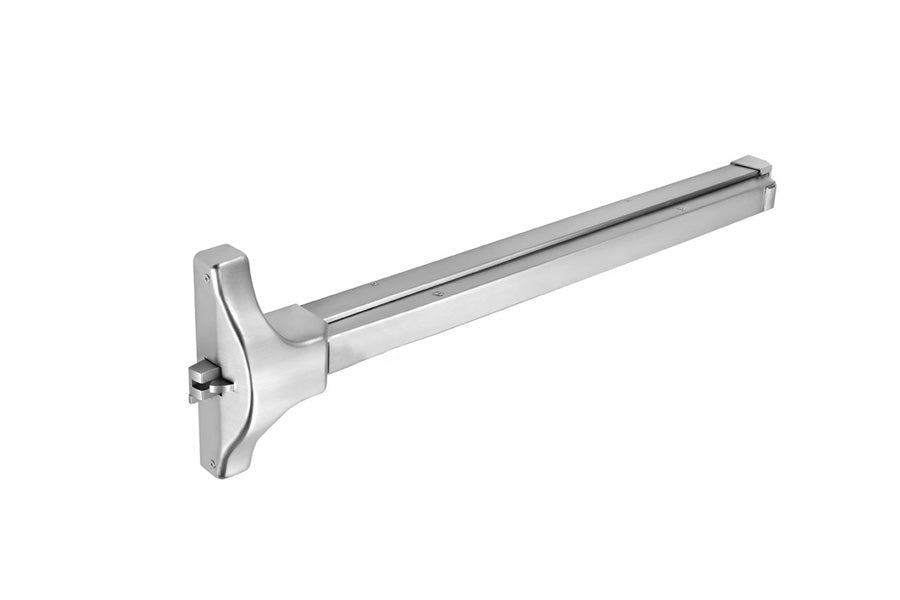

Accentra (Formerly Yale) 2150 Medium Duty SquareBolt Rim Exit Device

Features

• High-grade steel components offer superior protection against wear and tear
• Sturdy construction is ideal for meeting the rigors of demanding industry environments
• Works for many building projects, regardless of budget
• Strong and Durable to ensure long life and reliability


Specifications

• ANSI/BHMA:  Certified ANSI/BHMA A156.3, Grade 1
• UL/cUL:   Listed up to 3 hours, FVSR/FVSR7 – Panic hardware
• Door Thickness:  1-3/4" (44mm) standard
• Door Application:  1-3/4" Metal, wood or composite doors
• Minimum Stile Width:  4-1/2" (114mm)
• Projection:  2-1/2" active, 1-3/4" dogged
• Latchbolt:  3/4" (19mm) deadlocking stainless steel pullman-type
• Strike:  757F, 793 optional (double door application, panic only)
• Fastener:  Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware
• Dogging:  Half turn hex dogging standard
• Warranty:  3 years

References

• Technical Specifications
• Installation Guide
