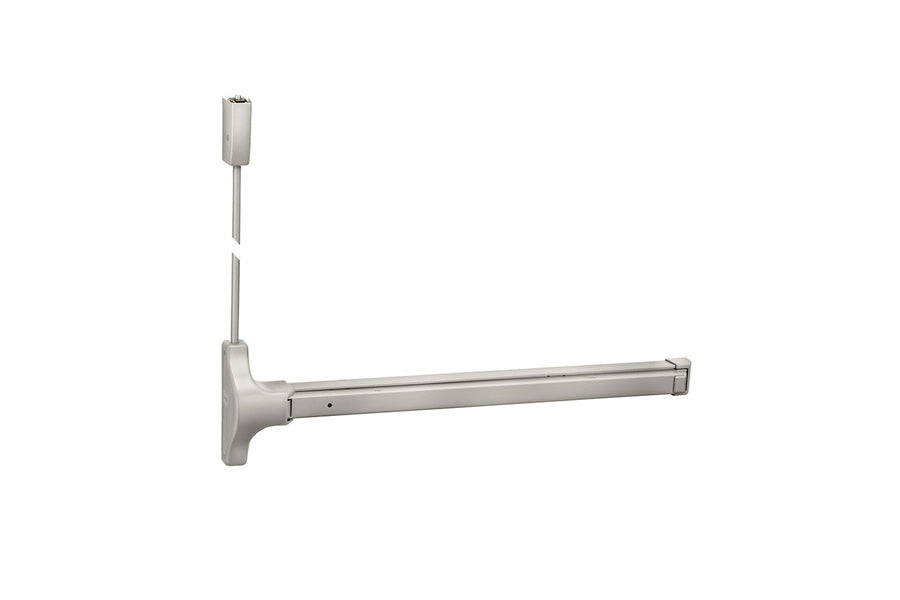

Accentra (Formerly Yale) 2170(F) LBR Surface Vertical Rod Exit Device, Less Bottom Rod
Product SKU
#2170F-LBR
Original price
$475.68
-
Original price
$475.68
Original price
$475.68
$475.68
-
$475.68
Current price
$475.68
Providing a higher standard of ANSI/BHMA Grade 1 performance, the 2100 Series Exit Device is the right choice for meeting the rigors of everyday use. The 2110(F) is a surface vertical rod exit device to be used on metal, wood, or composite pairs of doors where two-point latching is desired.
Features
- High-grade steel components offer superior protection against wear and tear
- Sturdy construction is ideal for meeting the rigors of demanding industry environments
- Works for many building projects, regardless of budget
-
Strong and Durable to ensure long life and reliability
Specifications
- ANSI/BHMA: Certified ANSI/BHMA A156.3, Grade 1
- UL/cUL Listed: 2170LBR - FVSR/FVSR7 (Panic hardware); 2170F90LBR - GXHX/GXHX7 – Fire exit hardware (F) (8′ x 10′ pairs, 1-1/2 hr.) (8′ x 8′ pairs, 3 hr.) – Heat-activated door bolt (Popper) – Used when bottom rod is omitted from fire exit devices (LBR)
- Device Type: Surface Vertical Rod, Less Bottom Rod
- Door Thickness: 1-3/4" (44mm) standard
- Door Application: 1-3/4" Metal, wood or composite doors
- Minimum Stile Width: 4-1/2" (114mm)
- Projection: 2-1/2" active, 1-3/4" dogged
- Latchbolt: 3/4" (19mm) deadlocking stainless steel pullman-type
- Strike: Top - Roller type 791. Bottom - Flush mounted 790
- Fastener: Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware
- Dogging: None
