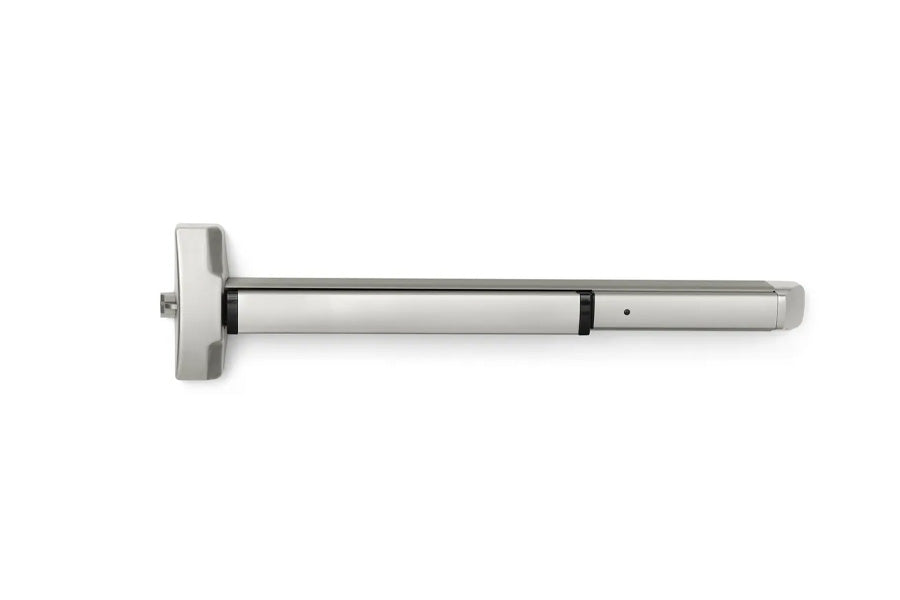

Accentra (Formerly Yale) 6150 Squarebolt Heavy Duty Panic Rim Exit Device

Accentra (Formerly Yale) 6150 Squarebolt Heavy Duty Panic Rim Exit Device

by Accentra Assa Abloy (Formerly Yale)
Product SKU #6150
$549.89 - $549.89
$549.89
$549.89 - $549.89
$549.89

With a full range of functions and options and ANSI Grade 1 certification, the 6000 Series Exit Devices provide the right security for your commercial facility.

Specifications

  • ANSI/BHMA:  Certified A156.3, Grade 1
  • UL/cUL:  Panic hardware
  • Door Thickness:  1-3/4" (44mm) standard
  • Stile Type:  Wide (Standard)
  • Minimum Stile Width:  4-1/2"
  • Projection:  3-1/4" (83mm) active, 2-1/2" (64mm) dogged
  • Latchbolt:  1" slide projection bolt with full 3/4"(projection)
  • Strike:  757F, 793 optional (double door application, panic only)
  • Fastener:  Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware
  • Dogging:  Half turn hex dogging standard
  • Warranty:  10-year limited
