Accentra (Formerly Yale) 6200ED Heavy Duty Narrow Stile Panic Rim Exit Device

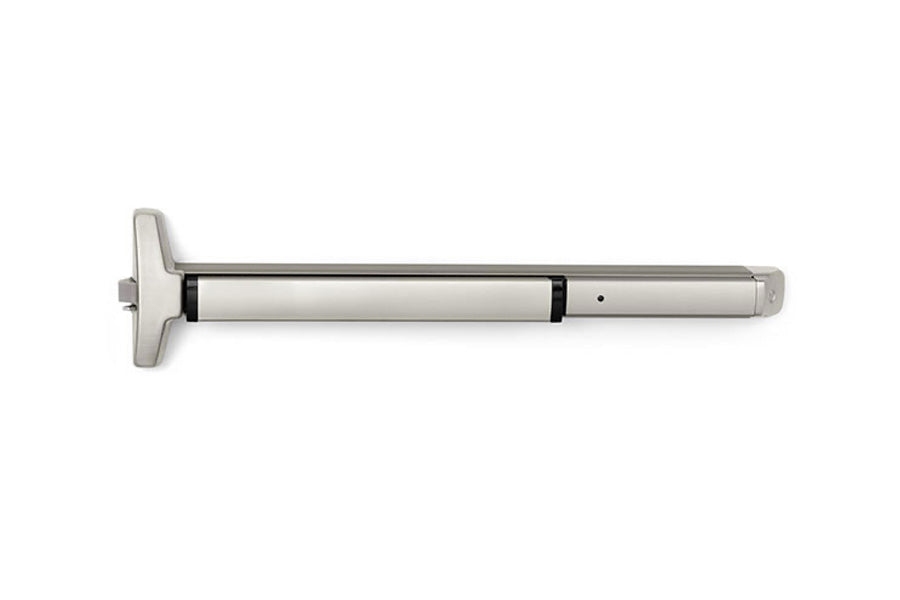

Accentra (Formerly Yale) 6200ED Heavy Duty Narrow Stile Panic Rim Exit Device

by Accentra Assa Abloy (Formerly Yale)
Product SKU #6200ED
$631.31 - $631.31
$631.31
$631.31 - $631.31
$631.31

With a full range of functions and options and ANSI Grade 1 certification, the 6000 Series Exit Devices provide the right security for your commercial facility.

Specifications

  • ANSI/BHMA:  Certified A156.3, Grade 1
  • UL/cUL:  Panic hardware
  • Door Thickness:  1-3/4" (44mm) standard
  • Stile Type:  Narrow
  • Minimum Stile Width:   Single door: 2-5/8" – Pair of doors: 3-1/8"
  • Projection:  3-1/4" (83mm) active, 2-1/2" (64mm) dogged
  • Latchbolt:  3/4" deadlocking stainless steel pullman-type
  • Strike:  759 standard; 793 optional for pairs, panic only
  • Fastener:  Machine screws or wood door screws standard for panic
  • Dogging:  Half turn hex dogging standard
  • Warranty:  10-year limited
