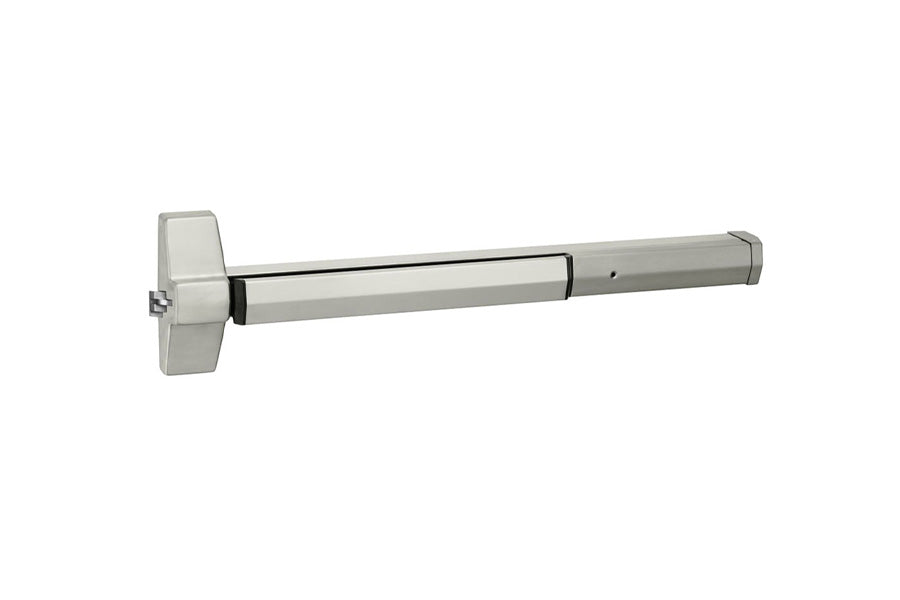

Accentra (Formerly Yale) 7150 Heavy Duty SquareBolt Rim Exit Device

Accentra (Formerly Yale) 7150 Heavy Duty SquareBolt Rim Exit Device

by Accentra Assa Abloy (Formerly Yale)
Product SKU #7150
$1,196.00 - $1,196.00
$1,196.00
$1,196.00 - $1,196.00
$1,196.00

The patented SquareBolt ® security deadbolt (Pat. no. 5,605,362) is designed for maximum holding power and provides an improved physical barrier over standard rim latchbolts.  Door rattling and shaking are resisted, therefore significantly reducing the threat of unauthorized entry.

Specifications

  • ANSI/BHMA:  Certified A156.3 Type 4, Grade 1
  • Fire Rating:  3-hours Fire Rated
  • Door Thickness:  1-3/4" (44mm) standard
  • Minimum Stile Width:  4-1/2"
  • Projections:  3-1/4" active, 2-3/4" dogged
  • Latchbolt:  1" (25mm) slide projection bolt with full 3/4" (19mm) projection
  • Strike:  757(F)WS
  • Fastener:  Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware
  • Trims:  500F series escutcheon trim, 510F series pull/thumbpiece trim, 480F series offset pull trim
  • Dogging:  Half turn hex dogging standard
  • Door Application:  1-3/4" Metal, wood or composite doors
  • Warranty:  5-year limited

References
