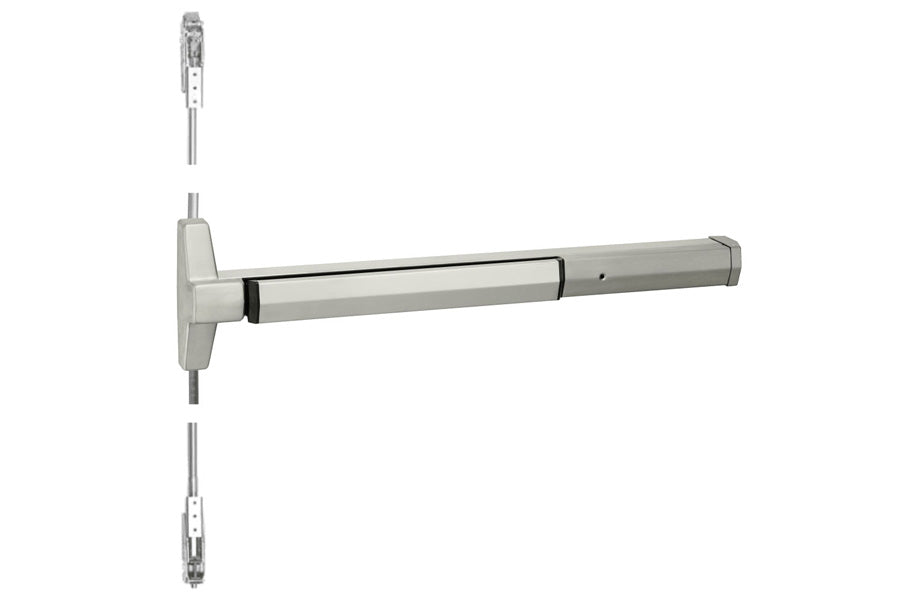

Accentra (Formerly Yale) 7220 Heavy Duty Narrow Stile Concealed Vertical Rod Exit Device
Product SKU
#7220
Original price
$1,847.54
-
Original price
$1,847.54
Original price
$1,847.54
$1,847.54
-
$1,847.54
Current price
$1,847.54
The 7200 is a narrow stile rim exit device compatible with the aesthetics and functional requirements of contemporary doors. The 7200 comes in varied finishes and can be combined with a variety of trims to match any desired style.
Features
- Designed for narrow stile doors
- Bottom deadbolt for secure latching
- Fully adjustable roller strike
- Handed. Field Reversible.
Applications
- Single swing doors narrow stile
- Metal and aluminum doors
- For panic-rated doors only
Specifications
- ANSI/BHMA: Certified A156.3 Type 6, Grade 1
- Device Type: Concealed Rod Device
- Stile Type: Narrow
- Door Thickness: 1-3/4" (44mm) standard
- Minimum Stile Width: 2" (51mm)
- Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged
- Latchbolt: 3/4" (19mm) deadlocking stainless steel pullman-type
- Strike: Top: Roller type 791. Bottom: Flush mounted 790
- Fastener: Machine screws standard for panic hardware
- Includes Trim: No
- Dogging Feature: Hex key dogging standard on non-fired-rated devices
