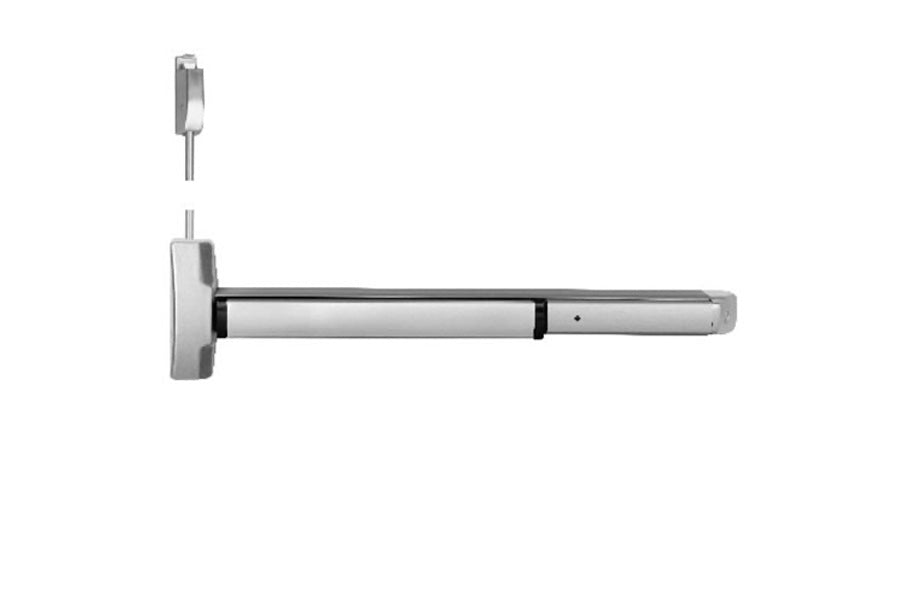

Accentra (Formerly Yale) 6170 LBR Surface Vertical Rod Exit Device, Less Bottom Rod

Accentra (Formerly Yale) 6170 LBR Surface Vertical Rod Exit Device, Less Bottom Rod

by Accentra Assa Abloy (Formerly Yale)
Product SKU #6170-LBR
$669.86 - $669.86
$669.86
$669.86 - $669.86
$669.86

With a full range of functions and options and ANSI Grade 1 certification, the 6000 Series Exit Devices provide the right security for your commercial facility.

Specifications

  • ANSI/BHMA:  Certified A156.3, Grade 1
  • Device Type:  LBR (Less Bottom Rod) Surface Vertical Rod
  • Door Thickness:  1-3/4" (44mm) standard
  • Stile Type:  Wide (Standard)
  • Minimum Stile Width:  4-1/2"
  • Projection:  3-1/4" (83mm) active, 2-1/2" (64mm) dogged
  • Latchbolt:  Top - 3/4" pullman style with auto deadlatching; Bottom - 5/8" deadbolt, held retracted during door swing
  • Strike:  Top - 626
  • Fastener:  Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware
  • Dogging:  Half turn hex dogging standard
  • Warranty:  10-year
