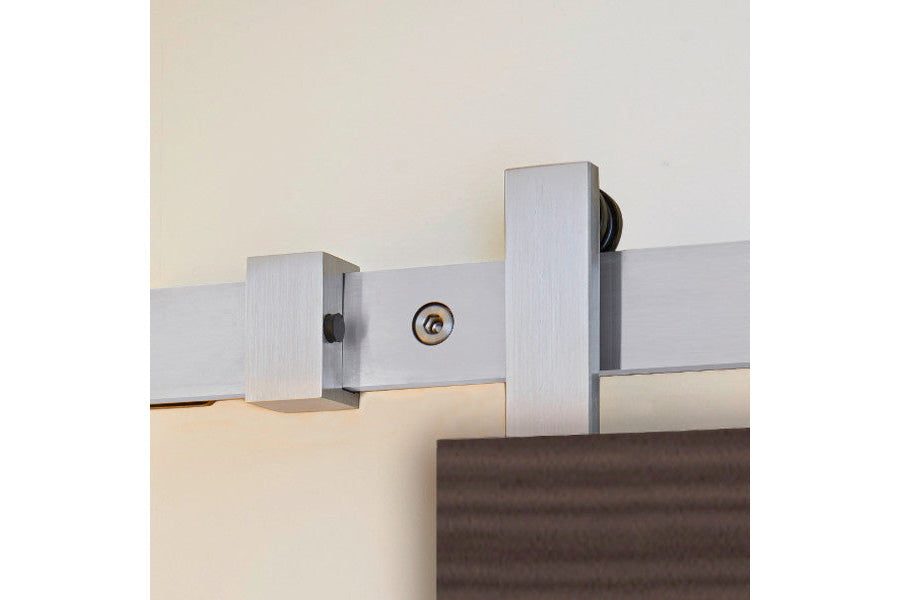

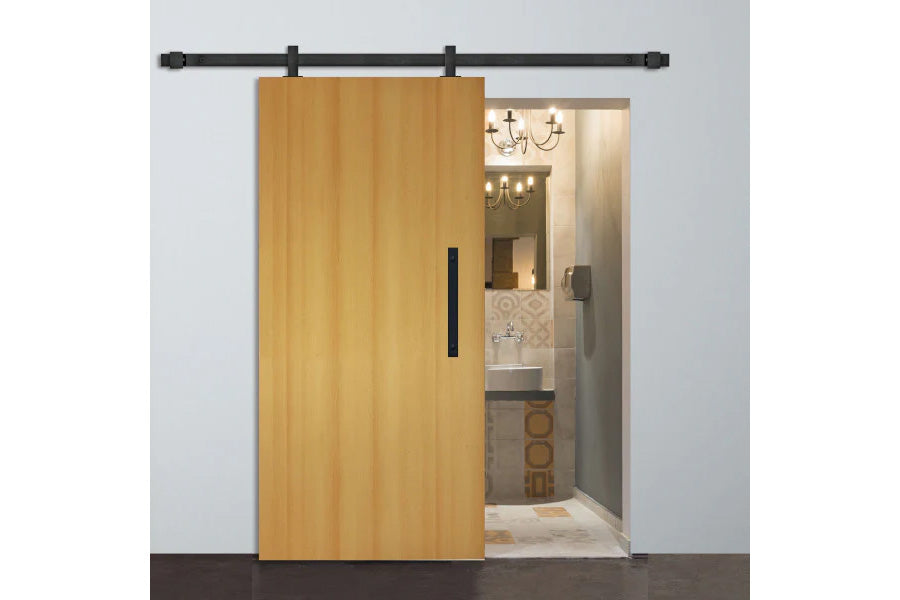

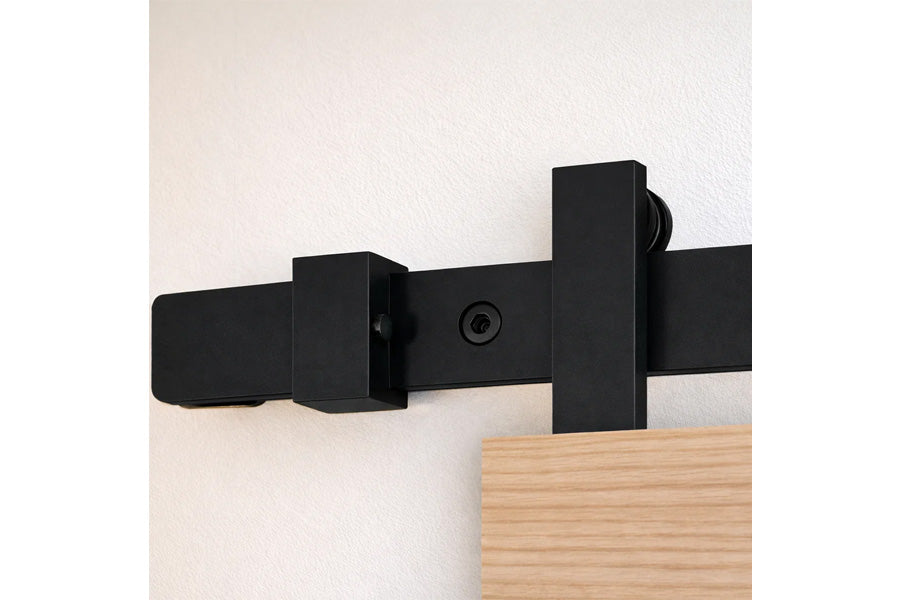

Beyerle Runway Barn Door Hardware Set for Wooden Doors, Top Mount

The Runway barn door hardware for wooden doors features a modern, angular design with concealed rollers that make the carriage appear to glide invisibly along the track. The clean geometric shape of the carriage and rail reflects current interior design trends – ideal for minimalist and contemporary spaces.

Features

• Single and Biparting Door Sets
• Click & Safe Anti-jump Device
• Made from Stainless Steel (AISI304L)
• Heavy Duty Polymer Roller
• Meets ANSI/BHMA A156.14-2013 Grade 1 Internal test
• Door Thickness:  1-7/16" - 1-3/4" (38-45mm)
• Door Weight:  176 lbs (80 kg)
• Finish Options:  Satin Stainless Steel and Stainless Steel Powdered in Black
• Single Door Set Includes:  1 track rail, 2 trolleys, 3 or 4 wall mounts, 2 door stoppers, 1 bottom guide, installation screws

Specifications

• Series:  Runway
• Area of Application:  Wooden doors
• Assembly:  Wall mounting
• Damping:  Soft close optionally available
• Door Leaf Thickness:  1-4/8" - 1-6/8" (38-45mm)
• Initial Friction: < 10NM
• Material:  Stainless Steel (1.4301)
• Number of Door Leaves:  1
• Setting Options:  Height Adjustable ± 1/8" (3mm)
• Standard:  Factory Test
• Surface:  Fine Tuning

References

1. Technical Specifications

2. Installation Instructions
