ANSI Standard A156.2 Grade 2 Standard Duty Tubular Leversets
For hotel / guest rooms, high-end apartments, condominiums, office buildings, and home offices.
Backset: 2-3/4" or 2-3/8" backset. Optional 90-Minute Fire Rated UL Listed Latch also available. Specify when ordering.
Latch Faceplate: 2-1/4" x 1" faceplate with plastic filler for 2-3/4" backset. 2-1/4" x 1" faceplate for 2-3/8" backset.
T-Strike standard. Optional ANSI and Full Lip strike available.
Door Ranges: 1 ⅜” to 1 ¾” thickness doors. 2” thickness available upon request.

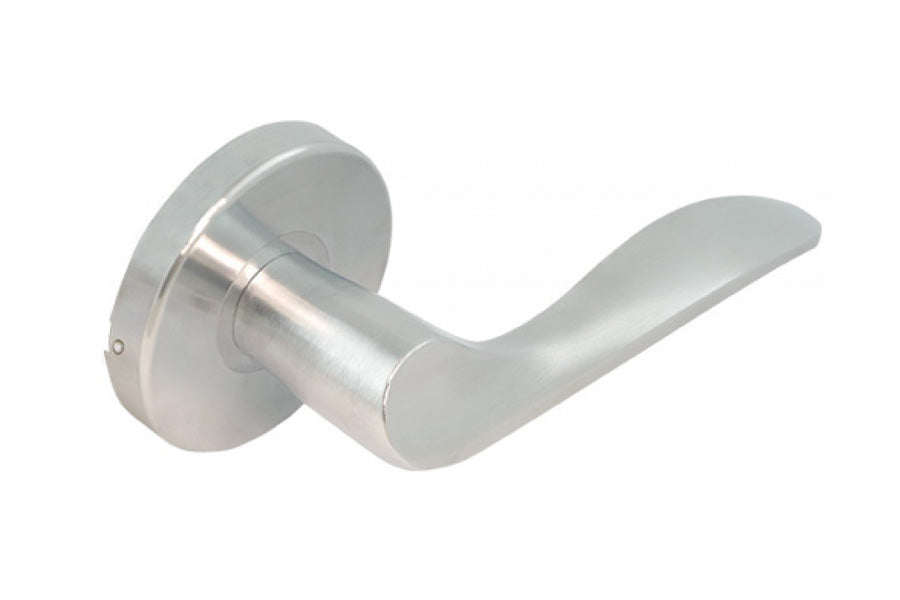

Handing: GERARD and VALENCIA lever designs are handed, field reversible. Must specify R (Right) or L (Left) when ordering.
Kick-Off feature on privacy function. Privacy function automatically unlocks if door is locked prior to closing. Inside lever always retracts latch. Outside lever is locked by locking pin from inside and unlocked by turning inside lever, closing door, or using emergency pin on outside lever.
Available with factory lead time. Please consult with our Customer Service Representative.
