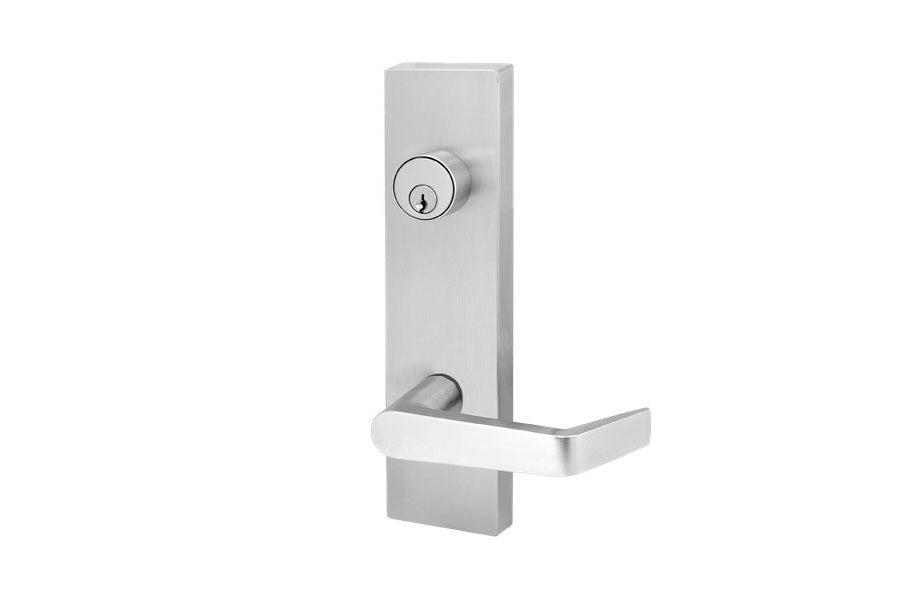

Heavy-Duty Clutch Lever Escutcheon
Cal-Royal
Specifications
- For use with Cal-Royal 7700 Series and 9800 Series Fire and Non-Fire Rated Rim and Vertical Rod Exit Devices
- High frequency abusive situation such as schools, hospital, industrial/institutional
- Clutch Mechanism
- Double Heavy-Duty spring support to prevent sagging and enhance operation
- Grade 1, thru-bolted design. Non-handed design
- All Stainless Steel heavy-duty tailpiece.
- Standard 6-Pin Schlage "C" Mortise Cylinder included
- Door Thickness - Standard 1 ¾” to 2”. For 2” or 2 ½” thick door use additional Part # TAIL9
-

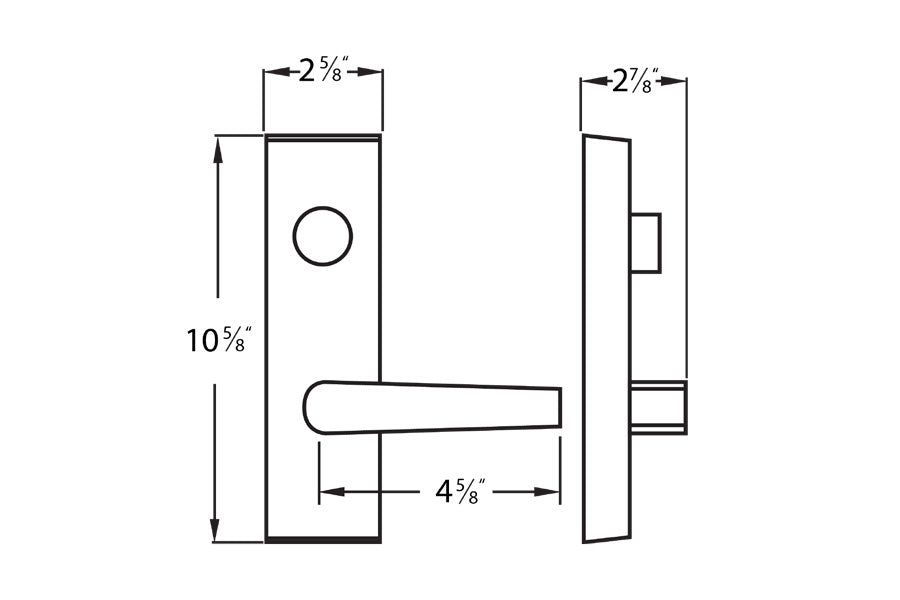

Escutcheon Dimensions - 2-5/8” width x 10-5/8” length. Lever length: 4 5/8”.

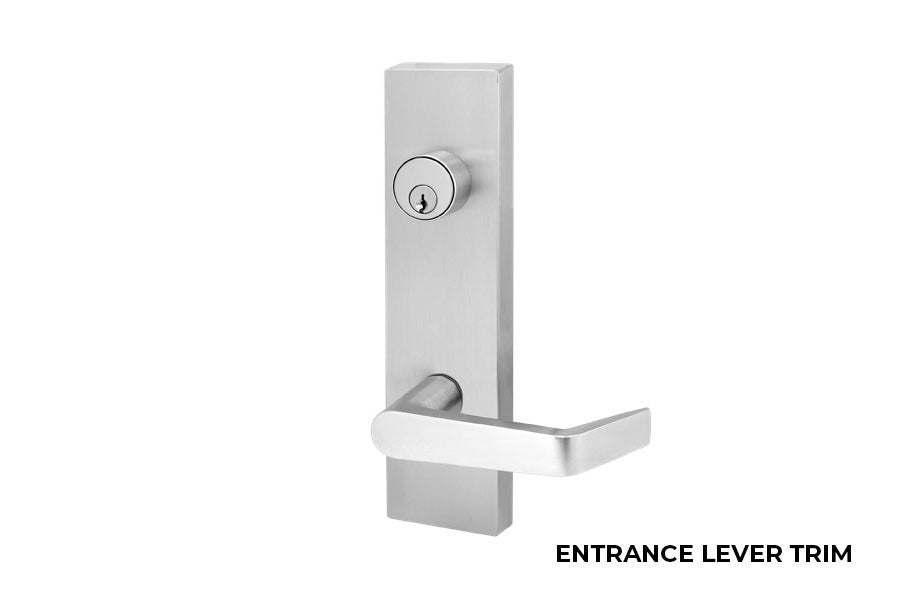

Fits and covers 2 ⅛” 161 cutout - ANSI Function 08 - Clutch Entrance, key locks or unlocks escutcheon trim - operates as classroom function
- ANSI Function 09 - Clutch Storeroom, key unlocks lever, lever retracts latch bolt, otherwise always locked.

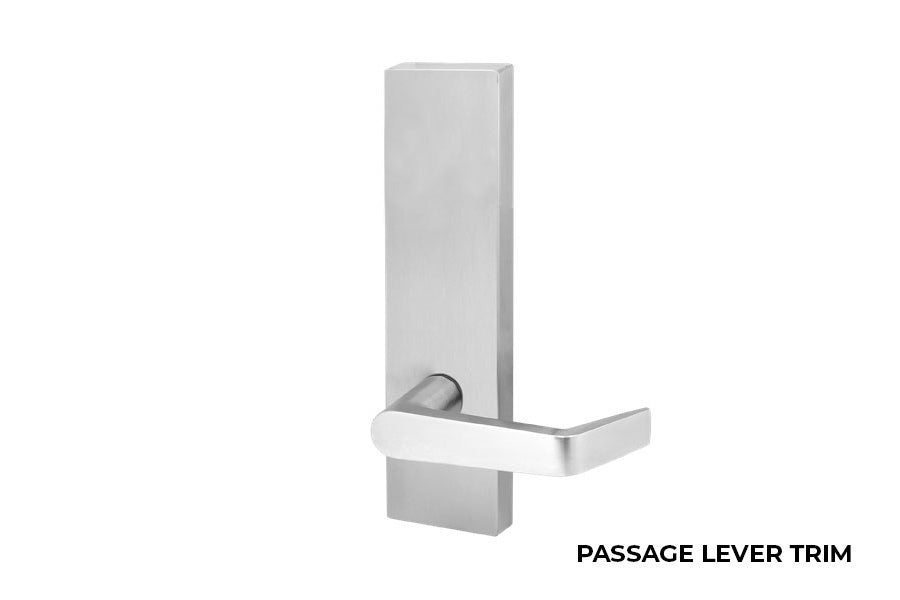

- ANSI Function 14 - Passage, trim always operable and free
- ANSI Function 02 - Dummy escutcheon trim
- KEYWAY - 6-Pin solid brass “C” keyway Mortise Cylinder standard. Optional: Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Sargent LA-LB-LC, Falcon/Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal HSK High Security Cylinders.
- (IC) INTERCHANGEABLE CORE - Interchangeable Core locks will accept compatible 6 or 7-Pin cores with BEST, FALCON and ARROW
- (ICSC) INTERCHANGEABLE CORE - Indicates function available with Schlage Full Size Format Interchangeable Core. Corbin, Sargent and Yale format also available.
