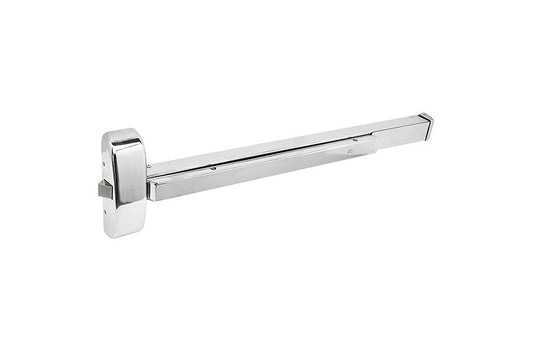

Cal-Royal Commercial Heavy Duty A9800EO / AF9800EO Panic Rim Exit Device

Features

• Heavy Duty - ANSI/BHMA Grade 1 Certified
• Non-handed and easily reversible
• Exit Only (Trim sold separately)
• Retrofits Sargent 8800 Series using 9800 Escutcheon Trim
• Americans with Disability Act (ADA) compliant.  5 lbs. opening force on ADA product only
• For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement
• Rail assemblies are heavy duty extruded aluminum body with Stainless Steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing
• Trims are thru-bolted for additional security

Specifications

• For Doors - 1 ¾" thick standard optional 2 ¼” thick. 4 ½" minimum stile width for single or double door application using standard 938 strike and pull or lever, thumbpiece, and escutcheon trim. 2-3/4" backset.
• Chassis - Non-Ferrous Alloy (Panic Grade)
• Cover - Non-Ferrous plated material. Covers stock hollow metal doors with 161 cut out.
• Mounting - Furnished with wood and machine screws. Available thru-bolts on request.
• End Cap - Brass, Bronze, or Stainless Steel construction.
• Alarm - Available. Prefix NALRM before PART#.
• Hand - Non-handed, center hub for 2 3/4" backset.
• Latch Bolt - Stainless steel ¾" throw with an anti-pick feature.
• Spring - Stainless steel throughout.
• ANSI Standard - A156.3, Grade 1.
• Rail Assembly - Heavy gauge extruded aluminum body with stainless steel push pad.
• Dogging Feature - Allen-type key furnished standard on non-fire labeled devices
• Mullion - Available.
• UL and ULc Listed - A7700 Series for panic. AF7700 Series for fire exit hardware for all types of 4’ x 8’ single doors and 8’ x 8’ double doors for up to 3-hour fire labeled installations.  Conforms to standards UL10c and UBC 7-2-1997 codes.
• Strike - 239 packed standard.
• Finish - Architectural plated finishes.
• Electronic Functions - (ELR) Electrical Latch Retraction and RX & LX Signal Switch available
• Anti-Microbial Coating - Available on US32D only. Use part # ANTB-EXIT
