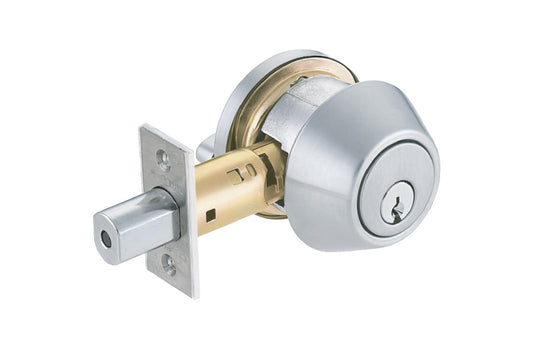

T300 Series Deadbolt

Cal-Royal

Price(USD): Regular price $54.00 Sale

Grade 2 Maximum Security Heavy-Duty Deadbolt for Commercial & Residential Applications

  • BHMA Certified Lifetime Warranty, GRADE 2
  • Conforms with ANSI A 156.2 Series 4000,
  • ADA (American Disability Act) Ergonomic Thumbturn
  • UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997
  • Solid brass 6-Pin “C” keyway cylinder, optional other keyways
  • Optional Interchangeable Core
  • One-piece steel housing for extra strength
  • Hurricane Approved Hardware. Florida Building Code FL13922
  • Meets the Buy American Act

Features

  • TRIM: Wrought Brass or Stainless Steel.
  • DOOR RANGES: Adjustable 1 ⅜” (35mm) to 1 ¾” (45mm) door thickness.
  • BACKSET: Adjustable 2 ⅜” or 2 ¾”.
  • DEADBOLT FACEPLATE: Latchbolt- Standard 2 ¼” X 1” packed with ⅛” plastic filler to convert 1” face plate to 1 ⅛” wide door preparations.
  • BORE DIAMETER: 1” for latch, 1 ½” or 2 ⅛” for lock housing.
  • STRIKE: 1 ⅛” X 2 ¾” square corner.
  • KEYWAYS: Standard 6-pin solid brass “C” keyway. Optional Schlage C-K composite with “E” keys, Schlage “E”, Russwin D1-2-3-4, Corbin 59/60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon/Weiser E, Kwikset, Arrow A, Yale GA and Yale 8.
  • Interchangeable Core: Interchangeable Core locks will accept compatible 6 or 7-Pin cores with Best, Falcon and Arrow. Prefix “IC” before part number. Available combinated or uncombinated. Temporary construction cores available. Factory keying with control key and masterkey available.



References

  1. Technical Specification
  2. Installation Guide
